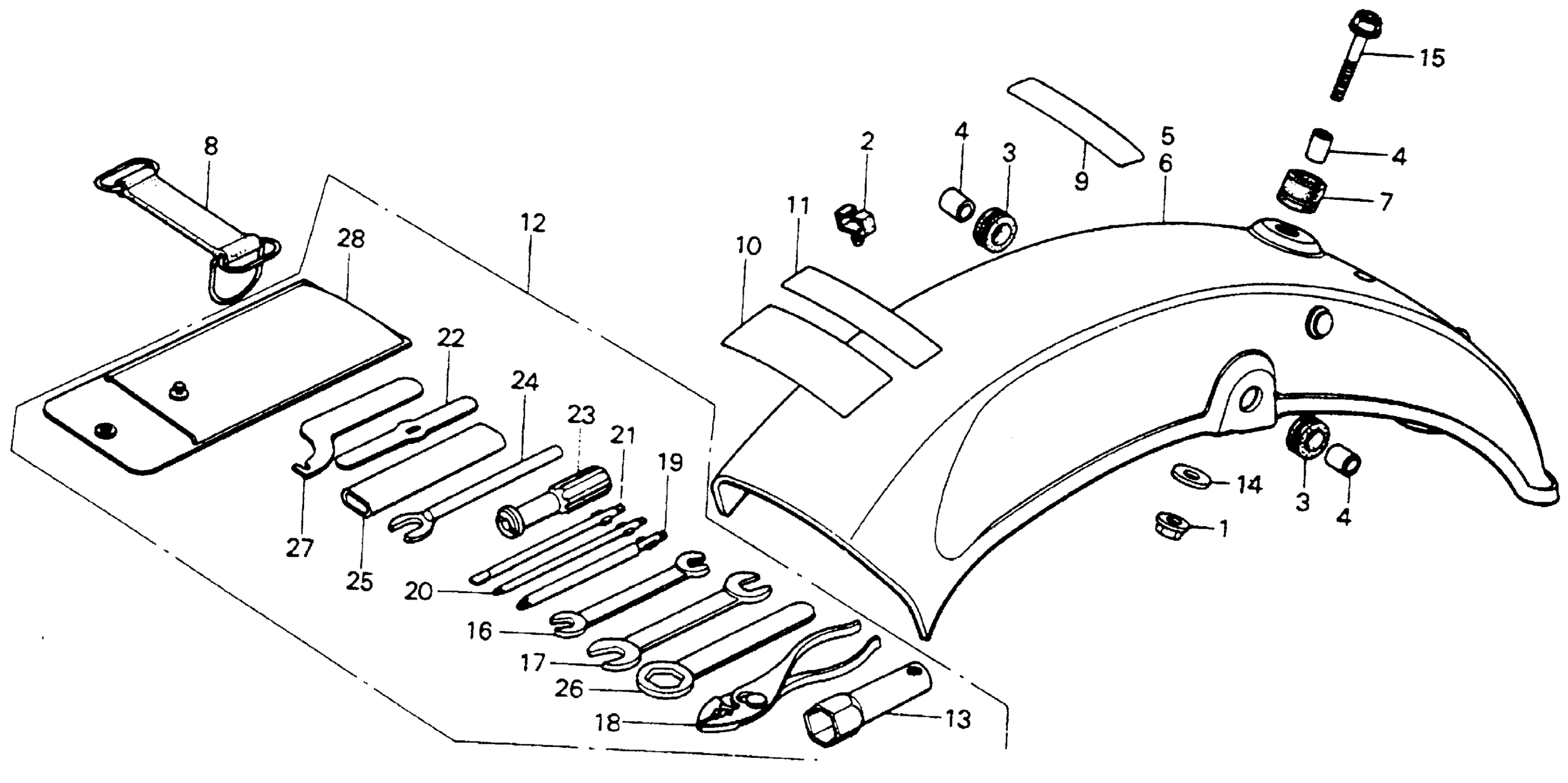

Honda MT125A MOTORCYCLE, JPN, VIN# MT125-1000001 REAR FENDER + TOOLS Diagram

#

Description
Price

1

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

1

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

1

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

1

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

1

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

1

NUT, HEX. (6MM)

94001-06200-0S

$1.49

1

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

2

GROMMET, CABLE

32985-300-000

$3.35

3

RUBBER, FR. FENDER SETTING

61103-357-000

$3.37

4

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

4

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

4

COLLAR, RR. FENDER

61105-428-000

Unavailable

5

FENDER, RR. *NH42MC* (CUSTOM SILVER) (NOT AVAILABLE)

80100-361-670NQ

Unavailable

8

BAND, TOOL BOX (NOT AVAILABLE)

83545-216-620

Unavailable

9

LABEL, TIRE CAUTION (NOT AVAILABLE)

87505-361-670

Unavailable

10

LABEL, AIR CLEANER CAUTION

87506-340-670

Unavailable

11

LABEL, OIL CAUTION (NOT AVAILABLE)

87570-358-670

Unavailable

12

TOOL SET (NOT AVAILABLE)

89010-361-000

Unavailable

13

WRENCH, BOX (P21) (NOT AVAILABLE)

89216-357-000

Unavailable

14

WASHER (6.5X20)

90545-292-000

$1.77

15

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

15

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

16

WRENCH (10X12) (OPEN END)

99001-10120

$4.69

17

WRENCH (14X17) (OPEN END)

99001-14170

$7.49

18

PLIERS (135) (KOWA) This part replaces 99002-13500.

89210-GBJ-J10

$13.57

19

SCREWDRIVER 1, PHILLIPS (NO.2)

99003-10000

$3.27

20

SCREWDRIVER 2, PHILLIPS (NO.3)

99003-20000

$3.27

21

SCREWDRIVER 3, STRAIGHT SLOT (NO.2)

99003-30000

$3.27

22

LEVER, TIRE

99003-40000

$1.49

23

GRIP

99003-50000

$3.27

24

BAR B, HANDLE

99005-02000

$2.52

25

HANDLE, EYE WRENCH (120MM)

99006-12000

$2.87

26

WRENCH, EYE (19MM)

99006-19000

$4.16

27

WRENCH, PIN (45MM) (OPEN END)

99007-45000

$3.40

28

BAG, TOOL

89101-ME5-670

Unavailable

28

BAG, TOOL This part replaces 99008-02000.

89101-ME5-670

Unavailable
