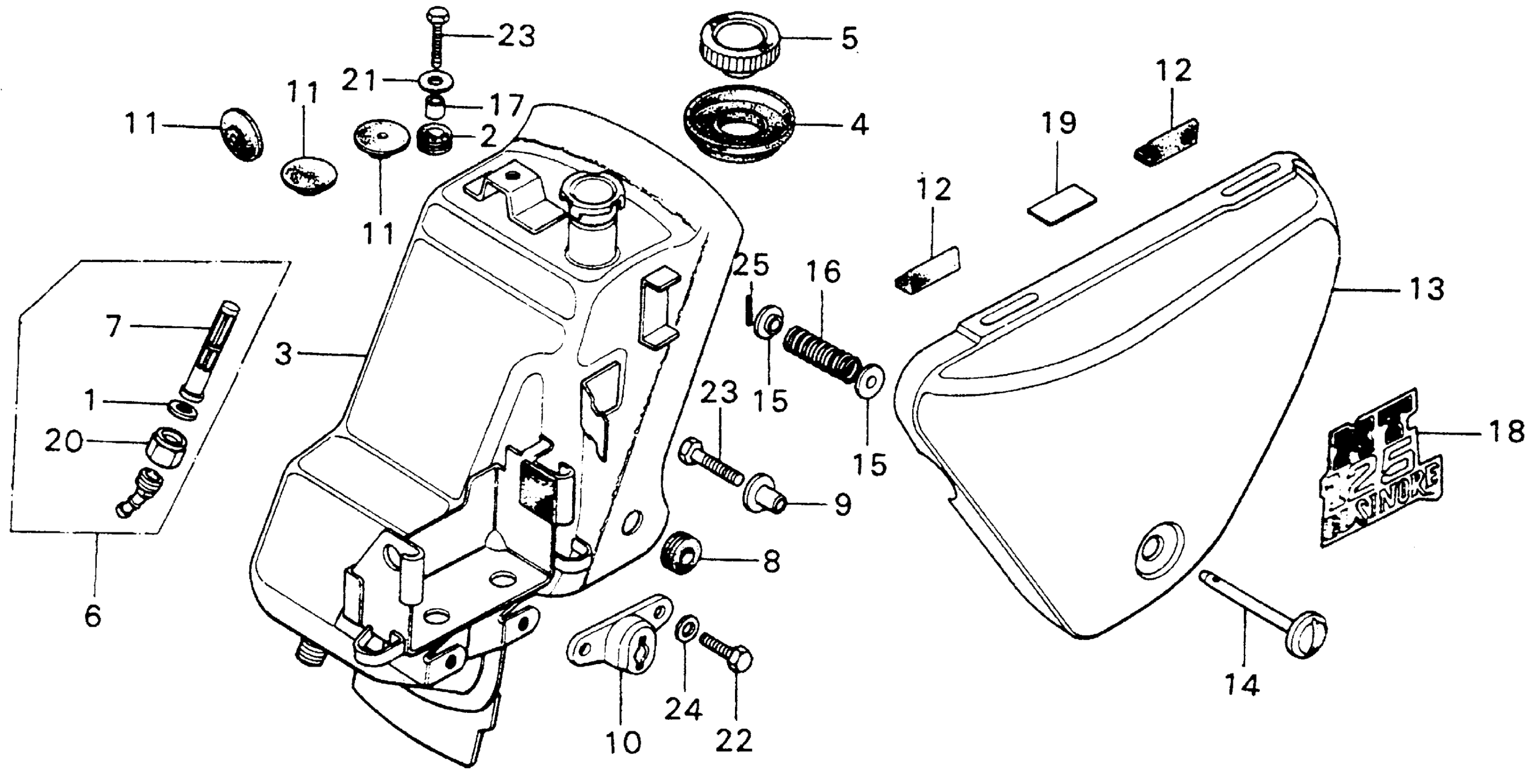

Honda MT125A MOTORCYCLE, JPN, VIN# MT125-1000001 OIL TANK + SIDE COVER Diagram

#

Description
Price

1

WASHER, PLAIN

16968-720-005

Unavailable

2

RUBBER, REGULATOR CUSHION This part replaces 31403-300-000.

31403-323-000

$3.38

2

RUBBER, REGULATOR CUSHION

31403-323-000

$3.38

3

TANK, OIL (NOT AVAILABLE)

55100-361-000

Unavailable

4

GASKET, OIL TANK (NOT AVAILABLE)

55101-358-000

Unavailable

5

CAP, OIL TANK

55110-361-310

Unavailable

6

STRAINER ASSY., OIL (NOT AVAILABLE)

55119-361-010

Unavailable

7

SCREEN, OIL STRAINER (NOT AVAILABLE)

55121-358-010

Unavailable

8

RUBBER, FR. FENDER SETTING

61103-357-000

$3.37

9

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

9

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

9

COLLAR, RR. FENDER

61105-428-000

Unavailable

10

HOLDER, R. SIDE COVER (LOWER) (NOT AVAILABLE)

83601-333-000

Unavailable

11

RUBBER, BATTERY BOX

83618-323-000

$2.47

12

GROMMET, SIDE COVER

83621-333-000

$5.80

13

COVER, SIDE *NH1* (BLACK) (NOT AVAILABLE)

83640-361-000B

Unavailable

14

PIN, SIDE COVER (NOT AVAILABLE)

83703-333-000

Unavailable

15

GUIDE, SPRING

83704-333-000

Unavailable

16

SPRING, SIDE COVER SET (NOT AVAILABLE)

83705-333-000

Unavailable

17

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

18

EMBLEM A, SIDE COVER (NOT AVAILABLE)

87128-361-770

Unavailable

19

LABEL, HELMET HOLDER

87511-323-670

$2.72

20

NUT, FUEL VALVE JOINT (NOT AVAILABLE)

90303-268-000

Unavailable

21

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

22

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

23

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

23

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

23

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

24

WASHER, PLAIN (6MM)

94101-06800

$1.49

25

PIN, SPRING (2X14) (NOT AVAILABLE)

94305-20143

Unavailable
