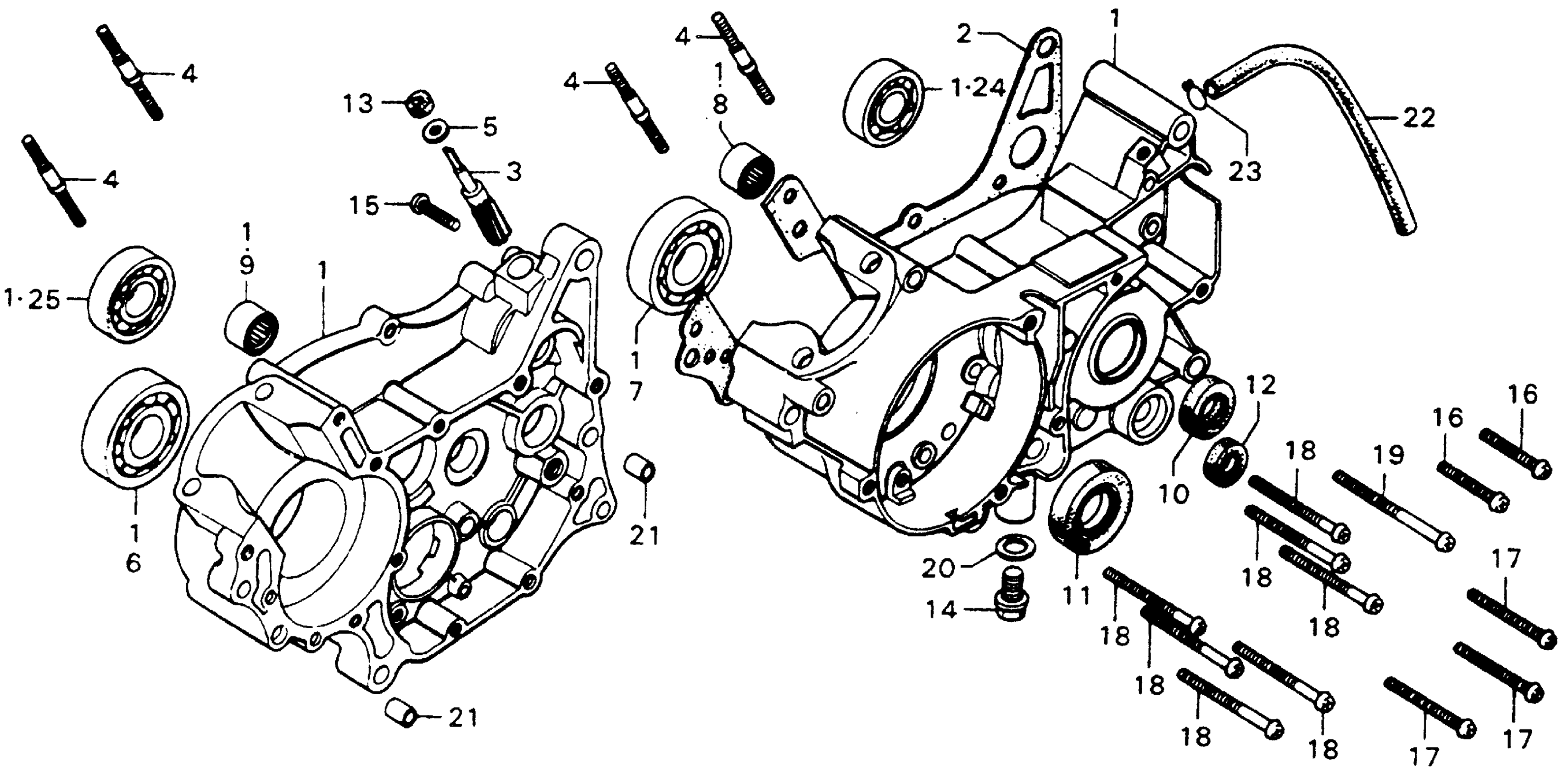

Honda MT125A MOTORCYCLE, JPN, VIN# MT125-1000001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET (NOT AVAILABLE)

11000-361-010

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-360-000.

11191-360-306

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-360-010.

11191-360-306

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-360-020.

11191-360-306

Unavailable

3

GEAR, TACHOMETER

12431-361-000

Unavailable

4

BOLT, CYLINDER STUD (NOT AVAILABLE)

90031-360-000

Unavailable

5

WASHER, TACHOMETER GEAR THRUST

90458-286-000

Unavailable

6

BEARING, RADIAL BALL (63/22) This part replaces 91001-MN8-911.

91002-KY4-901

$24.38

6

BEARING, RADIAL BALL (63/22) This part replaces 91001-360-004.

91002-KY4-901

$24.38

6

BEARING, RADIAL BALL (63/22)

91002-KY4-901

$24.38

7

BEARING, BALL (6305) (NACHI) This part replaces 91002-360-004.

91002-360-005

Unavailable

7

BEARING, BALL (6305) (NACHI)

91002-360-005

Unavailable

8

BEARING, NEEDLE (15X22) This part replaces 91014-360-006.

91106-KC6-003

Unavailable

8

BEARING, NEEDLE (15X22)

91106-KC6-003

Unavailable

9

BEARING, NEEDLE (15X23X12) (TOMUSON)

91016-360-006

Unavailable

10

OIL SEAL (20X32X6) (NOK)

91201-360-005

$4.87

11

OIL SEAL (25X45X7)

91204-360-003

Unavailable

12

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$3.01

13

OIL SEAL (4.8X14.5X4) This part replaces 91211-286-003.

91256-096-651

$4.85

13

OIL SEAL (4.8X14.5X4)

91256-096-651

$4.85

14

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

15

SCREW, PAN (5X16)

93500-05016-0G

$1.49

16

SCREW, PAN (6X32) This part replaces 93500-06032-07.

93500-06032-0G

Unavailable

17

SCREW, PAN (6X45) (NOT AVAILABLE)

93500-06045-0G

Unavailable

17

SCREW, PAN (6X45) (NOT AVAILABLE) This part replaces 93500-06045-07.

93500-06045-0G

Unavailable

18

SCREW, PAN (6X65) (SOURCE: VINTAGE PARTS INC.)

93500-06065-0G

Unavailable

18

SCREW, PAN (6X65) (SOURCE: VINTAGE PARTS INC.) This part replaces 93500-06065-07.

93500-06065-0G

Unavailable

19

SCREW, PAN (6X80)

93500-06080-0G

Unavailable

19

SCREW, PAN (6X80) This part replaces 93500-06080-07.

93500-06080-0G

Unavailable

20

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

21

PIN A, DOWEL (10X14) | Use from Engine SN 2000021

94301-10140

$2.28

21

PIN A, DOWEL (10X16) | Use up to Engine SN 2000020

94301-10160

$2.28

22

BULK HOSE, FUEL (5.5X3000) (5.5X260)

95001-55003-60M

$47.32

23

CLIP, TUBE (B10)

95002-02100

$1.90

24

BEARING, RADIAL BALL (6304)

96100-63040-00

$14.40

25

BEARING, RADIAL BALL (6304Z) This part replaces 96120-63040.

96120-63040-10

$22.40

25

BEARING, RADIAL BALL (6304Z) This part replaces 96120-63040-00.

96120-63040-10

$22.40

25

BEARING, RADIAL BALL (6304Z)

96120-63040-10

$22.40
