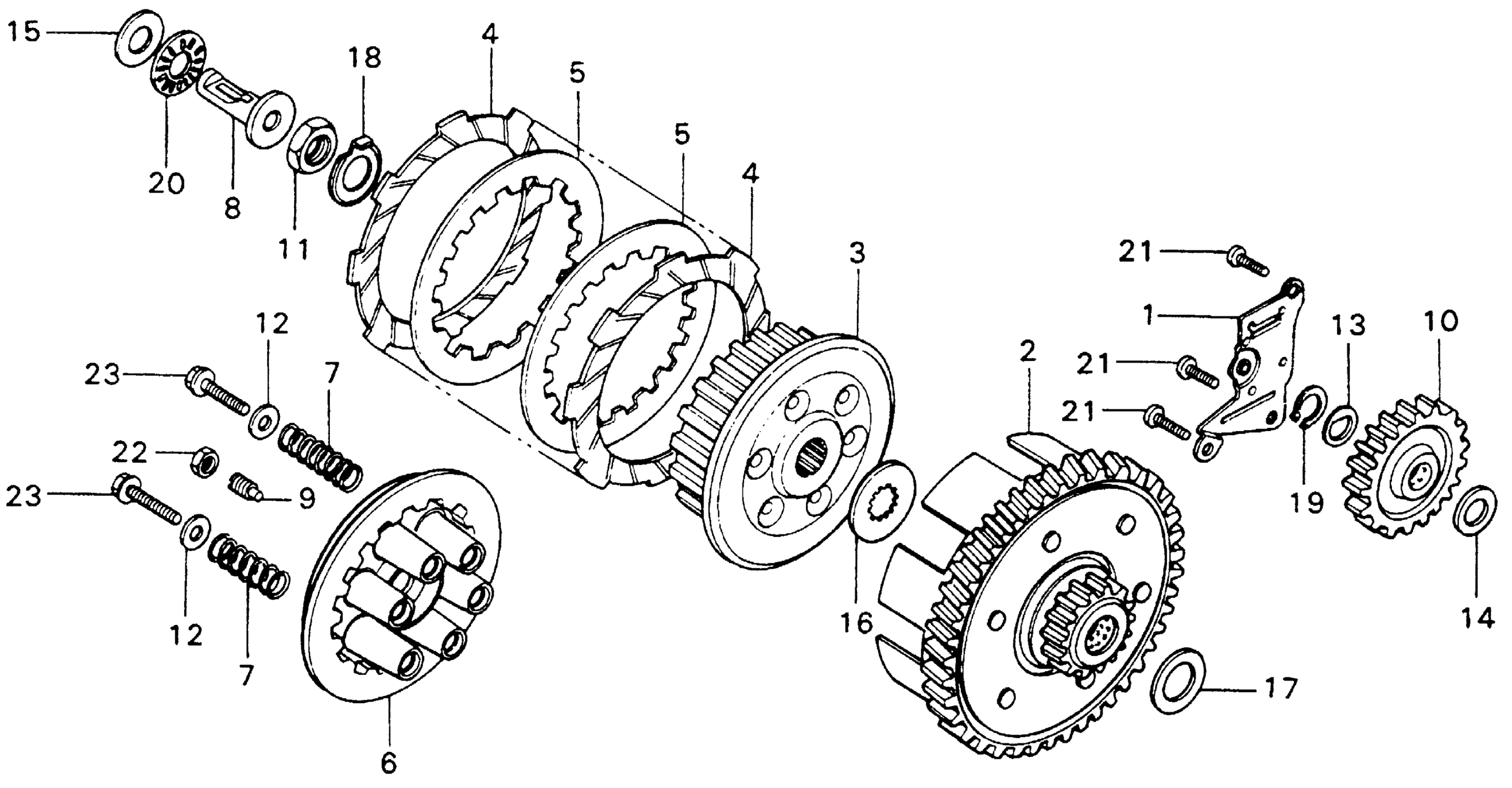

Honda MT125A MOTORCYCLE, JPN, VIN# MT125-1000001 CLUTCH Diagram

#

Description
Price

1

PLATE, OIL GUIDE (NOT AVAILABLE)

11108-361-010

Unavailable

2

CLUTCH (OUTER) (NOT AVAILABLE)

22100-361-020

Unavailable

3

CENTER, CLUTCH (NOT AVAILABLE) | Use up to Engine SN 2006519

22120-360-000

Unavailable

3

CLUTCH, CENTER (NOT AVAILABLE) | Use from Engine SN 2006520

22120-360-700

Unavailable

4

DISK, CLUTCH FRICTION This part replaces 22201-360-000.

22201-360-306

Unavailable

4

DISK, CLUTCH FRICTION

22201-360-306

Unavailable

5

PLATE, CLUTCH

22321-KE8-000

$12.71

5

PLATE, CLUTCH

22321-361-000

$13.48

6

PLATE, CLUTCH PRESSURE

22351-360-000

Unavailable

7

SPRING, CLUTCH (NOT AVAILABLE)

22401-361-000

Unavailable

8

ROD, LIFTER (NOT AVAILABLE)

22851-361-000

Unavailable

9

SCREW, CLUTCH ADJUSTING (NOT AVAILABLE)

22853-360-000

Unavailable

10

GEAR, STARTER IDLE (NOT AVAILABLE)

28230-360-000

$71.18

11

NUT (16MM) (NOT AVAILABLE)

90233-360-000

Unavailable

12

WASHER, GEARSHIFT DRUM STOPPER (NOT AVAILABLE)

90417-302-000

Unavailable

13

WASHER, THRUST (16MM) (NOT AVAILABLE)

90433-360-000

Unavailable

14

WASHER, THRUST (15MM)

90451-166-000

Unavailable

14

WASHER, THRUST (15MM) This part replaces 90454-360-000.

90451-166-000

Unavailable

15

WASHER, THRUST (12.5MM)

90459-360-000

$6.34

16

WASHER (20MM) (NOT AVAILABLE) | Use up to Engine SN 2006519

90463-360-000

Unavailable

16

WASHER, SPLINE (NOT AVAILABLE) | Use from Engine SN 2006520

90463-360-700

Unavailable

17

WASHER, THRUST (20MM) (NOT AVAILABLE)

90501-360-000

Unavailable

18

WASHER, LOCK (16MM) (NOT AVAILABLE)

90505-360-000

Unavailable

19

SET-RING (15MM) (NOT AVAILABLE)

90603-360-000

Unavailable

20

BEARING, THRUST (1226) (NOT AVAILABLE)

91015-360-000

Unavailable

21

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

21

SCREW, PAN (6X12)

93500-06012-0A

$1.49

21

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

22

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

22

NUT, HEX. (6MM)

94002-06000-0S

$1.49

23

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

23

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
