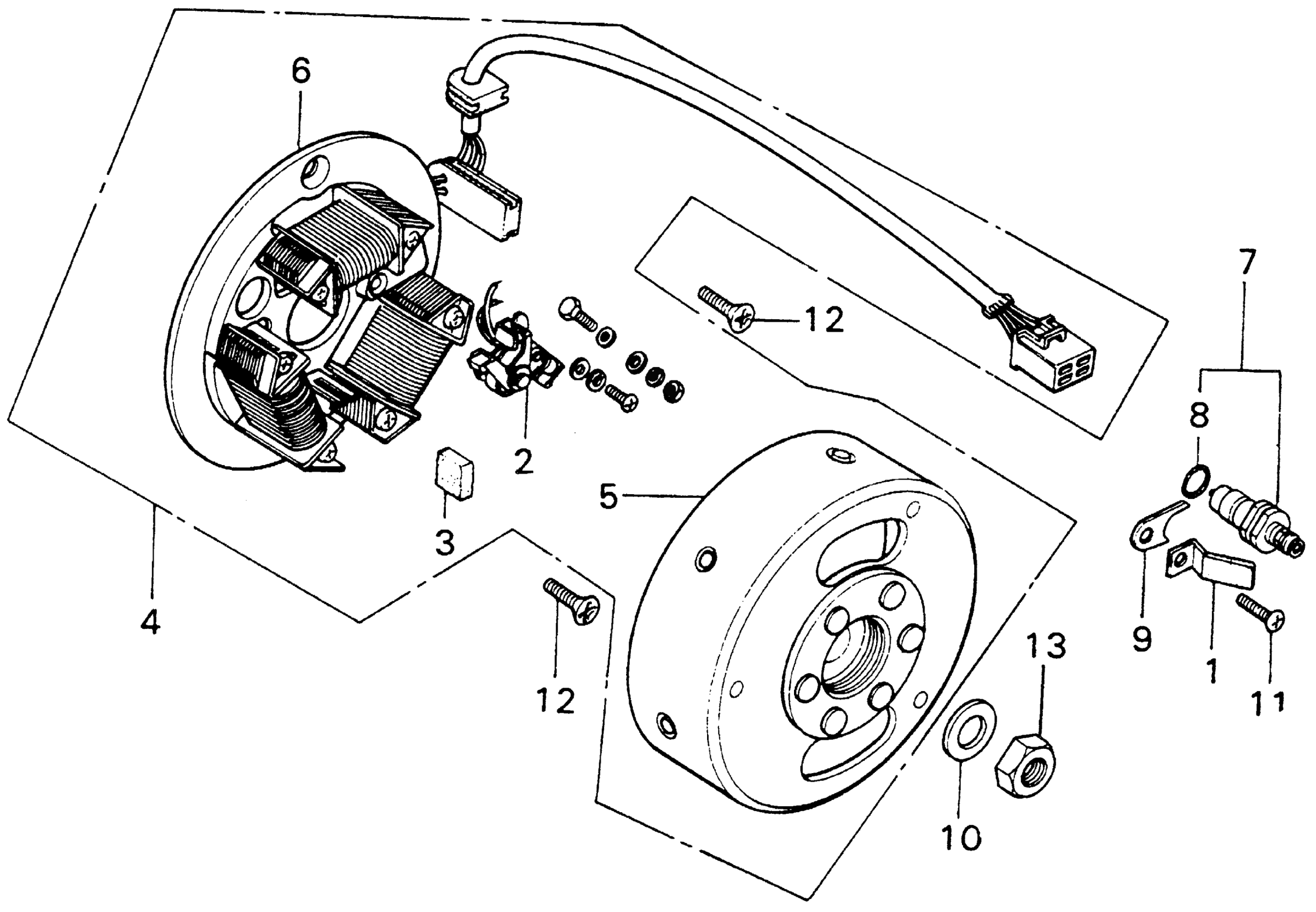

Honda MT125A MOTORCYCLE, JPN, VIN# MT125-1000001 ALTERNATOR Diagram

#

Description
Price

1

CLAMP, TUBE OVERFLOW (NOT AVAILABLE)

16511-361-000

Unavailable

2

POINTS ASSY. (KOKUSAN)

30200-361-003

Unavailable

3

FELT, OIL (NOT AVAILABLE)

30205-361-003

Unavailable

4

ALTERNATOR ASSY. (NOT AVAILABLE)

31100-361-003

Unavailable

5

ROTOR (NOT AVAILABLE)

31121-361-003

Unavailable

6

STATOR

31141-361-003

Unavailable

7

SWITCH, NEUTRAL (NOT AVAILABLE)

35750-333-023

Unavailable

8

O-RING (NOT AVAILABLE)

35751-333-003

Unavailable

9

PLATE, NEUTRAL SWITCH FIXING (NOT AVAILABLE)

35755-333-010

Unavailable

10

WASHER, PLAIN (12MM)

90437-611-000

$4.22

11

SCREW, PAN (5X16)

93500-05016-0G

$1.49

12

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$1.49

12

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

13

NUT, HEX. (12MM) This part replaces 91544-371-980.

94001-12000-0S

$1.66

13

NUT, HEX. (12MM) This part replaces 94001-12000.

94001-12000-0S

$1.66

13

NUT, HEX. (12MM)

94001-12000-0S

$1.66
