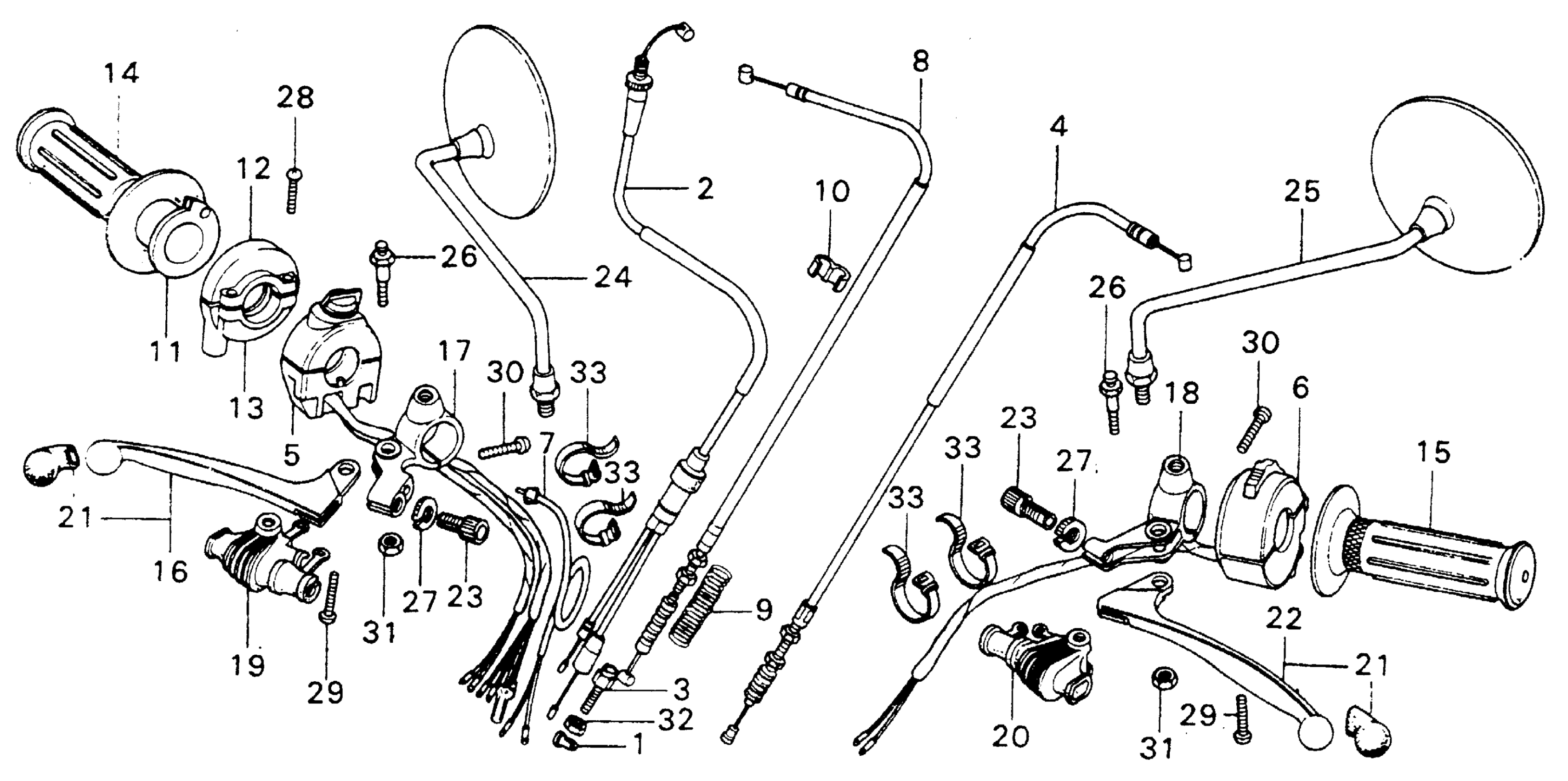

Honda MT125A (76) ELSINORE, JPN, VIN# MT125-3000001 SWITCHES + LEVERS + CABLES Diagram

#

Description
Price

1

PIN, CONTROL LEVER (NOT AVAILABLE)

15173-358-000

Unavailable

2

CABLE, THROTTLE (NOT AVAILABLE)

17910-361-000

Unavailable

3

BOLT, THROTTLE CABLE (NOT AVAILABLE)

17915-358-000

Unavailable

4

CABLE, CLUTCH This part replaces 22870-360-010.

22870-373-405

Unavailable

4

CABLE, CLUTCH This part replaces 22870-373-000.

22870-373-405

Unavailable

5

SWITCH ASSY., LIGHTING & STOP

35150-365-671

Unavailable

6

SWITCH, TURN SIGNAL & DIMMER (TOYO)

35200-358-003

Unavailable

7

SWITCH ASSY., FR. STOP This part replaces 35330-391-690.

35340-329-003

$17.46

7

SWITCH ASSY., FR. STOP This part replaces 35340-147-000.

35340-329-003

$17.46

7

SWITCH ASSY., FR. STOP This part replaces 35340-329-000.

35340-329-003

$17.46

7

SWITCH ASSY., FR. STOP

35340-329-003

$17.46

7

SWITCH ASSY., FR. STOP This part replaces 35340-329-010.

35340-329-003

$17.46

8

CABLE, FR. BRAKE

45450-KE4-P00

Unavailable

8

CABLE, FR. BRAKE This part replaces 45450-361-780.

45450-KE4-P00

Unavailable

8

CABLE, FR. BRAKE This part replaces 45450-401-650.

45450-KE4-P00

Unavailable

8

CABLE, FR. BRAKE This part replaces 45450-436-770.

45450-KE4-P00

Unavailable

9

SPRING, FR. BRAKE CABLE

45454-360-010

$5.14

10

CLIP, FR. BRAKE CABLE

45465-270-000

$4.94

11

PIPE, THROTTLE GRIP This part replaces 53141-355-000.

53141-355-010

Unavailable

11

PIPE, THROTTLE GRIP

53141-355-010

Unavailable

12

CASE (UPPER)

53143-355-000

Unavailable

13

CASE (LOWER)

53144-355-000

Unavailable

14

GRIP, R. HANDLEBAR

53165-116-670

$12.17

15

GRIP, L. HANDLEBAR

53166-116-670

$12.19

16

LEVER, R. HANDLEBAR This part replaces 53170-074-670.

53175-KY0-980

$31.02

16

LEVER, R. HANDLEBAR This part replaces 53170-286-670.

53175-KY0-980

$31.02

16

LEVER, R. HANDLEBAR This part replaces 53170-329-000.

53175-KY0-980

$31.02

16

LEVER, R. HANDLEBAR This part replaces 53170-329-010.

53175-KY0-980

$31.02

16

LEVER, R. HANDLEBAR This part replaces 53170-369-700.

53175-KY0-980

$31.02

16

LEVER, R. HANDLEBAR This part replaces 53175-286-000.

53175-KY0-980

$31.02

16

LEVER, R. HANDLEBAR This part replaces 53175-329-000.

53175-KY0-980

$31.02

16

LEVER, R. HANDLEBAR This part replaces 53175-369-700.

53175-KY0-980

$31.02

16

LEVER, R. HANDLEBAR This part replaces 53175-402-700.

53175-KY0-980

$31.02

17

BRACKET, R. HANDLEBAR

53171-312-003

$52.94

18

BRACKET, L. HANDLEBAR

53172-310-010

$56.00

19

COVER, R. CONTROL LEVER

53176-329-000

$12.41

20

COVER, L. CONTROL LEVER

53179-329-000

$15.07

21

CAP A, LEVER This part replaces 53180-286-000.

95010-16001

$5.97

21

CAP A, LEVER This part replaces 95010-16000.

95010-16001

$5.97

21

CAP A, LEVER

95010-16001

$5.97

22

LEVER, L. HANDLE This part replaces 53178-329-000.

53178-369-700

$28.35

22

LEVER, L. HANDLE

53178-369-700

$28.35

22

LEVER, L. HANDLE This part replaces 53190-074-670.

53178-369-700

$28.35

22

LEVER, L. HANDLE This part replaces 53190-286-670.

53178-369-700

$28.35

22

LEVER, L. HANDLE This part replaces 53190-329-000.

53178-369-700

$28.35

22

LEVER, L. HANDLE This part replaces 53190-329-010.

53178-369-700

$28.35

22

LEVER, L. HANDLE This part replaces 53190-369-700.

53178-369-700

$28.35

22

LEVER, L. HANDLE This part replaces 53190-371-980.

53178-369-700

$28.35

23

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

24

MIRROR, R. This part replaces 88110-074-000.

88110-329-730

Unavailable

24

MIRROR, R.

88110-329-730

Unavailable

25

MIRROR, L. (DOES NOT INCLUDE LOCK NUT) This part replaces 88120-074-000.

88220-329-730

Unavailable

25

MIRROR, L. (DOES NOT INCLUDE LOCK NUT) This part replaces 88120-329-730.

88220-329-730

Unavailable

26

BOLT, HANDLEBAR LEVER PIVOT

90114-329-000

$7.75

27

NUT, FIXING

90321-315-670

$7.31

27

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

28

SCREW, PAN (5X20)

93500-05020-0A

$1.49

29

SCREW, PAN (5X28)

93500-05028-0A

$1.49

30

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

30

SCREW, PAN (6X28)

93500-06028-0A

$1.49

31

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM)

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

32

NUT, HEX. (8MM)

94002-08000-0S

$1.49

33

BAND B1, CABLE

95014-62100

$1.64
