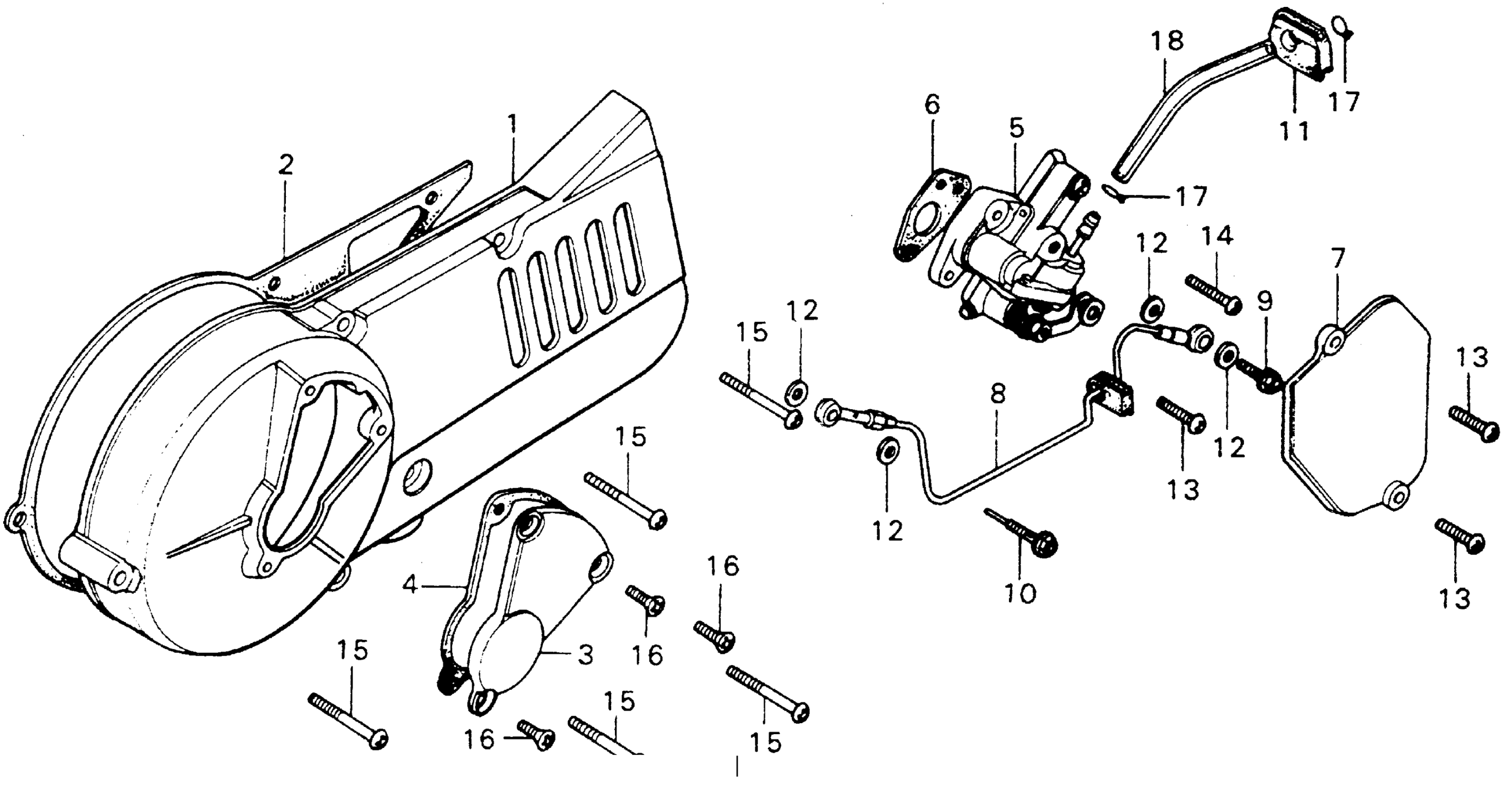

Honda MT125A (76) ELSINORE, JPN, VIN# MT125-3000001 LEFT CRANKCASE COVER + OIL PUMP Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-361-670

Unavailable

2

GASKET, L. CRANKCASE COVER (NOT AVAILABLE)

11395-361-000

Unavailable

3

COVER, POINTS

11451-373-000

Unavailable

4

GASKET, POINTS COVER (NOT AVAILABLE)

11495-361-000

Unavailable

5

PUMP ASSY., OIL (NOT AVAILABLE)

15100-361-003

Unavailable

6

GASKET, OIL PUMP This part replaces 15163-122-000.

15163-122-306

Unavailable

7

COVER, OIL PUMP CASE (NOT AVAILABLE)

15461-361-670

Unavailable

8

HOSE, OUTLET (NOT AVAILABLE)

15510-361-010

Unavailable

9

BOLT, ONE-WAY (NOT AVAILABLE)

15542-358-000

Unavailable

10

BOLT, ONE-WAY IN. PIPE (NOT AVAILABLE)

15543-358-000

Unavailable

11

GROMMET, IN. (NOT AVAILABLE)

15551-361-000

Unavailable

12

WASHER, SEALING (6.2X12X1.2) This part replaces 90461-357-000.

90463-KRM-840

$1.49

13

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

13

SCREW, PAN (6X16)

93500-06016-0A

$1.49

14

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

14

SCREW, PAN (6X20)

93500-06020-0A

$1.49

15

SCREW, PAN (6X32) This part replaces 93500-06032.

93500-06032-0A

$1.49

15

SCREW, PAN (6X32)

93500-06032-0A

$1.49

16

SCREW, OVAL (5X12)

93700-05012-0A

$1.49

17

CLIP, TUBE (C9)

95002-50000

$1.49

18

BULK HOSE, VINYL (5X9X1000) (5X9X140)

95003-11001-60M

$4.77
