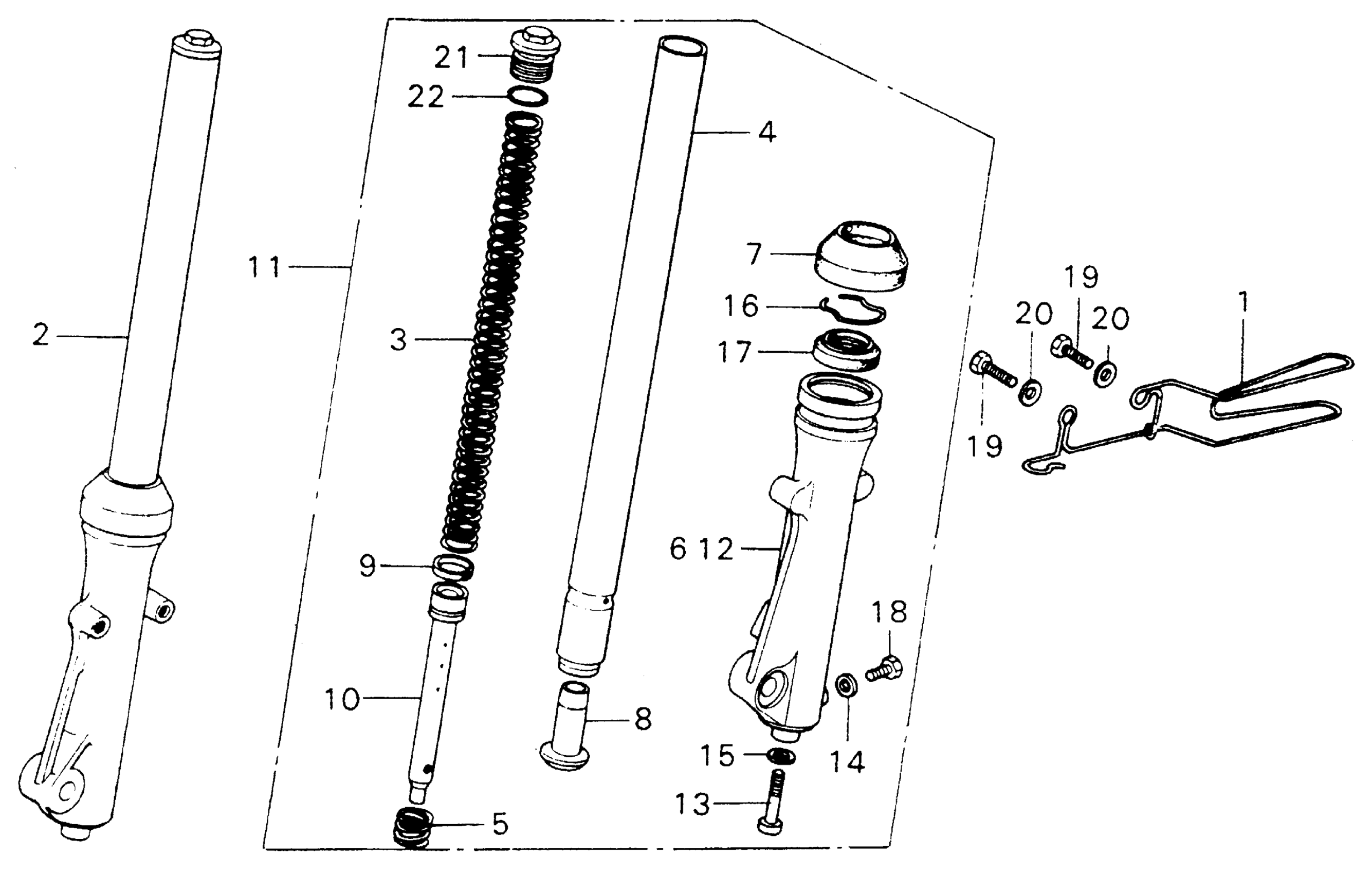

Honda MT125A (76) ELSINORE, JPN, VIN# MT125-3000001 FRONT FORK Diagram

#

Description
Price

1

CLAMP, SPEEDOMETER CABLE

44832-391-670

Unavailable

2

FORK ASSY., R. FR.

51400-361-000

Unavailable

3

SPRING, FR. FORK (NOT AVAILABLE)

51401-361-000

Unavailable

4

PIPE, FR. FORK (NOT AVAILABLE)

51410-361-000

Unavailable

5

SPRING, FR. FORK REBOUND

51412-331-770

$4.51

6

CASE, R. FR. FORK (LOWER) (NOT AVAILABLE)

51421-361-010

Unavailable

7

DUST SEAL (SHOWA) This part replaces 51425-110-003.

91254-436-003

$16.75

7

DUST SEAL (SHOWA)

91254-436-003

$16.75

8

PIECE, OIL LOCKING (NOT AVAILABLE)

51432-360-000

Unavailable

9

RING, PISTON (NOT AVAILABLE)

51437-331-770

Unavailable

10

SEAT (LOWER)

51440-361-000

Unavailable

11

FORK ASSY., L. FR.

51500-361-000

Unavailable

12

CASE, L. FR. FORK (LOWER)

51521-361-010

Unavailable

13

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

13

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

14

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

15

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

16

RING, OIL SEAL STOP

90601-354-000

$5.13

17

OIL SET, FR. OIL FILTER

51495-331-405

$19.75

17

OIL SEAL SET (FR FORK) This part replaces 91255-331-671.

51495-331-405

$19.75

18

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

18

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

18

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

20

WASHER, PLAIN (6MM)

94101-06800

$1.49

21

BOLT D1, FORK This part replaces 94605-27100.

94605-27101

$8.00

21

BOLT D1, FORK

94605-27101

$8.00

22

O-RING (23X2.4)

94608-30000

$1.49
