CYLINDER HEAD + CYLINDER

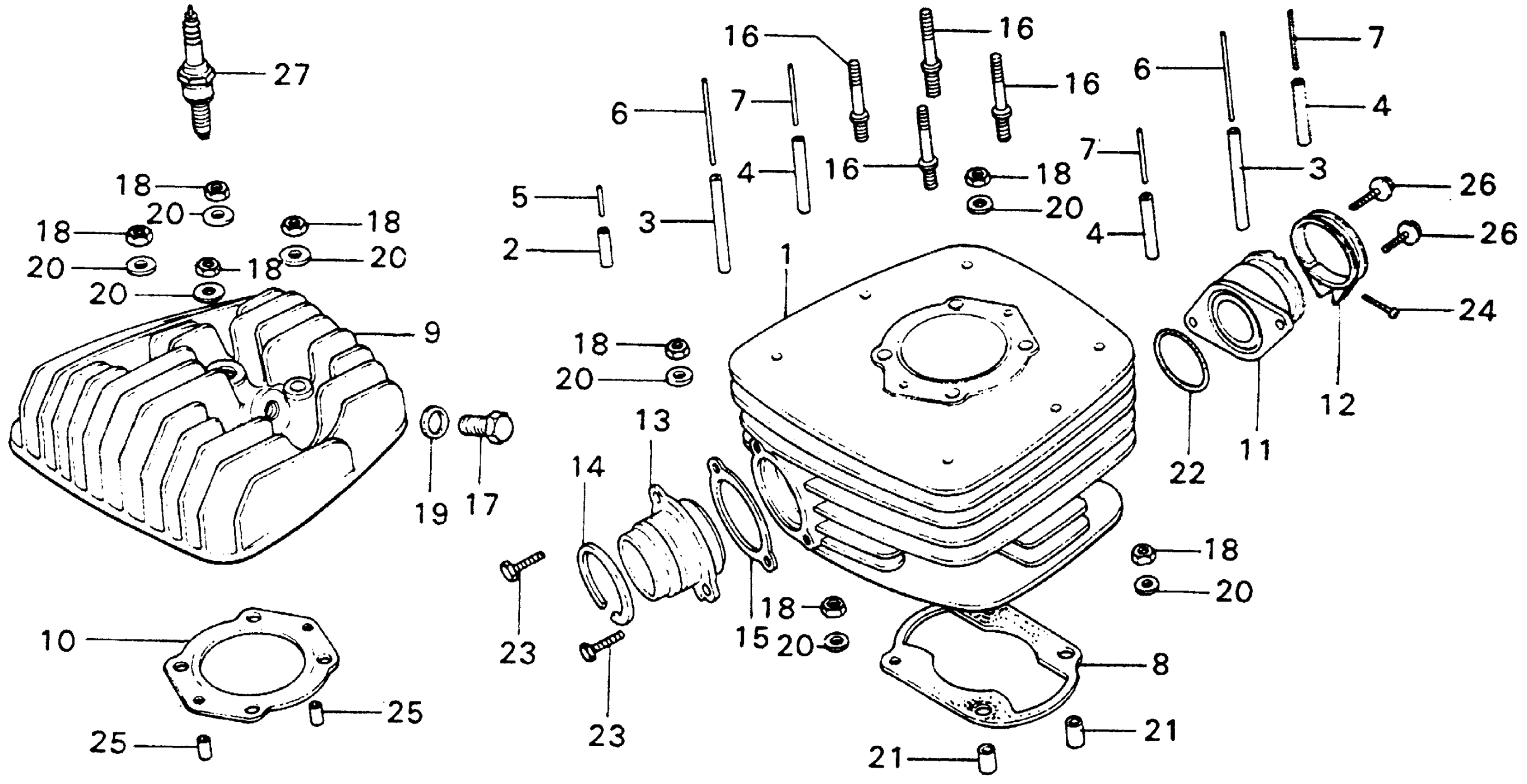

Honda MT125A (76) ELSINORE, JPN, VIN# MT125-3000001 CYLINDER HEAD + CYLINDER Diagram
#
Description
Price
1
CYLINDER (NOT AVAILABLE)
12100-361-670
Unavailable
2
RUBBER, INSERT A (NOT AVAILABLE)
12111-361-000
Unavailable
3
RUBBER B, INSERT (NOT AVAILABLE)
12112-361-000
Unavailable
4
RUBBER, INSERT C
12113-361-000
Unavailable
5
BAR, INSERT A
12121-361-000
Unavailable
6
BAR, INSERT B
12122-361-000
Unavailable
7
BAR, INSERT C (NOT AVAILABLE)
12123-361-000
Unavailable
8
GASKET, CYLINDER This part replaces 12191-360-000.
12191-373-306
Unavailable
8
GASKET, CYLINDER This part replaces 12191-373-000.
12191-373-306
Unavailable
8
GASKET, CYLINDER
12191-373-306
Unavailable
9
CYLINDER HEAD (NOT AVAILABLE)
12200-361-670
Unavailable
10
GASKET HEAD This part replaces 12251-361-000.
12251-361-405
Unavailable
10
GASKET, CYLINDER HEAD (NOT AVAILABLE) | (Optional).
12253-361-000
Unavailable
11
INSULATOR, CARBURETOR
16211-361-000
Unavailable
12
BAND, INSULATOR (NOT AVAILABLE)
16223-361-000
Unavailable
13
JOINT, EX. PIPE
18351-361-000
Unavailable
14
RING, EX. PIPE (NIPPON) (NOT AVAILABLE)
18358-361-003
Unavailable
15
GASKET, EX. PIPE JOINT
18359-360-000
Unavailable
16
BOLT, CYLINDER STUD (NOT AVAILABLE)
90034-360-700
Unavailable
17
BOLT, SEALING (14MM)
90061-358-000
Unavailable
19
WASHER, SEALING (14MM) (NOT AVAILABLE)
90445-358-000
Unavailable
20
WASHER (9MM) (NOT AVAILABLE)
90456-360-000
Unavailable
21
PIN, DOWEL (10X12)
90701-360-000
Unavailable
22
O-RING (33X2.4) (NOT AVAILABLE) This part replaces 91301-361-003.
91301-361-004
Unavailable
22
O-RING (33X2.4) (NOT AVAILABLE)
91301-361-004
Unavailable
