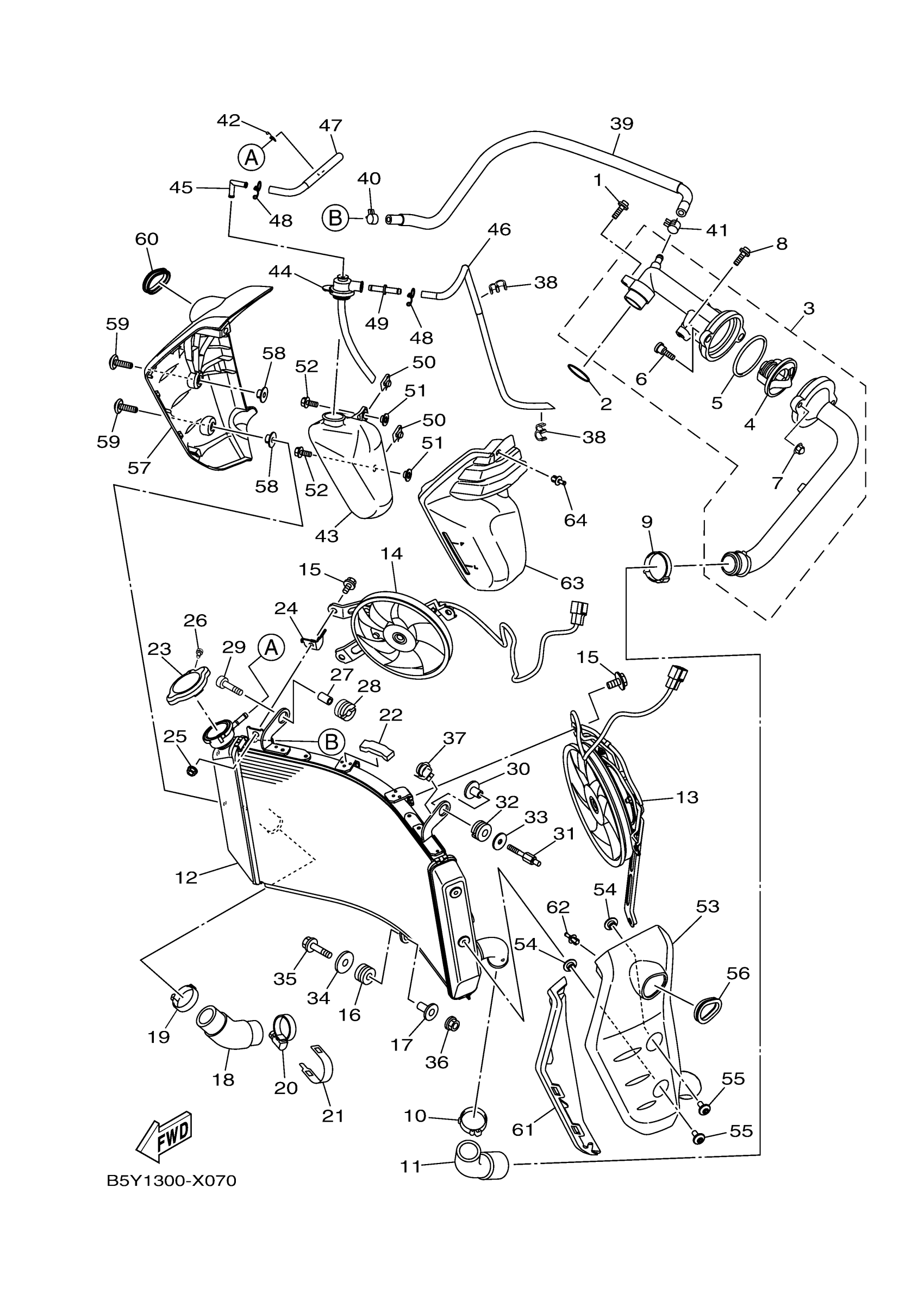

Yamaha MT10SPSS (MT10 SP) BGGP 2025 RADIATOR & HOSE Diagram

#

Description
Price

1

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

$10.49

2

O-RING

93210-26006-00

$8.49

3

THERMOSTAT ASSY

2CR-12410-02-00

$251.99

4

THERMOSTAT ASSY

4FM-12410-01-00

$41.99

5

O-RING (70E)

93210-54534-00

Unavailable

6

BOLT

2CR-12615-00-00

Unavailable

7

NUT, CROWN

90176-06017-00

$5.60

8

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

$10.49

9

CLIP

90467-350A0-00

$8.49

10

CLIP

90467-320A0-00

$7.49

11

HOSE 3

2CR-12578-00-00

Unavailable

12

RADIATOR COMP

B5Y-12461-00-00

$388.99

13

BLOWER ASSY

B67-12405-00-00

Unavailable

14

BLOWER ASSY

B67-12405-10-00

Unavailable

15

BOLT, BLOWER HOLDING

5GJ-12675-00-00

$7.99

16

GROMMET (29L)

90480-15363-00

Unavailable

17

COLLAR

90387-06166-00

Unavailable

18

HOSE 7

2CR-12551-00-00

Unavailable

19

CLIP

90467-320A0-00

$7.49

20

HOSE CLAMP ASSY

90450-35001-00

Unavailable

21

COVER 2

5GV-1246E-00-00

Unavailable

22

SPACER 2

JX4-78329-00-00

Unavailable

23

CAP, RADIATOR

B5Y-12462-00-00

Unavailable

24

BRACKET 1

B5Y-1244E-00-00

Unavailable

25

NUT, FLANGE

95702-06500-00

Unavailable

26

BOLT, SOCKET

91317-03006-00

Unavailable

27

COLLAR

90387-06M19-00

Unavailable

28

GROMMET

90480-16017-00

Unavailable

29

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

30

COLLAR

90387-06M69-00

Unavailable

31

BOLT

90109-06277-00

Unavailable

32

GROMMET

90480-16017-00

Unavailable

33

WASHER PLATE 137241870000

90201-06072-00

Unavailable

34

WASHER, PLATE(36Y)

90201-063J2-00

Unavailable

35

BOLT, FLANGE

95817-06035-00

Unavailable

36

NUT,SELF-LOCKING

95607-06200-00

Unavailable

37

CLAMP

90464-13014-00

Unavailable

38

CLAMP(6R8)

90464-10M38-00

Unavailable

39

HOSE 8

2CR-12552-00-00

Unavailable

40

CLIP(3BM)

90467-10135-00

Unavailable

41

CLIP (7K7)

90467-11044-00

Unavailable

42

CLIP (16G)

90467-08021-00

Unavailable

43

TANK, RECOVERY

B5Y-21871-00-00

Unavailable

44

CAP

2C0-21875-00-00

Unavailable

45

ELBOW

26H-21828-00-00

Unavailable

46

PIPE, BREATHER

B5Y-21826-00-00

Unavailable

47

PIPE 1

B5Y-21816-00-00

Unavailable

48

CLIP (16G)

90467-08021-00

Unavailable

49

JOINT

4XY-14568-00-00

Unavailable

50

NUT, SPRING

90183-060A6-00

Unavailable

51

COLLAR (8G8)

90387-06681-00

Unavailable

52

BOLT, FLANGE DEEP RECESS

95D32-06014-00

Unavailable

53

COVER 1

B5Y-1246A-00-00

Unavailable

54

COLLAR (3L1)

90387-07717-00

Unavailable

55

BOLT,HEX. SOCKET BUTTON

90111-06198-00

Unavailable

56

DAMPER, FLASHER 1

B7N-83321-00-00

Unavailable

57

COVER 2

B5Y-1246E-00-00

Unavailable

58

COLLAR (3L1)

90387-07717-00

Unavailable

59

BOLT,HEX. SOCKET BUTTON

90111-06198-00

Unavailable

60

DAMPER, FLASHER 1

B7N-83321-00-00

Unavailable

61

COVER 3

B5Y-1246F-00-00

Unavailable

62

RIVET

90269-06008-00

Unavailable

63

COVER 4

B5Y-1246G-00-00

Unavailable

64

RIVET

90269-06008-00

Unavailable
