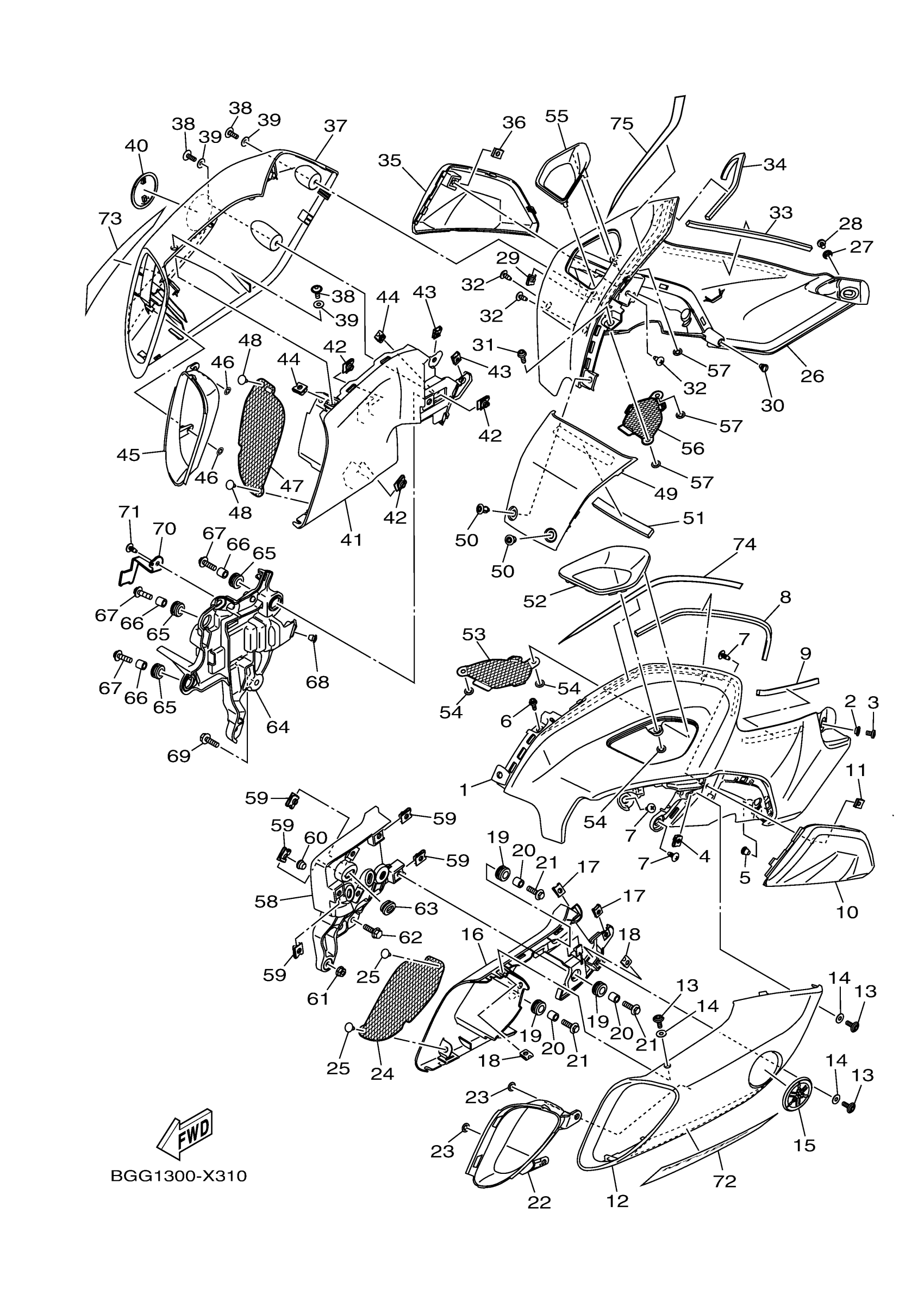

Yamaha MT10SPSS (MT10 SP) BGGP 2025 FUEL TANK 2 Diagram

#

Description
Price

1

COVER, SIDE 1

B5Y-24129-00-P2

Unavailable

2

COLLAR

90387-05035-00

$7.49

3

SCREW, BIND

98902-05008-00

$1.70

4

NUT, SPRING

90183-050A6-00

$8.49

5

PLUG(1NL)

90338-07180-00

$7.49

6

BOLT, HEXAGON SOCKET HEAD

90110-05014-00

$8.49

7

SCREW, TRUSS TAP.

97707-50012-00

$4.63

8

DAMPER

4C8-21746-00-00

$2.29

9

DAMPER, LOCATING 4

5YU-2177N-00-00

$2.13

10

MOLE 1

B5Y-28345-00-00

$24.99

11

NUT, SPRING(1YT)

90183-05042-00

$5.60

12

SCOOP, AIR 1

B5Y-2137W-00-P2

$175.99

13

BOLT,HEX. SOCKET BUTTON

90111-05062-00

$2.34

14

WASHER, PLATE(1KT)

90202-05180-00

$10.49

15

EMBLEM

1RC-2413B-02-00

$21.99

16

STAY, SIDE COVER 1

B5Y-2172E-00-P2

Unavailable

17

NUT, SPRING(1YT)

90183-05042-00

$5.60

18

NUT, SPRING

90183-050A6-00

$8.49

19

GROMMET

90480-14003-00

Unavailable

20

COLLAR

90387-06260-00

Unavailable

21

BOLT, FLANGE

90105-06203-00

Unavailable

22

CAP 1

B5Y-27475-00-P2

Unavailable

23

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

24

GRILL, AIR INTAKE

B5Y-2837N-00-00

Unavailable

25

RIVET(81E)

90269-05055-00

Unavailable

26

COVER, SIDE 2

B5Y-24139-00-P2

Unavailable

27

COLLAR

90387-05035-00

$7.49

28

SCREW, BIND

98902-05008-00

$1.70

29

NUT, SPRING

90183-050A6-00

$8.49

30

PLUG(1NL)

90338-07180-00

$7.49

31

BOLT, HEXAGON SOCKET HEAD

90110-05014-00

$8.49

32

SCREW, TRUSS TAP.

97707-50012-00

$4.63

33

DAMPER

4C8-21746-00-00

$2.29

34

DAMPER, LOCATING 4

5YU-2177N-00-00

$2.13

35

MOLE 2

B5Y-28346-00-00

Unavailable

36

NUT, SPRING(1YT)

90183-05042-00

$5.60

37

SCOOP, AIR 2

B5Y-2137X-00-P2

Unavailable

38

BOLT,HEX. SOCKET BUTTON

90111-05062-00

$2.34

39

WASHER, PLATE(1KT)

90202-05180-00

$10.49

40

EMBLEM

1RC-2413B-02-00

$21.99

41

STAY, SIDE COVER 2

B5Y-2174E-00-P2

Unavailable

42

NUT, SPRING(4ES)

90183-06069-00

Unavailable

43

NUT, SPRING(1YT)

90183-05042-00

$5.60

44

NUT, SPRING

90183-050A6-00

$8.49

45

CAP 2

B5Y-27476-00-P2

Unavailable

46

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

47

GRILL, AIR INTAKE

B5Y-2837N-00-00

Unavailable

48

RIVET(81E)

90269-05055-00

Unavailable

49

COVER, TANK

B5Y-241B1-00-P2

Unavailable

50

RIVET

90269-06019-00

Unavailable

51

DAMPER

4B5-2174X-00-00

Unavailable

52

GUIDE, AIR 1

BGG-2137U-00-P0

Unavailable

53

GRILL, AIR OUTLET

B5Y-2837V-00-00

Unavailable

54

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

55

GUIDE, AIR 2

BGG-2137V-00-P0

Unavailable

56

GRILL, AIR OUTLET

B5Y-2837W-00-00

Unavailable

57

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

58

BRACKET 1

B5Y-2172K-00-00

Unavailable

59

NUT, SPRING(4ES)

90183-06069-00

Unavailable

60

CAP, GREASE NIPPLE

663-45119-01-00

Unavailable

61

NUT, FLANGE

95702-06500-00

Unavailable

62

BOLT, FLANGE DEEP

95D37-06020-00

Unavailable

63

GROMMET

90480-01022-00

Unavailable

64

BRACKET 2

B5Y-2172L-00-00

Unavailable

65

GROMMET

90480-14003-00

Unavailable

66

COLLAR

90387-06260-00

Unavailable

67

BOLT, FLANGE

90105-06203-00

Unavailable

68

PLUG(1NL)

90338-07180-00

$7.49

69

BOLT, FLANGE DEEP

95D37-06020-00

Unavailable

70

BRACKET, SEAT

B5Y-24738-00-00

Unavailable

71

SCREW, TRUSS TAP.

97707-50012-00

$4.63

72

GRAPHIC 1

BGG-2173E-00-00

Unavailable

73

GRAPHIC 2

BGG-2173F-00-00

Unavailable

74

GRAPHIC, 1

BGG-217F1-00-00

Unavailable

75

GRAPHIC, 2

BGG-217F2-00-00

Unavailable
