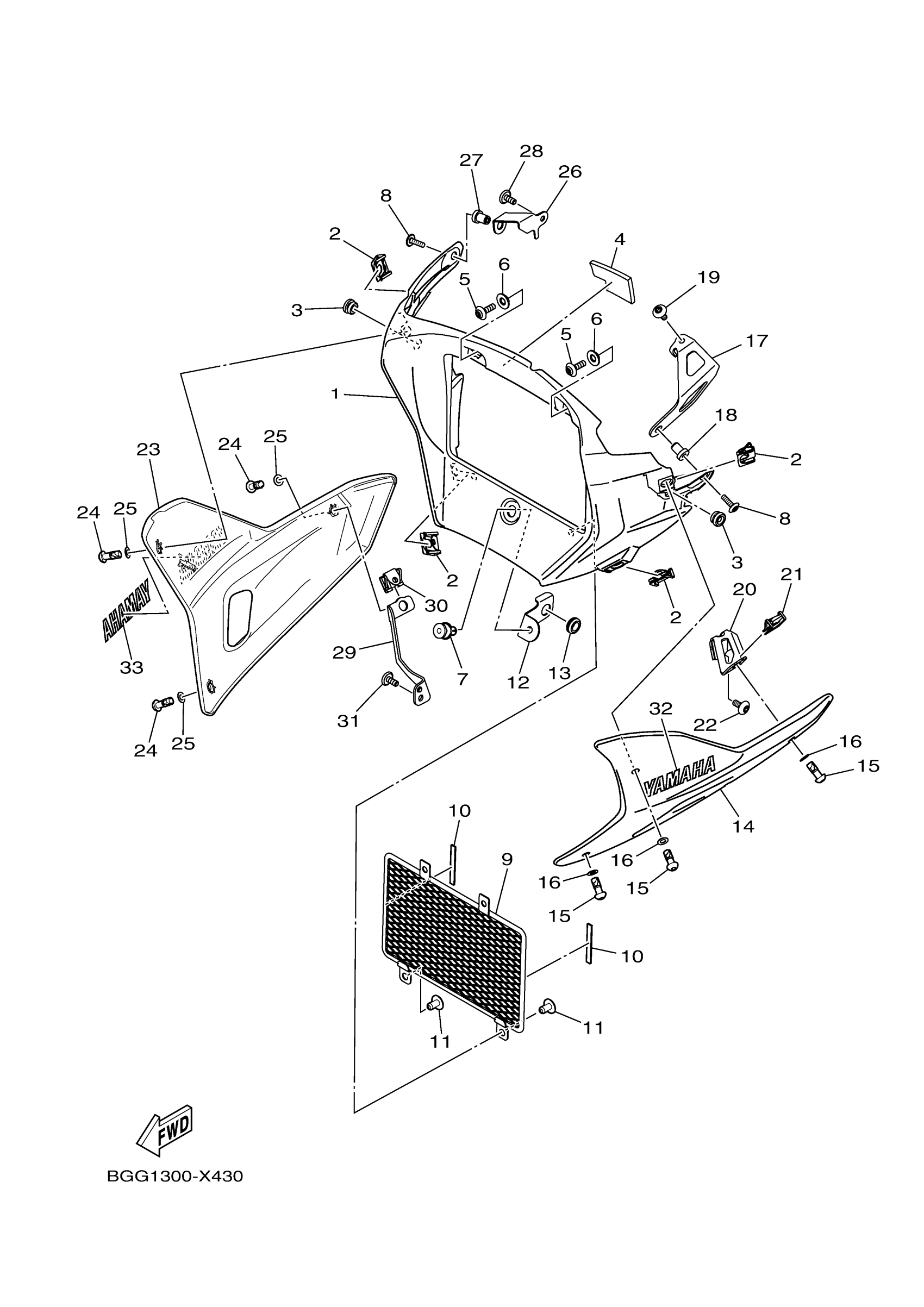

Yamaha MT10SPSS (MT10 SP) BGGP 2025 COWLING 3 Diagram
#
Description
Price
1
BRACKET, POUCH
BGG-28283-00-00
Unavailable
9
COVER, OIL COOLER
BGG-13463-00-00
Unavailable
14
COVER, UNDER 1
BGG-23123-00-P0
Unavailable
16
WASHER, SPECIAL 1
2TK-21757-00-00
Unavailable
17
BRACKET 13
BGG-2833K-00-00
Unavailable
18
NUT
90179-05003-00
Unavailable
19
BOLT,HEX. SOCKET BUTTON
90111-06127-00
Unavailable
20
BRKT.,18
BGG-2833T-00-00
Unavailable
22
BOLT,HEX. SOCKET BUTTON
90111-06127-00
Unavailable
23
COVER, UNDER 2
BGG-23133-00-P0
Unavailable
25
WASHER, SPECIAL 1
2TK-21757-00-00
Unavailable
26
BRACKET 15
BGG-2833M-00-00
Unavailable
27
NUT
90179-05003-00
Unavailable
28
BOLT,HEX. SOCKET BUTTON
90111-06127-00
Unavailable
29
BRKT.,19
BGG-2833U-00-00
Unavailable
31
BOLT,HEX. SOCKET BUTTON
90111-06127-00
Unavailable
32
EMBLEM, YAMAHA
99246-00100-00
Unavailable
33
EMBLEM, YAMAHA
99246-00100-00
Unavailable
