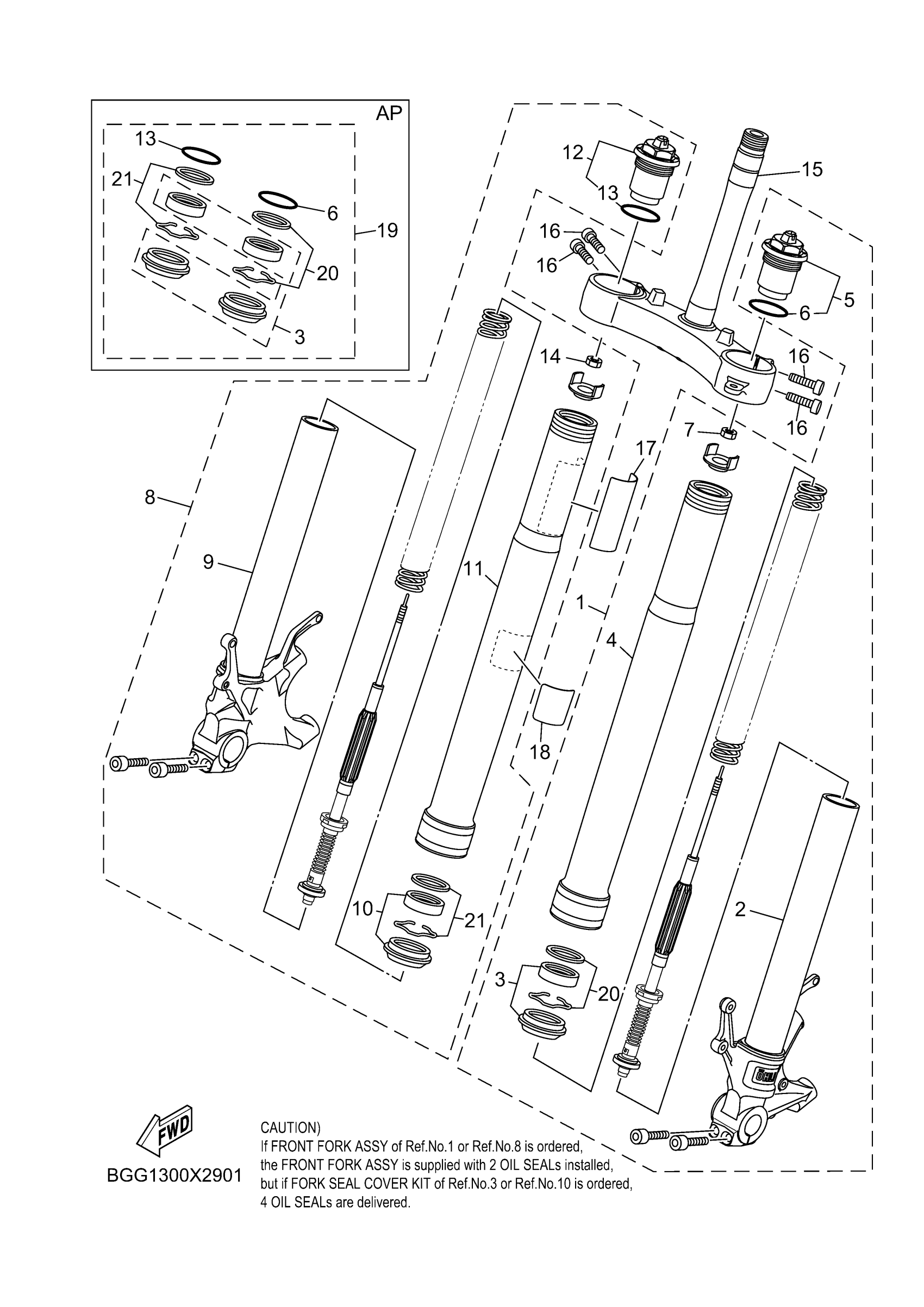

Yamaha MT10SPRS (MT10 SP) BGGE 2024 FRONT FORK Diagram
#
Description
Price
1
FRONT FORK ASSY (L.H)
BGG-23102-00-00
Unavailable
4
OUTER TUBE COMP.
2KS-23106-00-00
Unavailable
5
BOLT, CAP
2KS-23111-00-00
Unavailable
8
FRONT FORK ASSY (R.H)
BGG-23103-00-00
Unavailable
11
OUTER TUBE COMP.
2KS-23106-00-00
Unavailable
12
BOLT, CAP
2KS-23111-00-00
Unavailable
15
UNDER BRACKET COMP
B5Y-23340-00-00
Unavailable
16
BOLT,SOCKET
91314-08030-00
Unavailable
17
PROTECTOR
BEB-23472-00-00
Unavailable
18
SEAL
5PX-21669-01-00
Unavailable
19
FORK SEALS KIT
BW8-W003B-01-00
Unavailable
20
. FORK WASHER CIRCLIP KIT
2KS-231M0-00-00
Unavailable
21
. FORK WASHER CIRCLIP KIT
2KS-231M0-00-00
Unavailable
