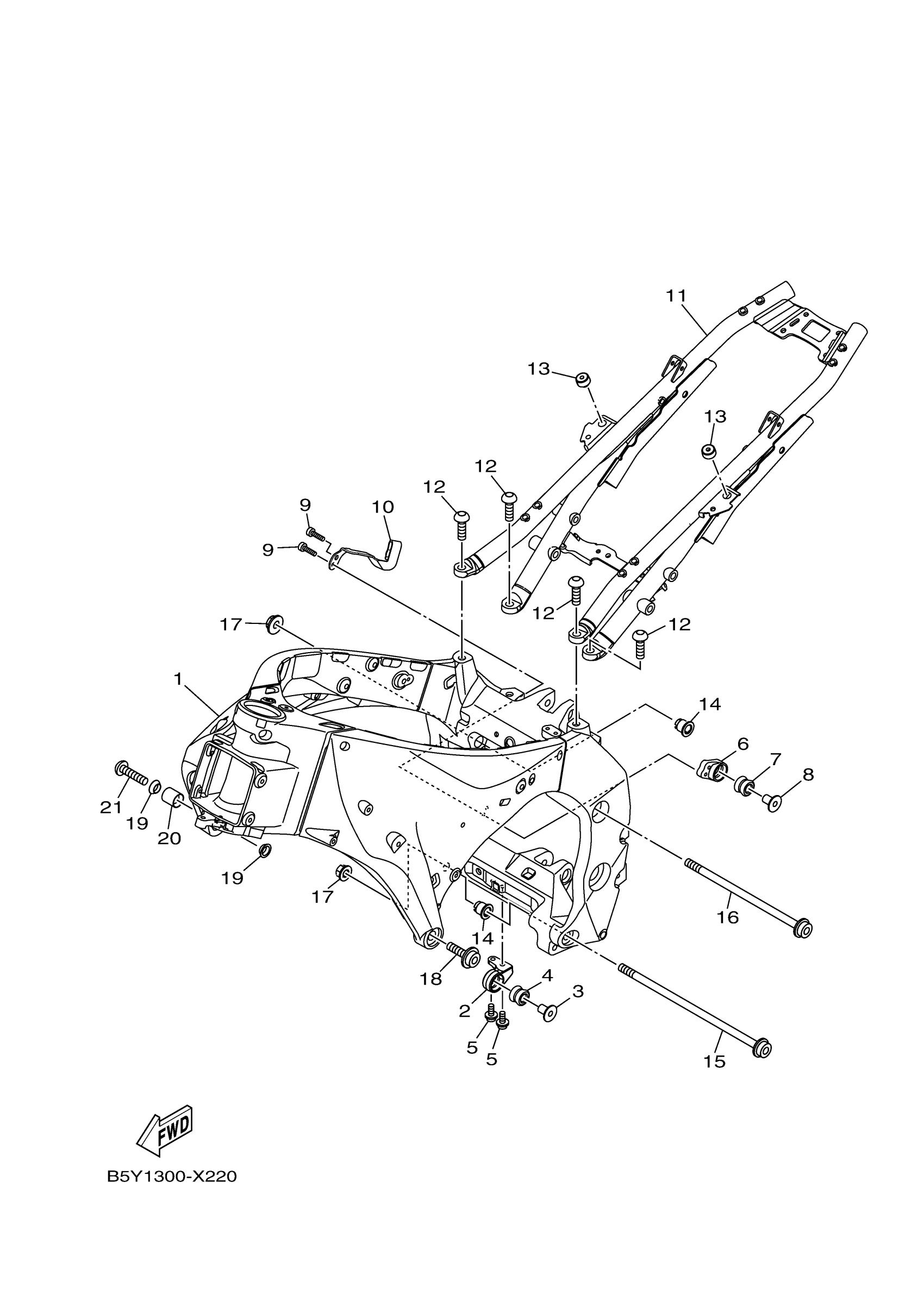

Find the part on the Frame diagram for your 2024 Yamaha MT10 SP (MT10SPRS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Yamaha MT10 SP (MT10SPRS) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

B67-21110-20-00

1
Out of stock

2

BRACKET, MUFFLER 1

B67-21435-00-00

—
Out of stock

3

COLLAR

90387-08021-00

1
Out of stock

4

DAMPER, MUFFLER

5VY-14747-00-00

1
Out of stock

5

BOLT, HEXAGON SOCKET HEAD

90110-06248-00

—
Out of stock

6

BRKT., MUFF. 2

2CR-21436-00-00

1
Out of stock

7

DAMPER, MUFFLER

5VY-14747-00-00

1
Out of stock

8

COLLAR

90387-08021-00

1
Out of stock

9

BOLT,SOCKET HEAD

91314-06020-00

1
Out of stock

10

BRKT., 5

B5Y-2148Y-00-00

—
Out of stock

11

REAR FRAME COMP.

B5Y-21190-00-00

—
Out of stock

12

SCREW

90149-10065-00

1
Out of stock

13

STOPPER, MAIN STAND

157-27114-00-00

1
Out of stock

14

BOLT, ENGINE ADJUSTING

5YU-21495-00-00

1
Out of stock

15

BOLT, HEXAGON SOCK

90110-12010-00

1
Out of stock

16

BOLT, HEXAGON SOCK

90110-12008-00

—
Out of stock

17

Nut

90179-12004-00

—
Out of stock

18

BOLT, HEXAGON SOCK

90110-12007-00

—
Out of stock

19

BOSS, ENGINE MOUNT

14B-21414-00-00

—
Out of stock

20

BOSS, ENGINE MOUNT

14B-21424-00-00

—
Out of stock

21

BOLT,HEX. SOCKET B

90111-12003-00

—
Out of stock
