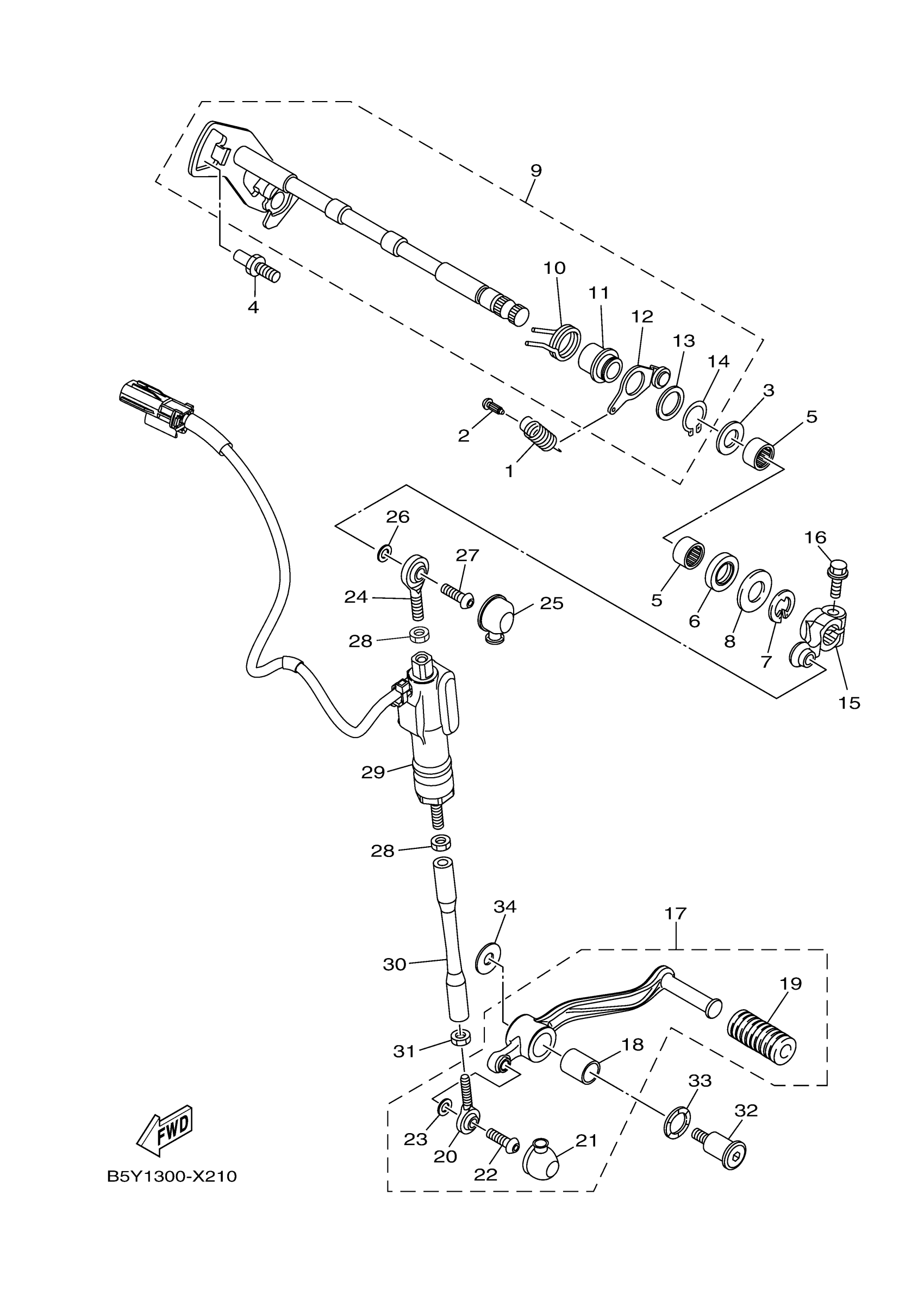

Yamaha MT10SPPS (MT10 SP) BGGA 2023 SHIFT SHAFT Diagram

#

Description
Price

1

SPRING, TENSION

90506-18021-00

$8.49

2

HOOK, SPRING

132-16346-00-00

$9.99

3

WASHER, PLATE (5N6)

90201-127E1-00

$4.29

4

STOPPER, SCREW

5VK-18127-00-00

Unavailable

5

BEARING

93317-11295-00

$46.99

6

OIL SEAL (12X22X5-371)

93102-12106-00

$11.49

7

CIRCLIP

99002-10600-00

$8.49

8

WASHER, PLATE (353)

90201-12575-00

$8.49

9

SHIFT SHAFT ASSY

2CR-18101-01-00

$140.99

10

SPRING, TORSION

90508-32141-00

Unavailable

11

SPACER

B7N-18175-00-00

Unavailable

12

STOPPER LEVER ASSY

14B-18140-00-00

Unavailable

13

WASHER, PLATE (30X)

90201-177G4-00

$9.49

14

CIRCLIP(1EY)

99009-17400-00

$4.73

15

ARM, SHIFT

2CR-18112-10-00

$59.99

16

BOLT, FLANGE

90105-06127-00

Unavailable

17

SHIFT PEDAL ASSY

B67-18110-10-00

Unavailable

18

BUSH

90386-14171-00

Unavailable

19

COVER, SHIFT PEDAL

5EB-18113-00-00

Unavailable

20

JOINT, ROD 2

5LV-18117-00-00

Unavailable

21

COVER, DUST

4XV-18154-00-00

Unavailable

22

BOLT, BUTTON

92017-06020-00

Unavailable

23

WASHER, PLATE

90201-06089-00

Unavailable

24

JOINT, ROD 1

5LV-18116-00-00

Unavailable

25

COVER, DUST

4XV-18154-00-00

Unavailable

26

WASHER, PLATE (8U7)

90201-067F9-00

Unavailable

27

BOLT, BUTTON

92017-06020-00

Unavailable

28

NUT(650)

95380-06700-00

Unavailable

29

SHIFT SENSOR ASSY.

B5Y-82480-01-00

Unavailable

30

ROD, SHIFT

2CR-18115-00-00

Unavailable

31

NUT (2H9)

90170-06228-00

Unavailable

32

BOLT

4C8-27434-10-00

Unavailable

33

WASHER, WAVE(6T4)

90206-14086-00

Unavailable

34

WASHER 6154275100

90201-08103-00

Unavailable
