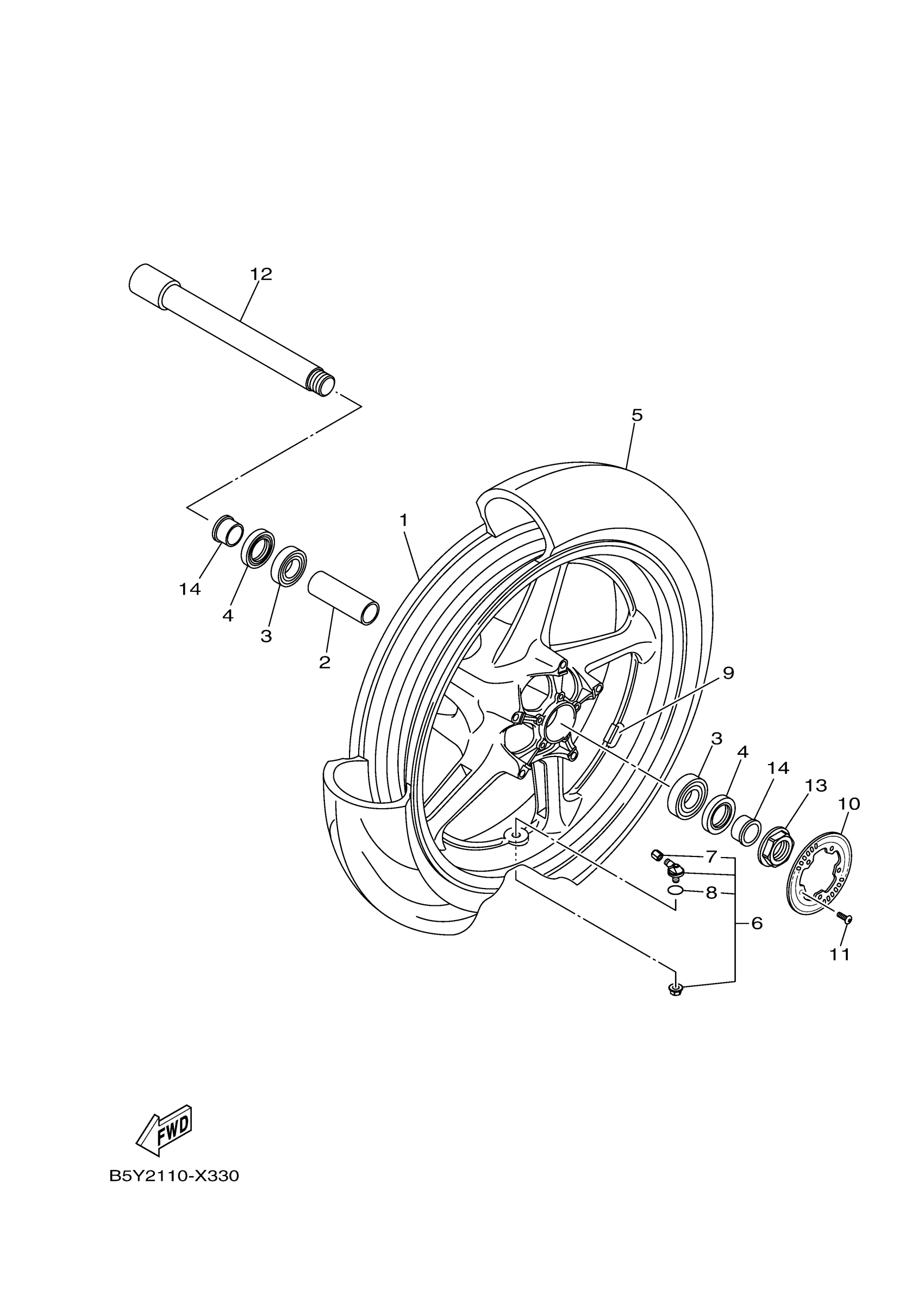

Yamaha MT10SPPS (MT10 SP) BGGA 2023 FRONT WHEEL Diagram

#

Description
Price

1

CAST WHEEL, FRONT

B5Y-25168-00-P0

$677.99

2

SPACER, BEARING

B60-25117-00-00

$39.99

3

BRG,R-B 6005 47MM 85G KY

93306-00507-00

$42.99

4

OIL SEAL

93106-31001-00

$7.49

5

TIRE (120/70ZR17M/C 58W)

94112-17147-00

Unavailable

6

VALVE, RIM

93900-00045-00

Unavailable

7

CAP

B5Y-25188-00-00

$8.49

8

O-RING

B5Y-251H4-00-00

Unavailable

9

BALANCER, WHEEL

5MT-25398-00-00

$17.49

9

BALANCER, WHEEL

5MT-25398-10-00

$17.49

9

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

10

ROTOR, SENSOR

1SD-2517G-00-00

Unavailable

11

SCREW

90149-05030-00

$8.49

12

AXLE, WHEEL

2CR-25181-00-00

$88.99

13

NUT

90179-24004-00

$26.99

14

COLLAR

90387-25032-00

Unavailable
