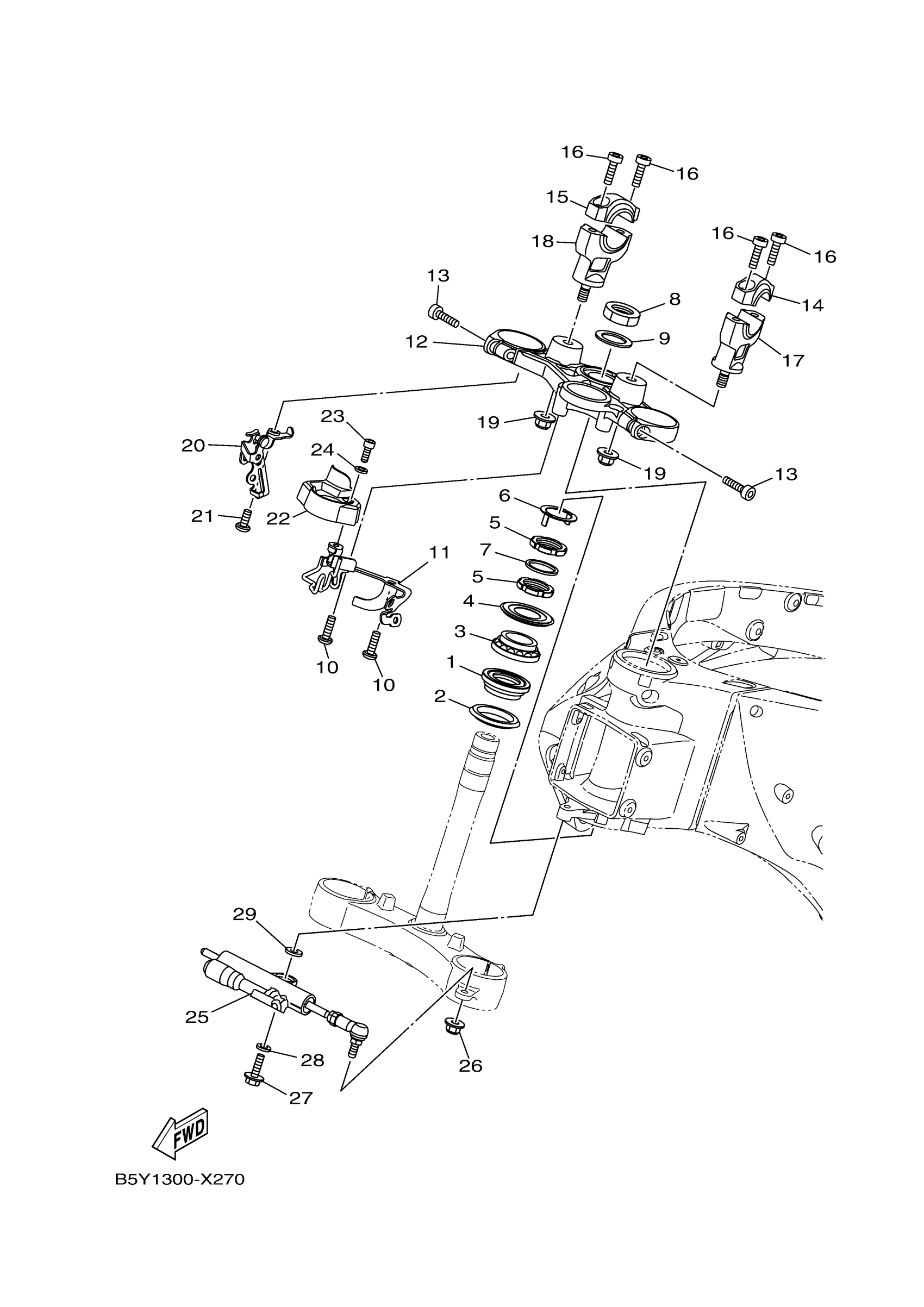

Yamaha MT10SPNS (MT10SP) BGG2 2022 STEERING Diagram

#

Description
Price

1

BEARING

93399-99957-00

$70.99

2

SEAL, STEERING

3FV-23462-00-00

$24.99

3

BEARING(3FV)

93399-99932-00

$63.99

4

COVER, BALL RACE 1

4XV-23415-01-00

$24.99

5

NUT

90179-30691-00

$33.99

6

WASHER, SPECIAL

4XV-23418-00-00

$17.49

7

WASHER, PLATE

90202-30235-00

$8.49

8

NUT

90170-28419-00

$40.99

9

WASHER, PLATE

90201-281U8-00

$11.49

10

BOLT,HEX. SOCKET B

90111-08090-00

$4.41

11

GUIDE, CABLE

B5Y-23389-00-00

Unavailable

12

CROWN, HANDLE

B5Y-23435-00-00

$150.99

13

BOLT,SOCKET

91314-08030-00

$2.34

14

HOLDER, HANDLE UPP

1RC-23441-11-00

$35.99

15

HOLDER, HANDLE UPP

1RC-2344A-11-00

$35.99

16

BOLT,SOCKET

91314-08030-00

$2.34

17

HOLDER 1

B67-24847-10-00

Unavailable

18

HOLDER 2

B67-24848-10-00

Unavailable

19

NUT, S/L FLANGE

95602-10200-00

Unavailable

20

STAY

B5Y-2331A-00-00

Unavailable

21

BOLT, BUTTON HEAD

92017-06012-00

Unavailable

22

COVER, CROWN

B5Y-23437-00-00

Unavailable

23

BOLT, SOCKET

91314-06016-00

Unavailable

24

WASHER, PLATE

90201-06105-00

Unavailable

25

HANDLEBAR SHIMMY D

B5Y-23490-00-00

Unavailable

26

NUT, SELF-LOCKING

95602-08200-00

Unavailable

27

BOLT, FLANGE

95812-08030-00

Unavailable

28

WASHER (1T1)

90201-08649-00

Unavailable

29

WASHER

5VY-26398-00-00

Unavailable
