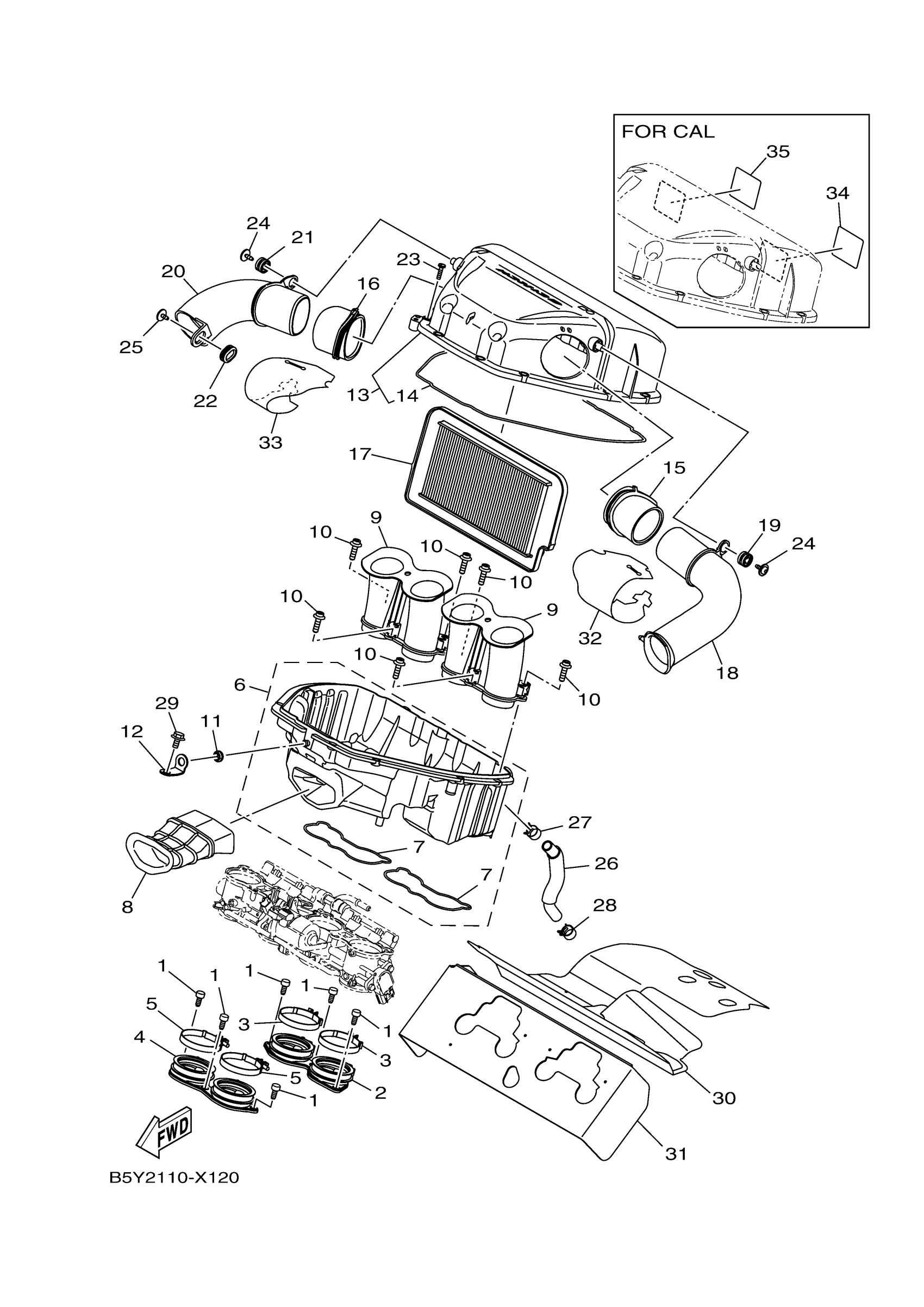

Yamaha MT10SPNS (MT10SP) BGG2 2022 INTAKE Diagram

#

Description
Price

1

BOLT (33M)

91312-06014-00

$5.60

2

JOINT, INTAKE 1

2CR-13635-00-00

Unavailable

3

HOSE CLAMP ASSY

90450-60004-00

$16.99

4

JOINT, INTAKE 2

2CR-13636-00-00

Unavailable

5

HOSE CLAMP ASSY

90450-60004-00

$16.99

6

CASE, AIR CLEANER

B5Y-14411-00-00

$150.99

7

SEAL

2CR-14457-00-00

$7.99

8

DUCT, AIR

B5Y-1443L-00-00

Unavailable

9

FUNNEL, AIR

B67-14469-01-00

Unavailable

10

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

$10.49

11

GROMMET

90480-12010-00

Unavailable

12

STAY 1

B67-14498-00-00

Unavailable

13

CASE, AIR CLEANER

B5Y-14421-00-00

$126.99

14

SEAL

B5Y-14452-00-00

$21.99

15

JOINT, AIR CLEANER

B5Y-14453-00-00

Unavailable

16

JOINT, AIR CLEANER

B5Y-14463-00-00

Unavailable

17

ELEMENT, AIR CLEAN

B5Y-14451-00-00

Unavailable

18

DUCT

B5Y-14437-10-00

Unavailable

19

DAMPER

4XV-83513-00-00

Unavailable

20

DUCT

B5Y-1443A-10-00

Unavailable

21

DAMPER

4XV-83513-00-00

Unavailable

22

GROMMET

B5Y-14435-00-00

Unavailable

23

SCREW, BINDING

98907-05020-00

Unavailable

24

SCREW, TAPPING

90167-05020-00

Unavailable

25

SCREW, TAPPING

90164-05001-00

Unavailable

26

PIPE, BREATHER 2

2CR-15393-00-00

Unavailable

27

CLIP

90467-15001-00

Unavailable

28

CLIP

90467-160A6-00

Unavailable

29

BOLT, WITH WASHER

90119-06051-00

Unavailable

30

PROTECTOR, HEAT

B5Y-12682-00-00

Unavailable

31

PROTECTOR, HEAT

B3L-12683-00-00

Unavailable

32

COVER 1

B5Y-14417-00-00

Unavailable

33

COVER 2

B5Y-14418-00-00

Unavailable

34

PLATE, ROUTING

14B-21684-01-00

Unavailable

35

PLATE, ROUTING 2

B5Y-21686-00-00

Unavailable
