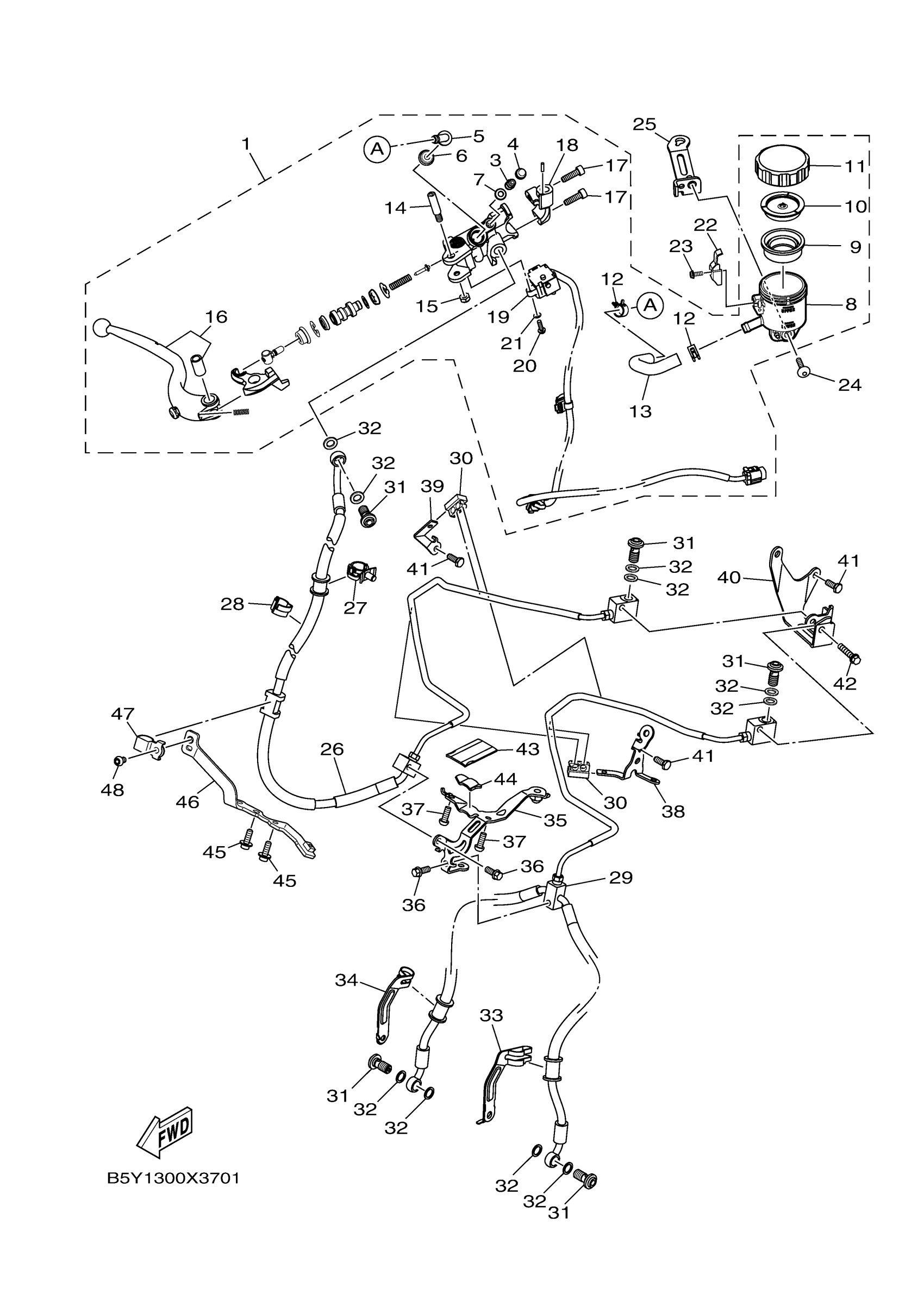

Yamaha MT10SPNS (MT10SP) BGG2 2022 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

BGG-2583T-01-00

$368.99

3

SCREW, BLEED

3YK-25824-00-00

$8.99

4

CAP

3YK-25825-00-00

Unavailable

5

JOINT

B5Y-2582A-00-00

$4.72

6

O-RING

4BP-2585F-01-00

Unavailable

7

SEAL 1

5VY-25975-00-00

$2.29

8

TANK, RESERVOIR

BAM-25894-00-00

$63.99

9

DIAPHRAGM, RESERVOIR

5VY-25854-00-00

$32.99

10

BUSH,DIAPHRAGM

5VY-25855-00-00

$5.49

11

CAP, RESERVOIR

5VY-25852-00-00

$18.49

12

CLIP

90467-120A3-00

$7.49

13

HOSE, RESERVOIR

B5Y-25895-00-00

$17.99

14

BOLT, LEVER

B5Y-2589F-00-00

Unavailable

15

NUT, SELF-LOCKING

95617-06100-00

$8.49

16

LEVER SET

BEB-W2616-10-00

$53.99

17

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

18

BRACKET, MASTER CYLINDER

B5Y-25867-10-00

Unavailable

19

FRONT STOP SWITCH

B5Y-83980-00-00

Unavailable

20

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

21

WASHER, PLAIN (646)

92990-04600-00

Unavailable

22

HOLDER

5VY-2589G-00-00

Unavailable

23

SCREW

5VY-2589H-00-00

Unavailable

24

BOLT

90111-05010-00

Unavailable

25

STAY

B5Y-2629K-00-00

Unavailable

26

BRAKE HOSE ASSY

BGG-2584A-00-00

Unavailable

27

CLAMP

90464-14013-00

Unavailable

28

CLAMP

90464-14010-00

Unavailable

29

HOSE, BRAKE

BGG-2584B-00-00

Unavailable

30

CLAMP

90464-07014-00

Unavailable

31

BOLT, UNION

90401-10172-00

Unavailable

32

GASKET

90430-10005-00

Unavailable

33

HOLDER, BRAKE HOSE

2CR-25875-00-00

Unavailable

34

HOLDER, BRAKE HOSE

2CR-25876-00-00

Unavailable

35

BRACKET

B5Y-2612E-00-00

Unavailable

36

BOLT, BUTTON HEAD

92017-06016-00

Unavailable

37

BOLT, FLANGE DEEP

95E37-06014-00

Unavailable

38

BRKT 2

B5Y-2612K-00-00

Unavailable

39

BRACKET 3

2CR-2612L-00-00

Unavailable

40

BRACKET 4

B5Y-2612M-00-00

Unavailable

41

BOLT

90101-06064-00

Unavailable

42

BOLT, FLANGE DEEP RECESS

95E32-06030-00

Unavailable

43

DAMPER

5H0-8235Y-M0-00

Unavailable

44

DAMPER, LOCATING 1

2CR-2622F-00-00

Unavailable

45

BOLT, HEXAGON SOCKET HEAD

90110-06107-00

Unavailable

46

BRACKET, HORN

B5Y-23377-00-00

Unavailable

47

CLAMP

90461-10008-00

Unavailable

48

BOLT, BUTTON HEAD

92017-06010-00

Unavailable
