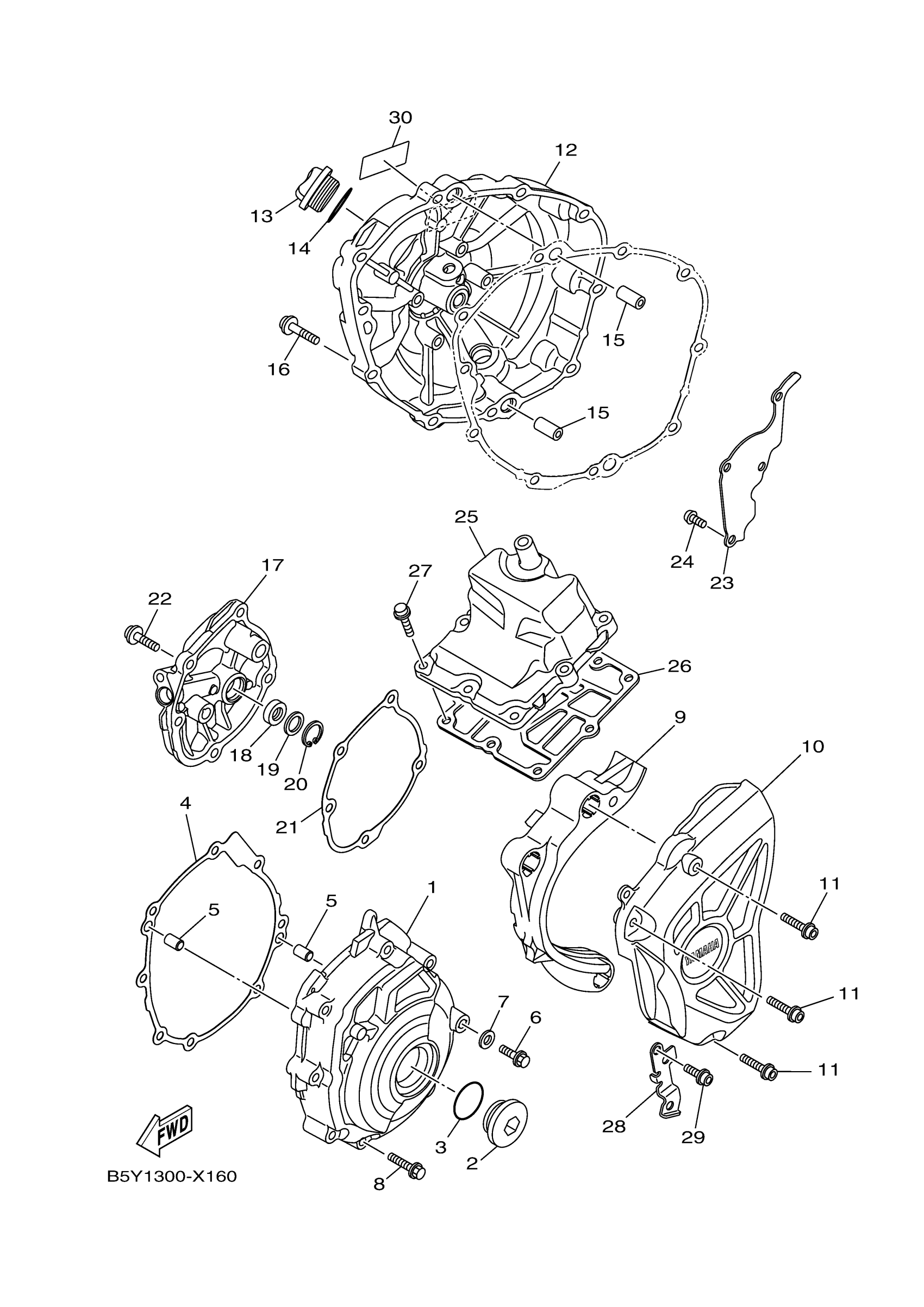

Yamaha MT10SPNS (MT10SP) BGG2 2022 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

B5Y-15411-00-00

$117.07

2

PLUG, STRAIGHT SCREW

90340-32013-00

$27.72

3

O-RING (341)

93210-32172-00

$5.39

4

GASKET, CRANKCASE

2CR-15451-00-00

$12.60

5

PIN, DOWEL

99530-08012-00

$4.89

6

BOLT, BUTTON

92014-08016-00

$6.22

7

. GASKET

90430-08143-00

$2.88

8

BOLT, HEXAGON SOCKET HEAD

90110-06403-00

$1.99

9

GUIDE, INLET

2CR-15377-10-00

$39.26

10

COVER, CHAIN CASE

2CR-15418-00-00

$21.11

11

BOLT, HEXAGON SOCKET HEAD

90110-06387-00

$2.31

12

COVER, CRANKCASE 2

B5Y-15421-00-00

Unavailable

13

PLUG, OIL

2CR-15363-01-00

$9.81

14

O-RING (25G)

93210-29574-00

$5.98

15

PIN, DOWEL(72M)

93610-20189-00

$3.23

16

BOLT, HEXAGON SOCKET HEAD

90110-06388-00

Unavailable

17

COVER, OIL PUMP

B5Y-15416-00-00

Unavailable

18

OIL SEAL

93101-10004-00

Unavailable

19

WASHER PLATE 164185720000

90201-12166-00

Unavailable

20

CIRCLIP

99009-19500-00

Unavailable

21

GASKET, OIL PUMP C

2CR-15456-00-00

Unavailable

22

BOLT, HEXAGON SOCKET HEAD

90110-06396-00

Unavailable

23

PLATE, BREATHER

2CR-11165-00-00

$3.00

24

SCREW

90149-06156-00

Unavailable

25

COVER

B5Y-15413-00-00

Unavailable

26

GASKET, CRANKCASE

2CR-15462-00-00

Unavailable

27

BOLT, HEXAGON SOCKET HEAD

90110-06387-00

$2.31

28

HOLDER

B67-15118-00-00

Unavailable

29

BOLT, HEXAGON SOCKET HEAD

90110-06341-00

Unavailable

30

OIL, LABEL

B5Y-1548B-00-00

Unavailable
