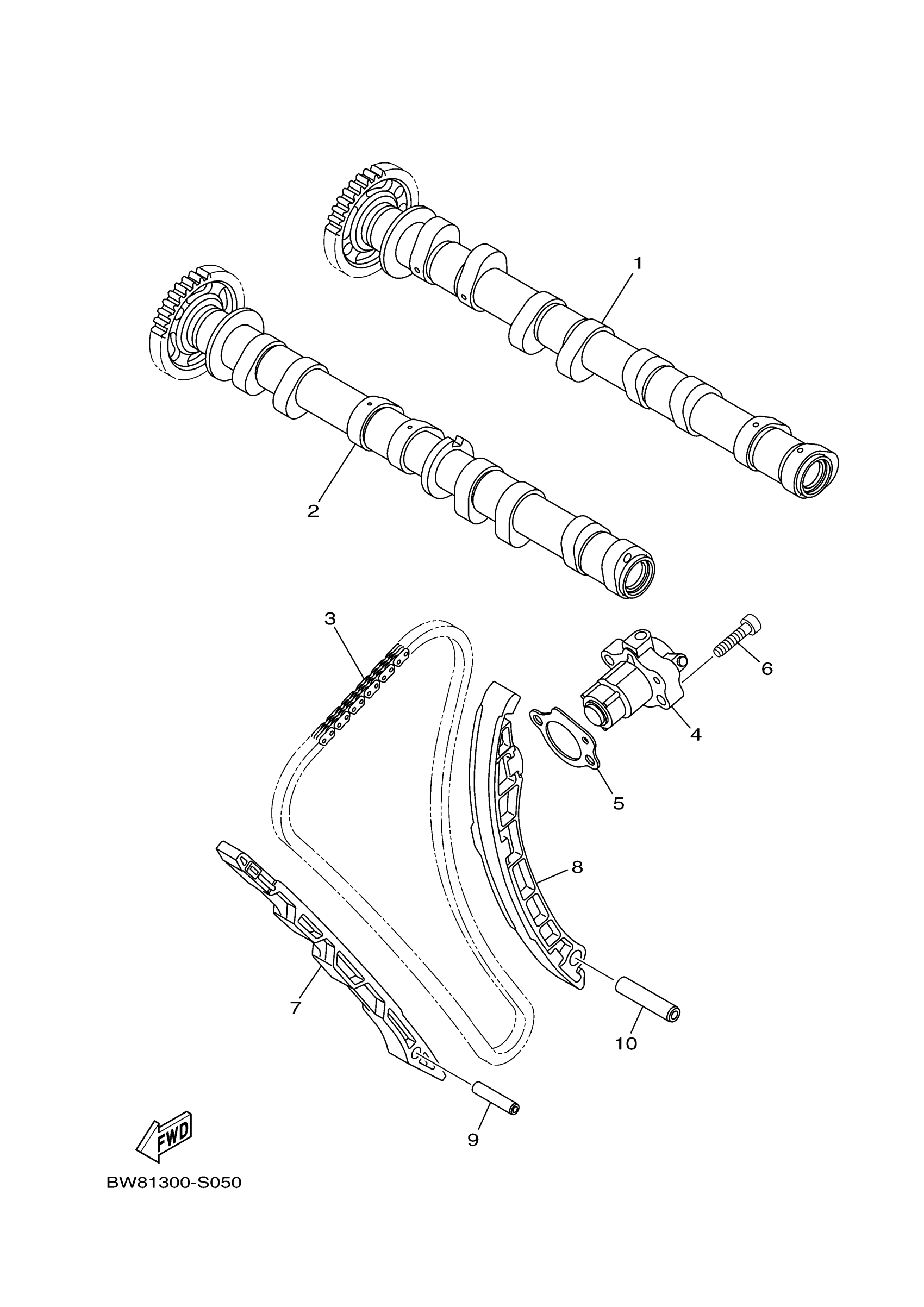

Yamaha MT10SPNS (MT10SP) BGG2 2022 CAMSHAFT & CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

B67-12170-00-00

Unavailable

2

CAMSHAFT ASSY 2

B67-12180-00-00

$383.61

3

CHAIN

94591-75128-00

Unavailable

4

TENSIONER ASSY, CA

2CR-12210-02-00

$225.89

5

GASKET, TENSIONER CASE

14B-12213-00-00

$6.29

6

BOLT,SOCKET

91317-06025-00

$1.91

7

DAMPER, CHAIN 1

2CR-12251-00-00

$14.81

8

CHAIN DAMPER ASSY

2CR-12250-00-00

$74.83

9

SHAFT, TENSIONER

2CR-12247-00-00

Unavailable

10

SHAFT 2

2CR-12257-00-00

$12.22
