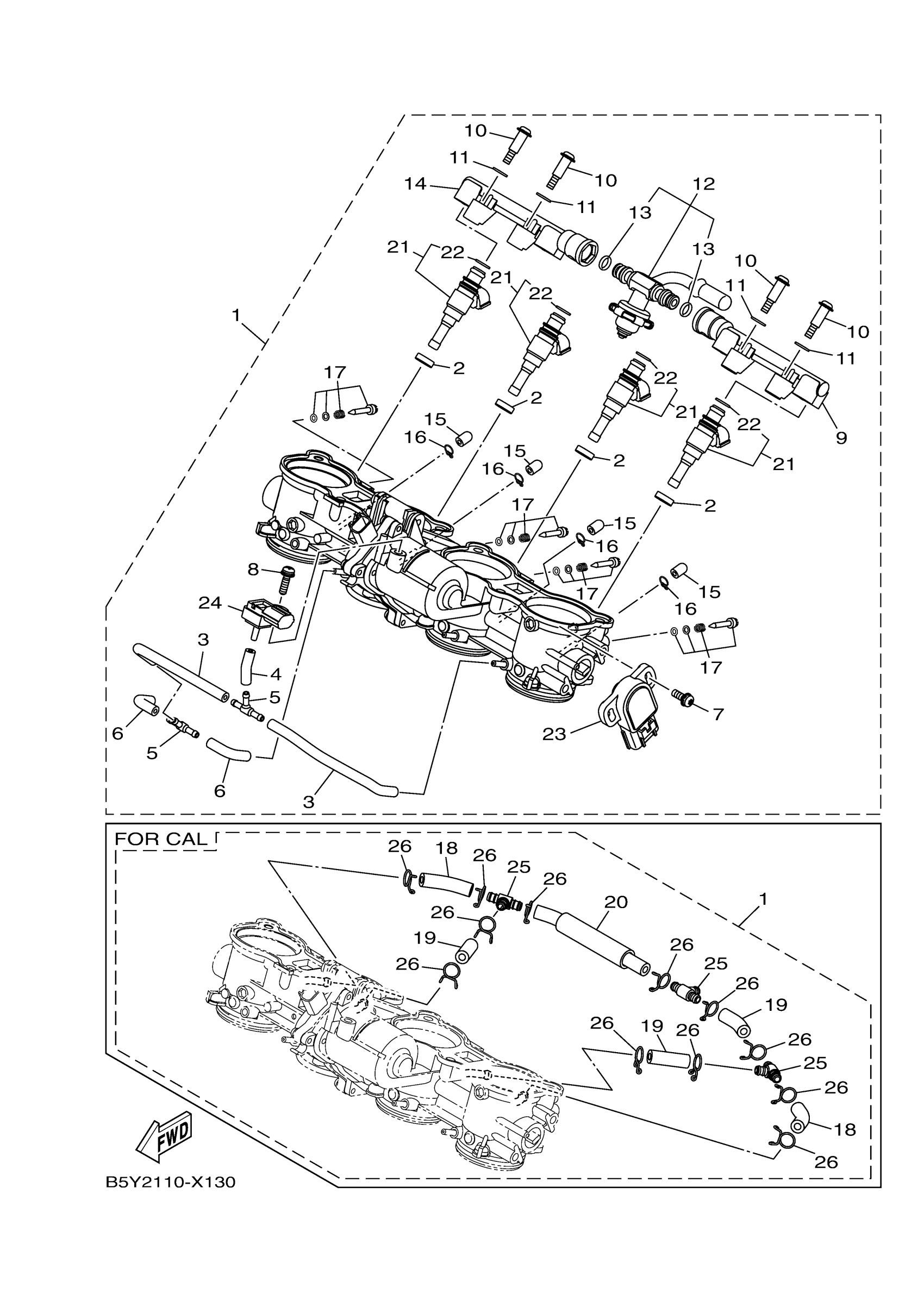

Yamaha MT10SGY (MT10) B5YN 2025 INTAKE 2 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

B5Y-13750-10-00

$1,948.99

2

GASKET, MANIFOLD

8FP-13556-00-00

$13.99

3

HOSE

5JW-14987-00-00

Unavailable

4

PIPE 1

5FL-14348-10-00

$5.49

5

. PIPE, JOINT 1

68V-24376-00-00

Unavailable

6

PIPE

8FP-14349-00-00

$13.49

7

SCREW

8CC-14216-10-00

$7.99

8

SCREW

2C0-14216-00-00

$3.28

9

PIPE, INLET

2CR-1393A-00-00

Unavailable

10

BOLT 1

14B-13573-00-00

$6.99

11

GASKET

363-14198-00-00

$10.99

12

JOINT, THROTTLE BODY 1

B67-13795-00-00

Unavailable

13

O-RING

39P-14147-00-00

$7.99

14

PIPE, INLET 2

2CR-1393B-00-00

Unavailable

15

CAP

895-14169-00-00

$5.49

16

CLIP, PIPE

8A7-14139-00-00

Unavailable

17

PILOT SCREW SET

2C0-14105-00-00

Unavailable

21

INJECTOR ASSY

4C8-13761-00-00

Unavailable

22

O-RING

5PS-14147-00-00

Unavailable

23

THROTTLE SENSOR AS

B3L-85885-01-00

Unavailable

24

SENSOR, PRESSURE

1WS-82380-00-00

Unavailable
