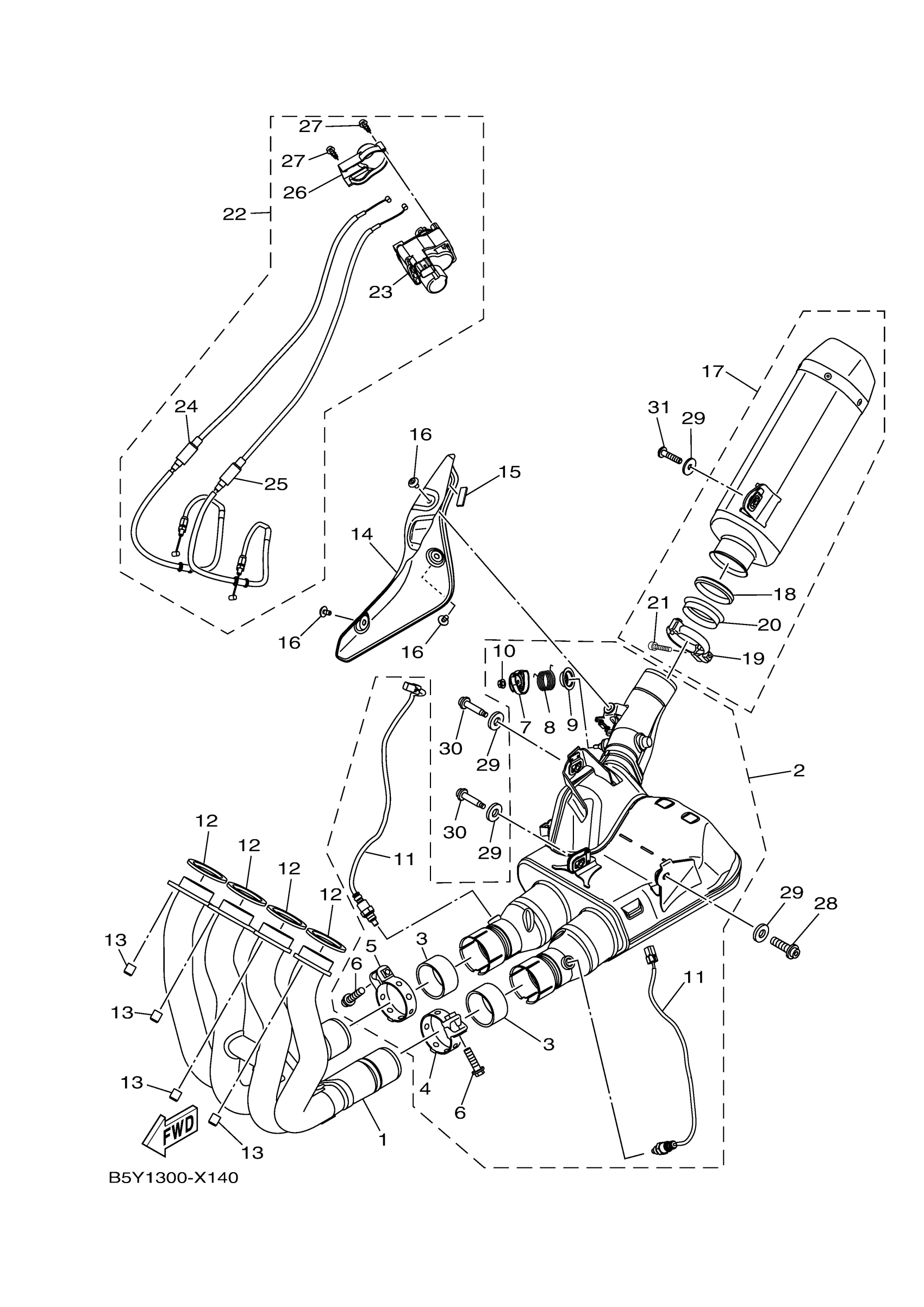

Yamaha MT10SGY (MT10) B5YN 2025 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE COMP.

B60-14602-00-00

Unavailable

2

CHAMBER ASSY

B5Y-14730-10-00

$1,712.99

3

GASKET, MUFFLER

5YU-14714-10-00

$44.99

4

BAND, MUFFLER

39P-14715-00-00

$36.99

5

BAND, MUFFLER

2CR-14715-00-00

$33.99

6

BOLT, FLANGE(3EF)

95024-08035-00

$8.49

7

PULLEY

2C0-14865-00-00

$28.99

8

SPRING

2C0-14856-00-00

Unavailable

9

SEAT, SPRING

2D1-14843-00-00

Unavailable

10

NUT

90179-06063-00

Unavailable

11

SENSOR, OXYGEN

2CR-8592A-20-00

$227.99

12

GASKET, EXHAUST PI

2CR-14613-00-00

$10.99

13

NUT

90179-08442-00

$8.49

14

PROTECTOR, MUFFLER

B5Y-14718-00-00

Unavailable

15

SEAT

B5Y-1475P-00-00

$1.69

16

BOLT,HEX. SOCKET B

90111-06153-00

Unavailable

17

SILENCER ASSY

B5Y-14750-00-00

Unavailable

18

GASKET, EXHAUST PI

2CR-14623-00-00

Unavailable

19

BAND, MUFFLER

2CR-14725-00-00

Unavailable

20

RING, STOPPER

2CR-14618-00-00

Unavailable

21

BOLT, HEXAGON SOCKET HEAD

90110-06343-00

Unavailable

22

SERVO MOTOR COMP

B5Y-4616A-01-00

Unavailable

23

SERVO MOTOR ASSY

B5Y-85820-01-00

Unavailable

24

CABLE, PULLEY 1

B5Y-1133E-00-00

Unavailable

25

CABLE, PULLEY 2

B5Y-1133F-00-00

Unavailable

26

COVER, SERVO MOTOR

5VY-85829-01-00

Unavailable

27

SCREW, PANHEAD TAPPING (682)

97780-50514-00

Unavailable

28

BOLT, HEXAGON SOCKET HEAD

90110-08099-00

Unavailable

29

WASHER, PLATE(3DM)

90201-087G2-00

Unavailable

30

BOLT

90109-08238-00

Unavailable

31

BOLT, HEXAGON SOCKET HEAD(38V)

90110-08071-00

Unavailable
