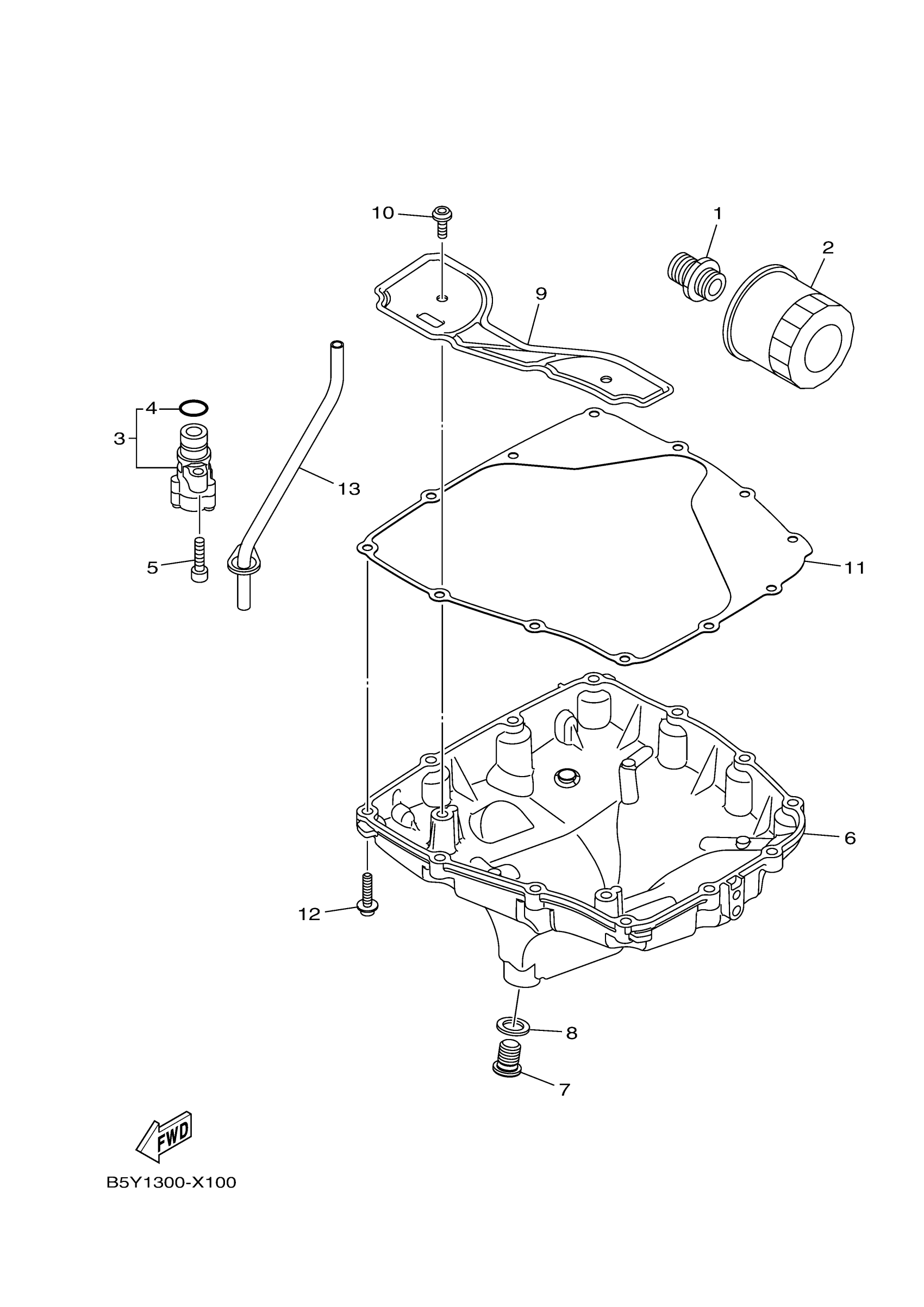

Yamaha MT10RGY (MT10) B5YG 2024 OIL CLEANER Diagram

#

Description
Price

1

BOLT, UNION

BME-12858-00-00

$41.99

2

ELEMENT ASSY, OIL

5GH-13440-90-00

Unavailable

3

RELIEF VALVE ASSY

2CR-13490-00-00

$93.99

4

O-RING (22U)

93210-15566-00

$7.49

5

BOLT,SOCKET

91317-06025-00

$5.60

6

COVER, STRAINER

B5Y-13417-00-00

$170.99

7

PLUG, STRAIGHT SCR

90340-14019-00

$5.60

8

GASKET

90430-14005-00

$5.60

9

PLATE, BAFFLE LOWER

2CR-13337-01-00

Unavailable

10

BOLT

90111-06038-00

$4.29

11

GASKET, STRAINER COVER

BX4-13414-00-00

$44.99

12

BOLT, HEXAGON SOCKET HEAD

90110-06387-00

$4.29

13

PIPE, DELIVERY 1

2CR-13161-00-00

$19.99
