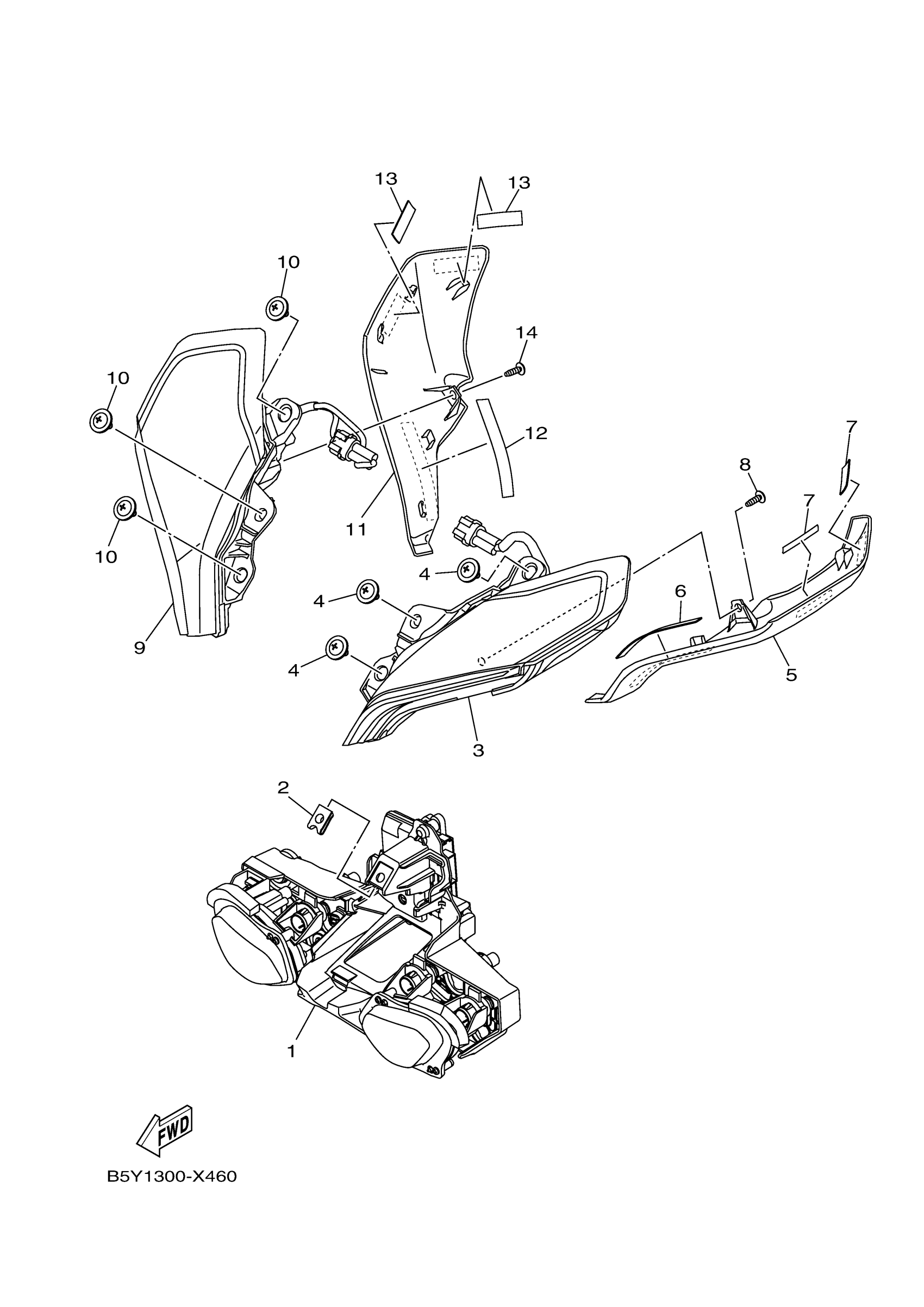

Yamaha MT10RGY (MT10) B5YG 2024 HEADLIGHT Diagram

#

Description

Price

1

HEADLIGHT ASSY

B5Y-84300-00-00

Unavailable

2

NUT, SPRING

90183-060A6-00

$5.49

3

PILOT LIGHT ASSY 1

B5Y-84301-01-00

Unavailable

4

SCREW, TAPPING

90164-05001-00

$8.49

5

PANEL 1

B5Y-2835U-00-P3

Unavailable

6

SEAL 1

1RC-2111D-00-00

$4.63

7

TAPE 1

B5Y-2173T-00-00

Unavailable

8

SCREW, TRUSS TAP.

97707-40014-00

Unavailable

9

PILOT LIGHT ASSY 2

B5Y-84302-01-00

$406.99

10

SCREW, TAPPING

90164-05001-00

$8.49

11

PANEL 2

B5Y-2835V-00-P3

$50.99

12

SEAL 1

1RC-2111D-00-00

$4.63

13

TAPE 1

B5Y-2173T-00-00

Unavailable

14

SCREW, TRUSS TAP.

97707-40014-00

Unavailable
