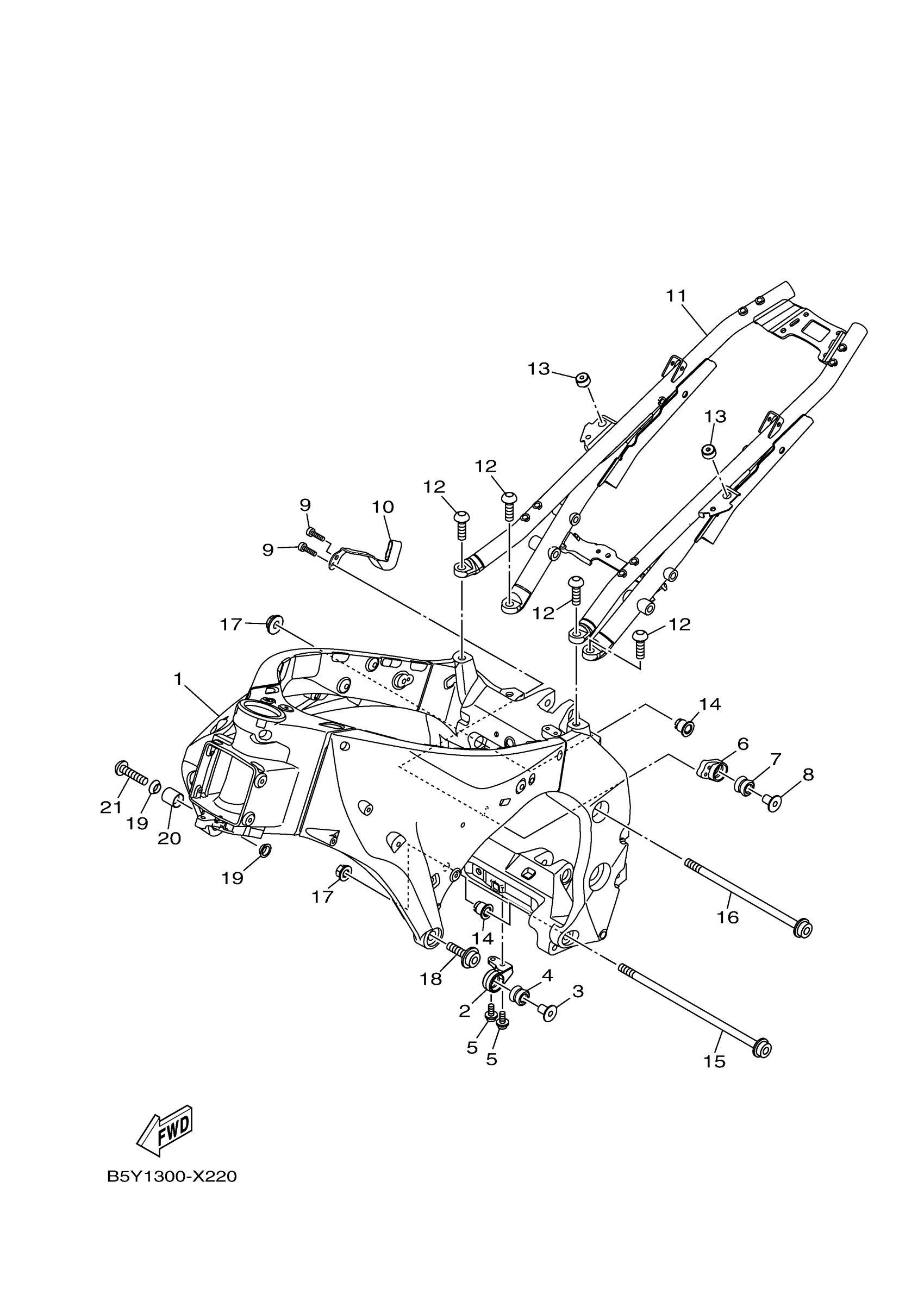

Yamaha MT10RGY (MT10) B5YG 2024 FRAME Diagram
#
Description
Price
1
FRAME COMP.
B67-21110-20-00
Unavailable
2
BRACKET, MUFFLER 1
B67-21435-00-00
Unavailable
5
BOLT, HEXAGON SOCKET HEAD
90110-06248-00
Unavailable
10
BRKT., 5
B5Y-2148Y-00-00
Unavailable
11
REAR FRAME COMP.
B5Y-21190-00-00
Unavailable
16
BOLT, HEXAGON SOCK
90110-12008-00
Unavailable
17
Nut
90179-12004-00
Unavailable
18
BOLT, HEXAGON SOCK
90110-12007-00
Unavailable
19
BOSS, ENGINE MOUNT
14B-21414-00-00
Unavailable
20
BOSS, ENGINE MOUNT
14B-21424-00-00
Unavailable
21
BOLT,HEX. SOCKET B
90111-12003-00
Unavailable
