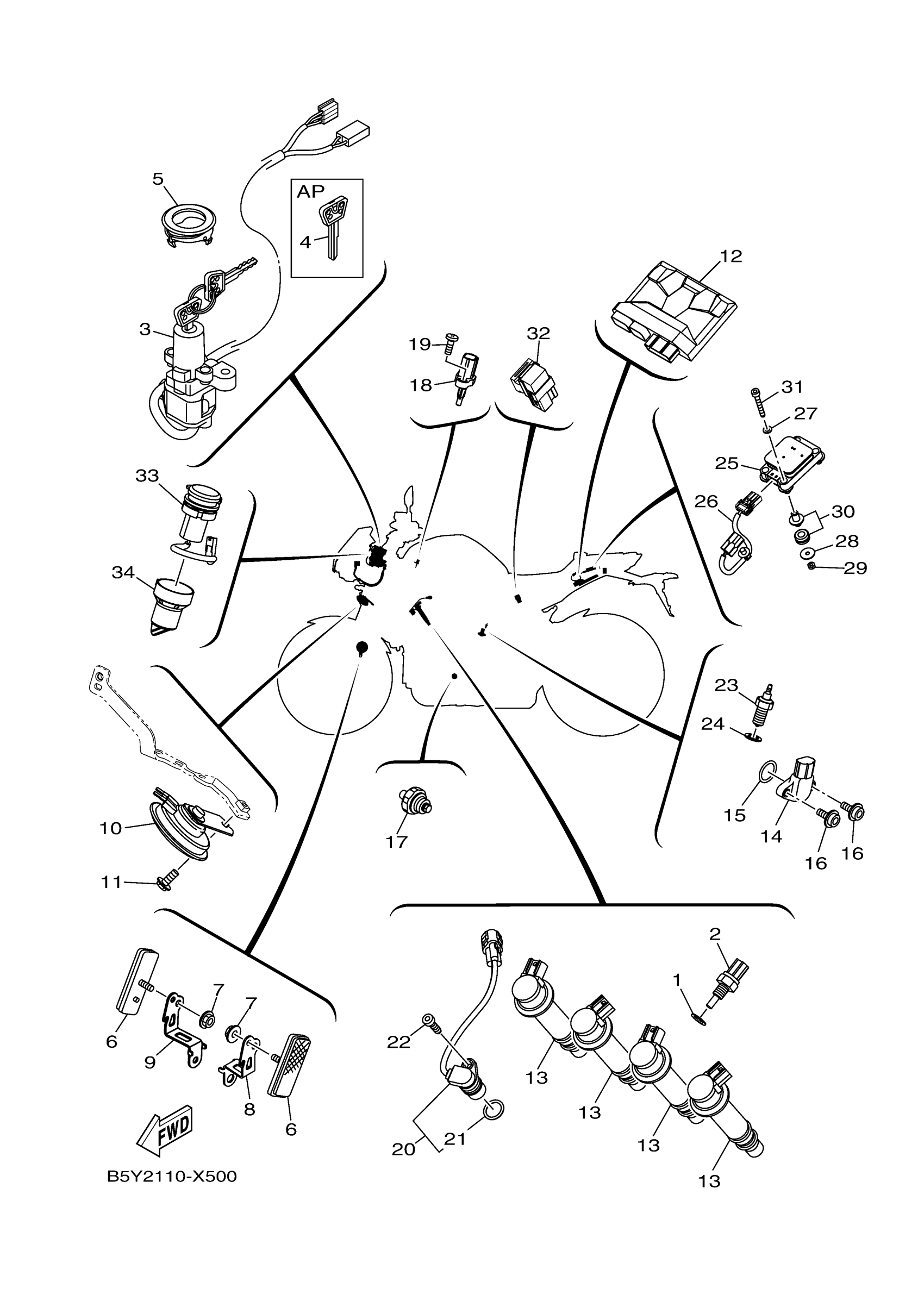

Yamaha MT10RGY (MT10) B5YG 2024 ELECTRICAL 1 Diagram

#

Description
Price

1

GASKET

90430-10004-00

$7.49

2

THERMO UNIT

52B-H3591-00-00

$34.99

3

MAIN SWITCH STEERING LOCK

B5Y-82501-11-00

$199.99

4

BLANK KEY

4BH-82511-09-00

$30.99

5

CAP, SWITCH

36P-82552-00-00

$15.49

6

FRONT REFLECTOR ASSY

11H-85110-01-00

$27.99

7

NUT, FLANGE

95702-05500-00

$0.38

8

BRACKET, REFLECTOR

2CR-85112-00-00

Unavailable

9

BRACKET, REFLECTOR

2CR-85122-00-00

$27.99

10

HORN

B67-83371-00-00

$70.99

11

BOLT, FLANGE

95817-06012-00

$1.43

12

ENGINE CONTROL UNIT ASSY

B5Y-8591A-11-00

$953.99

13

IGNITION COIL ASSY

B67-82310-00-00

Unavailable

14

SENSOR, GEAR POSITION

2CR-85899-10-00

$113.99

15

O-RING

93210-17008-00

Unavailable

16

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

Unavailable

17

OIL PRESSURE SWITCH ASSY

1WS-82504-01-00

Unavailable

18

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

Unavailable

19

SCREW, BIND

98902-05014-00

Unavailable

20

SENSOR, CAM POSITION

B3L-85896-01-00

Unavailable

21

O-RING

4D9-81168-00-00

Unavailable

22

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

23

NEUTRAL SWITCH ASSY

3GB-82540-01-00

Unavailable

24

GASKET (1KH,1.0T)

90430-10148-00

Unavailable

25

INERTIAL MEASURE, UNIT ASSY

B5Y-8593A-00-00

Unavailable

26

WIRE, SUB LEAD

B5Y-82509-00-00

Unavailable

27

WASHER, PLAIN (646)

92990-04600-00

Unavailable

28

WASHER, PLAIN

2CR-81162-00-00

Unavailable

29

NUT, U (7LY)

95617-04100-00

Unavailable

30

GROMMET AND COLLAR

B7N-W8A8D-00-00

Unavailable

31

BOLT, HEXAGON SOCKET HEAD

91312-04030-00

Unavailable

32

RELAY ASSY

5DM-81950-01-00

Unavailable

33

TERMINAL COMP.

BD5-8254B-00-00

Unavailable

34

COVER, TERMINAL

BD5-81916-00-00

Unavailable
