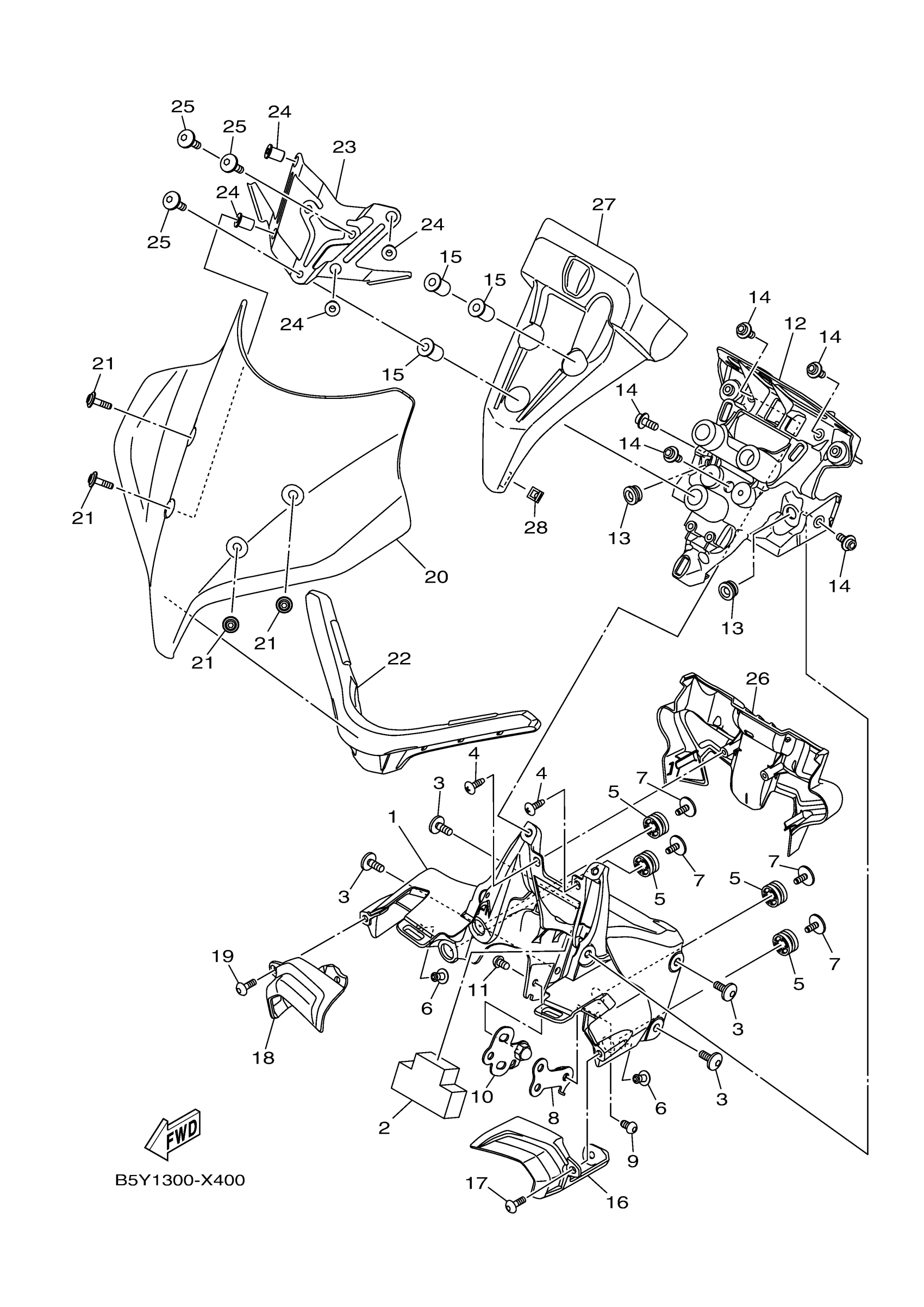

Yamaha MT10RGY (MT10) B5YG 2024 COWLING 1 Diagram

#

Description
Price

1

STAY 1

B5Y-28356-00-00

Unavailable

2

DAMPER

B5Y-28371-00-00

$3.50

3

BOLT,HEX. SOCKET BUTTON

90111-06151-00

$3.18

4

SCREW, TAPPING

97702-50016-00

$2.39

5

DAMPER

4XV-83513-00-00

$7.99

6

RIVET

90269-06019-00

$3.18

7

SCREW, TAPPING

90164-05001-00

$8.49

8

BRACKET 1

B5Y-2836A-00-00

Unavailable

9

BOLT

90111-06031-00

$8.49

10

BRACKET 2

B5Y-2836E-00-00

Unavailable

11

BOLT

90111-06031-00

$8.49

12

STAY 2

B5Y-28357-00-00

Unavailable

13

GROMMET

90480-10003-00

$8.49

14

BOLT, HEXAGON SOCKET HEAD

90110-06122-00

$7.49

15

NUT

90179-06072-00

$5.60

16

PLATE 1

B5Y-28396-00-00

Unavailable

17

BOLT,HEX. SOCKET BUTTON

90111-05009-00

Unavailable

18

PLATE 2

B5Y-28397-00-00

Unavailable

19

BOLT,HEX. SOCKET BUTTON

90111-05009-00

Unavailable

20

COVER, UPPER 1

B5Y-23121-00-00

Unavailable

21

BOLT,HEX. SOCKET BUTTON

90111-05063-00

Unavailable

22

DEFLECTOR

B5Y-283M3-00-00

Unavailable

23

BRACKET 3

B5Y-2836F-00-00

Unavailable

24

NUT(1KT)

90179-05523-00

Unavailable

25

SCREW

90149-06104-00

Unavailable

26

PANEL, INNER 1

B5Y-2836K-00-00

Unavailable

27

COVER, METER

B5Y-83559-00-00

Unavailable

28

CLIP

90468-040A0-00

Unavailable
