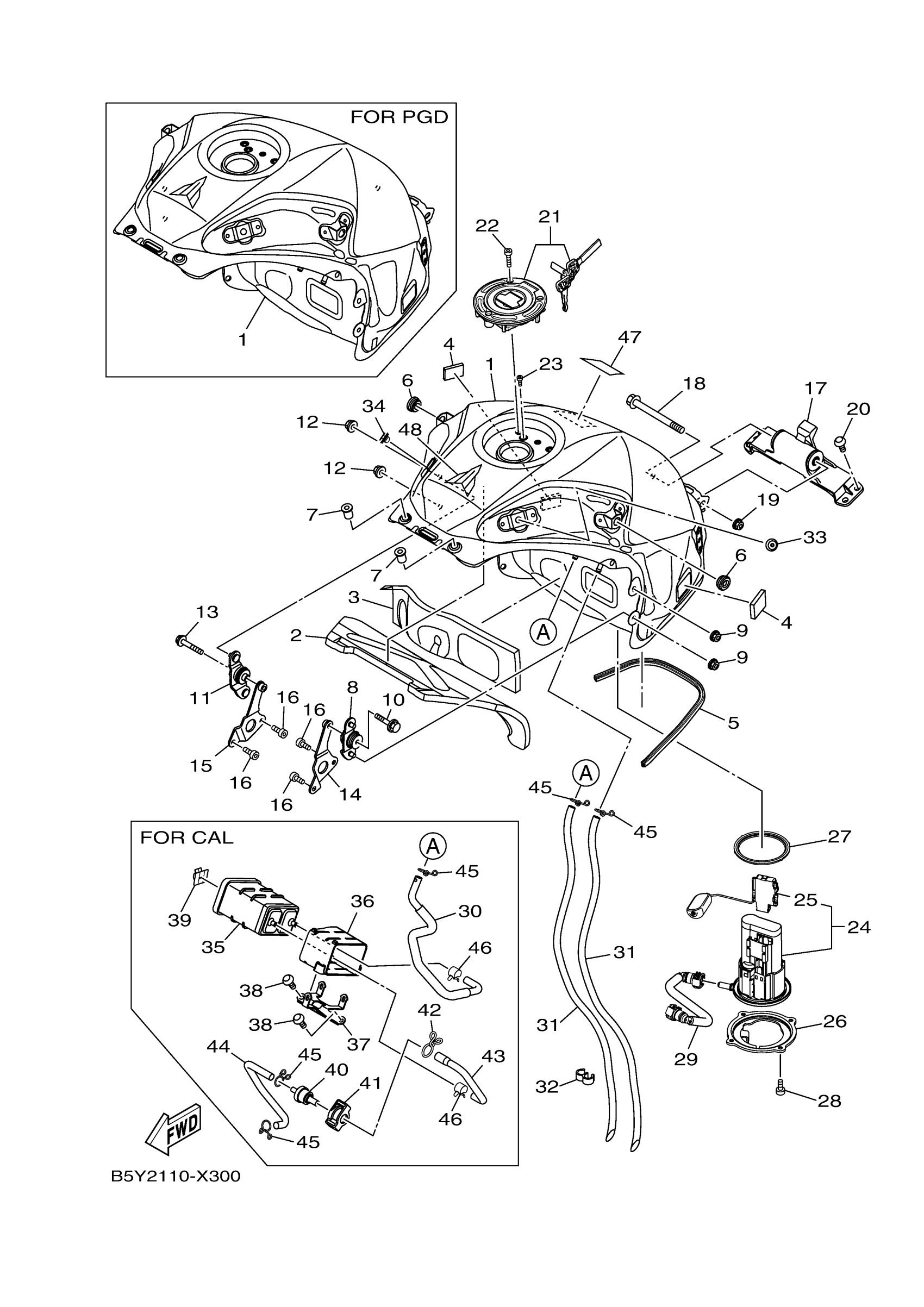

Yamaha MT10PGY (MT10) B5Y90 2023 FUEL TANK Diagram
#
Description
Price
2
DAMPER, PLATE 1
B5Y-2414H-00-00
Unavailable
6
GROMMET
90480-13031-00
Unavailable
8
TANK BRACKET ASSY
B67-24104-00-00
Unavailable
14
BRACKET, TANK FITTING
B67-2412Y-00-00
Unavailable
16
BOLT,SOCKET HEAD
91314-06020-00
Unavailable
17
BRACKET, SEAT
B67-2412F-00-00
Unavailable
18
BOLT, FLANGE
95812-06090-00
Unavailable
20
BOLT,HEX. SOCKET BUTTON
90111-06151-00
Unavailable
21
CAP ASSY
2CR-24602-01-00
Unavailable
22
BOLT, HEXAGON SOCKET HEAD(1FM)
90110-05112-00
Unavailable
23
BOLT
91312-05010-00
Unavailable
24
FUEL PUMP COMP.
B67-13907-10-00
Unavailable
25
SENDER UNIT ASSY,
B67-85752-10-00
Unavailable
26
BRACKET, FUEL PUMP
1WS-24491-01-00
Unavailable
27
O-RING
1RC-24486-00-00
Unavailable
28
BOLT
91312-05010-00
Unavailable
29
PIPE, FUEL 1
B5Y-13971-00-00
Unavailable
31
PIPE 2
B67-24312-00-00
Unavailable
32
CLAMP(6M7)
90464-09M31-00
Unavailable
33
RIVET
90269-09006-00
Unavailable
34
RIVET
90269-09006-00
Unavailable
45
CLIP
90467-090A2-00
Unavailable
47
LABEL, WARNING GENERAL INFO.
29P-2816R-01-00
Unavailable
48
EMBLEM 1
B67-24161-01-00
Unavailable
