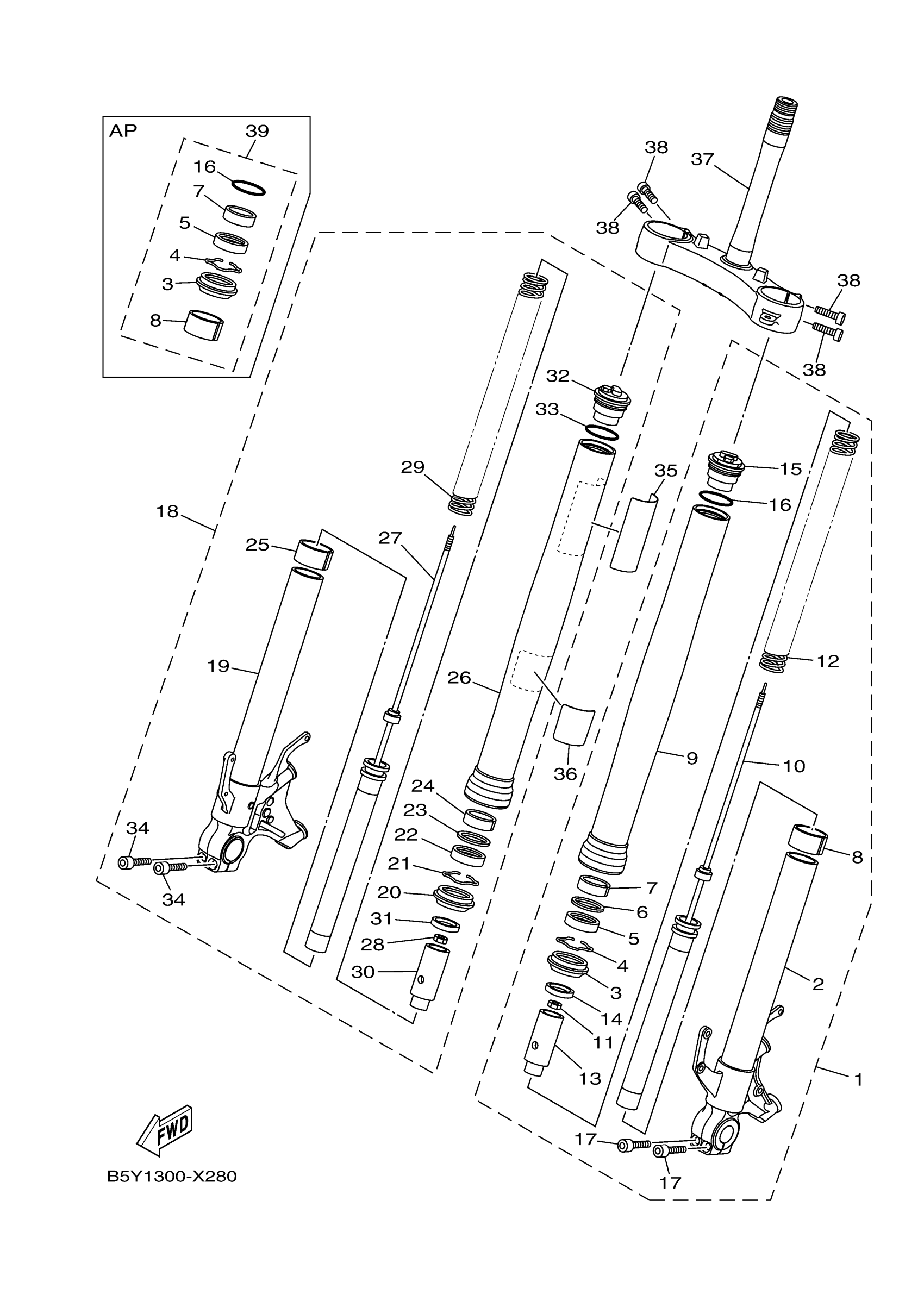

Yamaha MT10PGY (MT10) B5Y90 2023 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L

B5Y-23102-00-00

$1,213.99

2

INNER TUBE COMP.1

2CR-23110-01-00

Unavailable

3

SEAL, DUST

4PU-23144-00-00

$24.99

4

RING, SNAP

4V4-23153-L0-00

$9.99

5

OIL SEAL

4PU-23145-01-00

$25.99

6

WASHER

4V4-23146-L0-00

$6.99

7

METAL, SLIDE 1

2CR-23125-00-00

$11.99

8

PISTON, FRONT FORK

2CR-23171-00-00

$27.99

9

TUBE, OUTER

2CR-23136-10-00

$345.99

10

CYLINDER COMP., FR

B5Y-23170-00-00

Unavailable

11

NUT

3LC-23357-00-00

$6.99

12

SPRING, FRONT FORK

B5Y-23141-00-00

Unavailable

13

SPACER

2CR-23118-00-00

Unavailable

14

GUIDE, SPRING

2CR-23117-00-00

Unavailable

15

BOLT, CAP

2CR-23111-10-00

$298.99

16

O-RING

39P-23147-00-00

Unavailable

17

BOLT,SOCKET

91314-08040-00

Unavailable

18

FRONT FORK ASSY (R

B5Y-23103-00-00

Unavailable

19

INNER TUBE COMP.2

2CR-23120-01-00

Unavailable

20

SEAL, DUST

4PU-23144-00-00

$24.99

21

RING, SNAP

4V4-23153-L0-00

$9.99

22

OIL SEAL

4PU-23145-01-00

$25.99

23

WASHER

4V4-23146-L0-00

$6.99

24

METAL, SLIDE 1

2CR-23125-00-00

$11.99

25

PISTON, FRONT FORK

2CR-23171-00-00

$27.99

26

TUBE, OUTER

2CR-23136-10-00

$345.99

27

CYLINDER COMP., FR

B5Y-23170-00-00

Unavailable

28

NUT

3LC-23357-00-00

$6.99

29

SPRING, FRONT FORK

B5Y-23141-00-00

Unavailable

30

SPACER

2CR-23118-00-00

Unavailable

31

GUIDE, SPRING

2CR-23117-00-00

Unavailable

32

BOLT, CAP

2CR-23111-10-00

$298.99

33

O-RING

39P-23147-00-00

Unavailable

34

BOLT,SOCKET

91314-08040-00

Unavailable

35

PROTECTOR

BEB-23472-00-00

Unavailable

36

SEAL

5PX-21669-01-00

Unavailable

37

UNDER BRACKET COMP

B5Y-23340-00-00

Unavailable

38

BOLT,SOCKET

91314-08030-00

Unavailable

39

FORK SEAL KIT (ONE FORK)

B67-W003B-00-00

Unavailable
