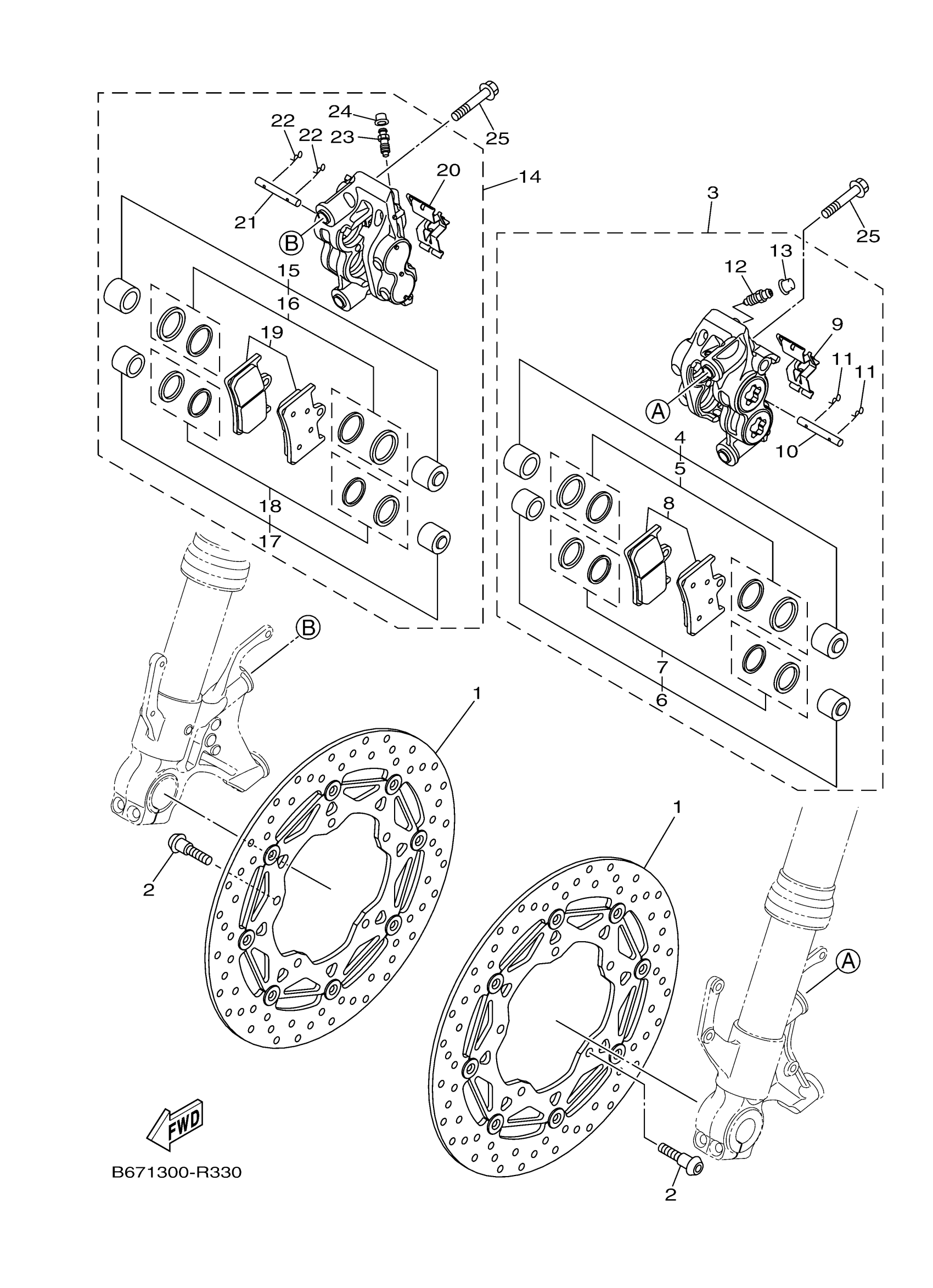

Yamaha MT10PGY (MT10) B5Y90 2023 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

2CR-2581T-00-00

Unavailable

2

SCREW

90149-06045-00

$8.49

3

CALIPER ASSY (LEFT)

B67-2580T-00-00

Unavailable

4

PISTON ASSY, CALIPER

4SV-25802-10-00

$196.99

5

CALIPER SEAL KIT

3GM-25803-10-00

$53.99

6

PISTON ASSY, CALIPER

4SV-25802-00-00

$155.99

7

CALIPER SEAL KIT

3MA-25803-10-00

$55.99

8

BRAKE PAD KIT

2C0-25805-00-00

$61.99

9

SUPPORT, PAD

13S-25919-00-00

$27.99

10

PIN, PAD

4SV-25924-00-00

$42.99

11

CLIP, PAD PIN

3GM-25925-00-00

$11.99

12

SCREW, BLEED

1J3-25824-00-00

$5.49

13

CAP

306-25825-01-00

$9.99

14

CALIPER ASSY (RIGHT)

B67-2580U-00-00

Unavailable

15

PISTON ASSY, CALIPER

4SV-25802-10-00

$196.99

16

CALIPER SEAL KIT

3GM-25803-10-00

$53.99

17

PISTON ASSY, CALIPER

4SV-25802-00-00

$155.99

18

CALIPER SEAL KIT

3MA-25803-10-00

$55.99

19

BRAKE PAD KIT

2C0-25805-00-00

$61.99

20

SUPPORT, PAD

13S-25919-00-00

$27.99

21

PIN, PAD

4SV-25924-00-00

$42.99

22

CLIP, PAD PIN

3GM-25925-00-00

$11.99

23

SCREW, BLEED

5VS-25824-00-00

Unavailable

24

CAP

306-25825-01-00

$9.99

25

BOLT, FLANGE

90105-10440-00

Unavailable
