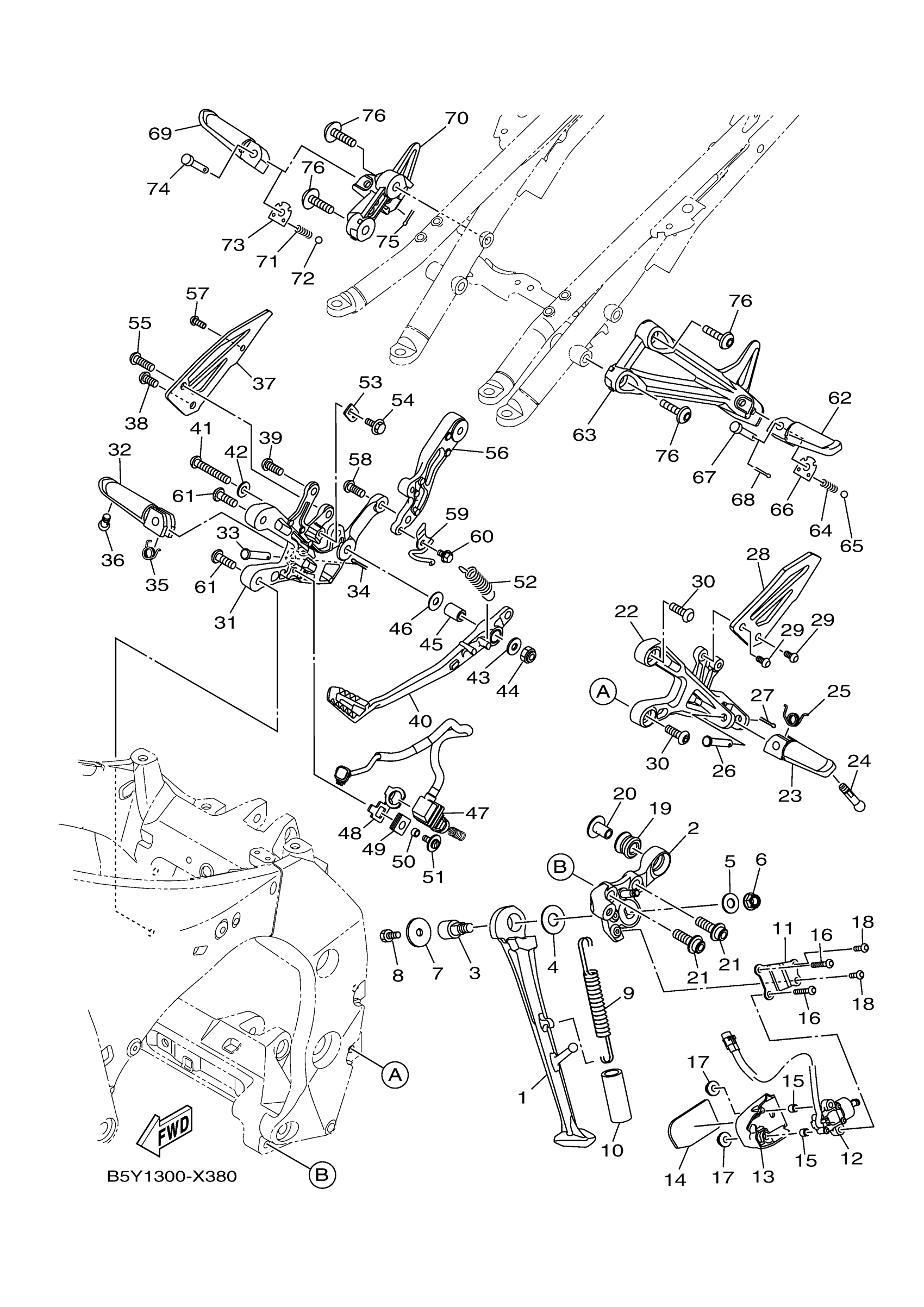

Yamaha MT10NGY (MT10) B5Y20 2022 STAND & FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

B67-27311-00-00

Unavailable

2

BRACKET, SIDE STAND

B5Y-27321-00-00

Unavailable

3

GUIDE, SIDE STAND

B3L-27351-00-00

$37.99

4

WASHER, PLATE (22F)

90201-146F9-00

$7.49

5

WASHER, PLATE

90201-10035-00

$4.19

6

NUT, S/L FLANGE

95602-10200-00

$4.82

7

WASHER, PLATE

90201-08050-00

$5.60

8

BOLT

90101-08065-00

Unavailable

9

SPRING, TENSION

90506-20032-00

Unavailable

10

HOSE (L60)

90445-197J2-00

$4.61

11

BRACKET, SENSOR 1

B3L-27961-00-00

Unavailable

12

SWITCH, SIDE STAND

BN6-82566-01-00

Unavailable

13

COVER 1

B3L-27453-00-00

Unavailable

14

SEAT 1

B3L-27498-00-00

Unavailable

15

COLLAR

90387-05025-00

$7.49

16

BOLT, BUTTON HEAD

92012-05030-00

Unavailable

17

NUT, S/L FLANGE

95607-05200-00

Unavailable

18

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

Unavailable

19

DAMPER, MUFFLER

5VY-14747-00-00

Unavailable

20

COLLAR

90387-08021-00

Unavailable

21

BOLT, HEXAGON SOCKET HEAD

90110-10026-00

Unavailable

22

BRACKET 2

B67-27442-10-00

Unavailable

23

FOOTREST

3XV-27451-02-00

Unavailable

24

BOLT

90109-08202-00

Unavailable

25

SPRING, TORSION

90508-18134-00

Unavailable

26

PIN, CLEVIS

91702-08040-00

Unavailable

27

PIN, COTTER

91490-25020-00

Unavailable

28

PLATE 1

B67-27445-10-00

Unavailable

29

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

30

BOLT

90109-085G6-00

Unavailable

31

BRACKET 3

B67-27443-10-00

Unavailable

32

FOOTREST

3XV-27461-02-00

Unavailable

33

PIN, CLEVIS

91702-08040-00

Unavailable

34

PIN, COTTER

91490-25020-00

Unavailable

35

SPRING, TORSION

90508-18135-00

Unavailable

36

BOLT

90109-08202-00

Unavailable

37

PLATE 2

B67-27446-10-00

Unavailable

38

BOLT, BUTTON HEAD

92012-08016-00

Unavailable

39

BOLT, BUTTON HEAD

92012-08020-00

Unavailable

40

PEDAL, BRAKE

B67-27211-00-00

Unavailable

41

BOLT, BUTTON HEAD

92012-08050-00

Unavailable

42

. WASHER

92902-08200-00

Unavailable

43

WASHER, PLATE

90201-08048-00

Unavailable

44

NUT, SELF-LOCKING (3Y2)

90185-08089-00

Unavailable

45

COLLAR

90387-08102-00

Unavailable

46

WASHER 6154275100

90201-08103-00

Unavailable

47

STOP SWITCH ASSY

B5Y-82530-00-00

Unavailable

48

STAY, STOP SWITCH

B5Y-2144G-00-00

Unavailable

49

GROMMET(4SV)

90480-12607-00

Unavailable

50

COLLAR

90387-06M16-00

Unavailable

51

SCREW, PANHEAD W/WASHER (22F)

90159-06082-00

Unavailable

52

SPRING, TENSION

90506-23027-00

Unavailable

53

BRACKET 1

B67-27432-00-00

Unavailable

54

BLOT, FLANGE DEEP RECESS

95D32-06010-00

Unavailable

55

BOLT, BUTTON HEAD

92012-08025-00

Unavailable

56

STAY, MUFFLER 3

B5Y-21487-00-00

Unavailable

57

BOLT, BUTTON HEAD

92012-06014-00

Unavailable

58

BOLT, BUTTON HEAD

92012-08020-00

Unavailable

59

BRACKET 4

B5Y-2148X-00-00

Unavailable

60

BLOT, FLANGE DEEP RECESS

95D32-06010-00

Unavailable

61

BOLT

90109-085G6-00

Unavailable

62

FOOTREST, REAR 1

3XV-27431-01-00

Unavailable

63

BRACKET 4

1RC-2741L-02-00

Unavailable

64

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

65

BALL

93501-04011-00

Unavailable

66

WASHER, SPECIAL

5VX-27437-00-00

Unavailable

67

PIN, CLEVIS

91702-08040-00

Unavailable

68

PIN, COTTER

91490-25020-00

Unavailable

69

FOOTREST, REAR 2

3XV-27441-11-00

Unavailable

70

BRACKET 5

B67-2742L-01-00

Unavailable

71

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

72

BALL

93501-04011-00

Unavailable

73

WASHER, SPECIAL

5VX-27437-00-00

Unavailable

74

PIN, CLEVIS

91702-08040-00

Unavailable

75

PIN, COTTER

91490-25020-00

Unavailable

76

BOLT

90109-085G6-00

Unavailable
