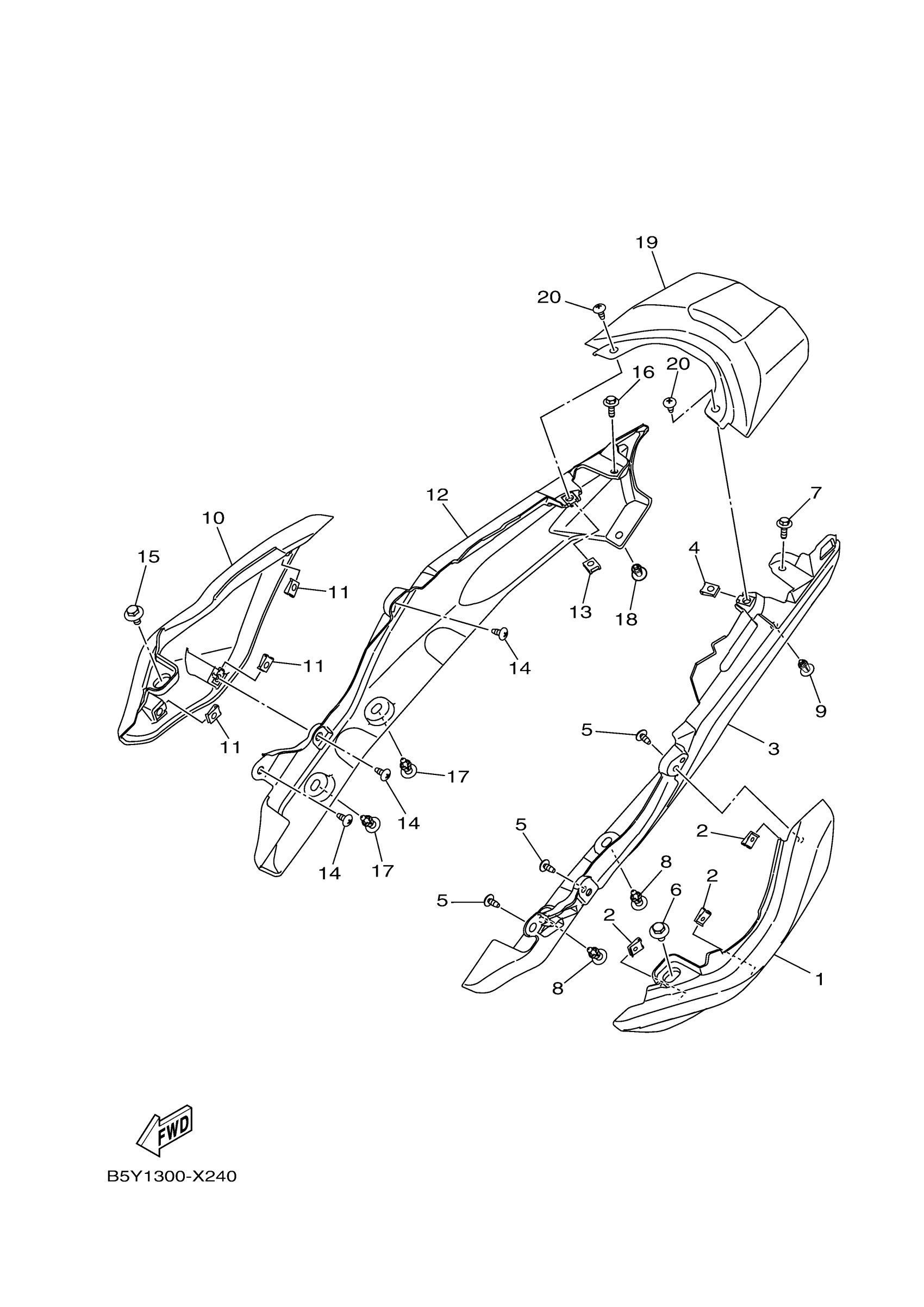

Yamaha MT10NGY (MT10) B5Y20 2022 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

B5Y-21711-00-P0

Unavailable

2

NUT, SPRING(1YT)

90183-05042-00

$5.60

3

COVER, SIDE 3

B5Y-21731-00-00

$30.99

4

NUT, SPRING(1YT)

90183-05042-00

$5.60

5

SCREW, TRUSS TAP.

97707-50012-00

$4.63

6

BOLT

90109-06202-00

$7.49

7

BOLT, WITH WASHER(3RB)

90119-05193-00

$2.19

8

RIVET

90269-07007-00

$4.08

9

RIVET

90269-06019-00

$3.18

10

COVER, SIDE 2

B5Y-21721-00-P0

$60.99

11

NUT, SPRING(1YT)

90183-05042-00

$5.60

12

COVER, SIDE 4

B5Y-21741-00-00

$39.99

13

NUT, SPRING(1YT)

90183-05042-00

$5.60

14

SCREW, TRUSS TAP.

97707-50012-00

$4.63

15

BOLT

90109-06202-00

$7.49

16

BOLT, WITH WASHER(3RB)

90119-05193-00

$2.19

17

RIVET

90269-07007-00

$4.08

18

RIVET

90269-06019-00

$3.18

19

COVER, SIDE 5

B5Y-2171E-00-00

Unavailable

20

SCREW, TRUSS TAP.

97707-50012-00

$4.63
