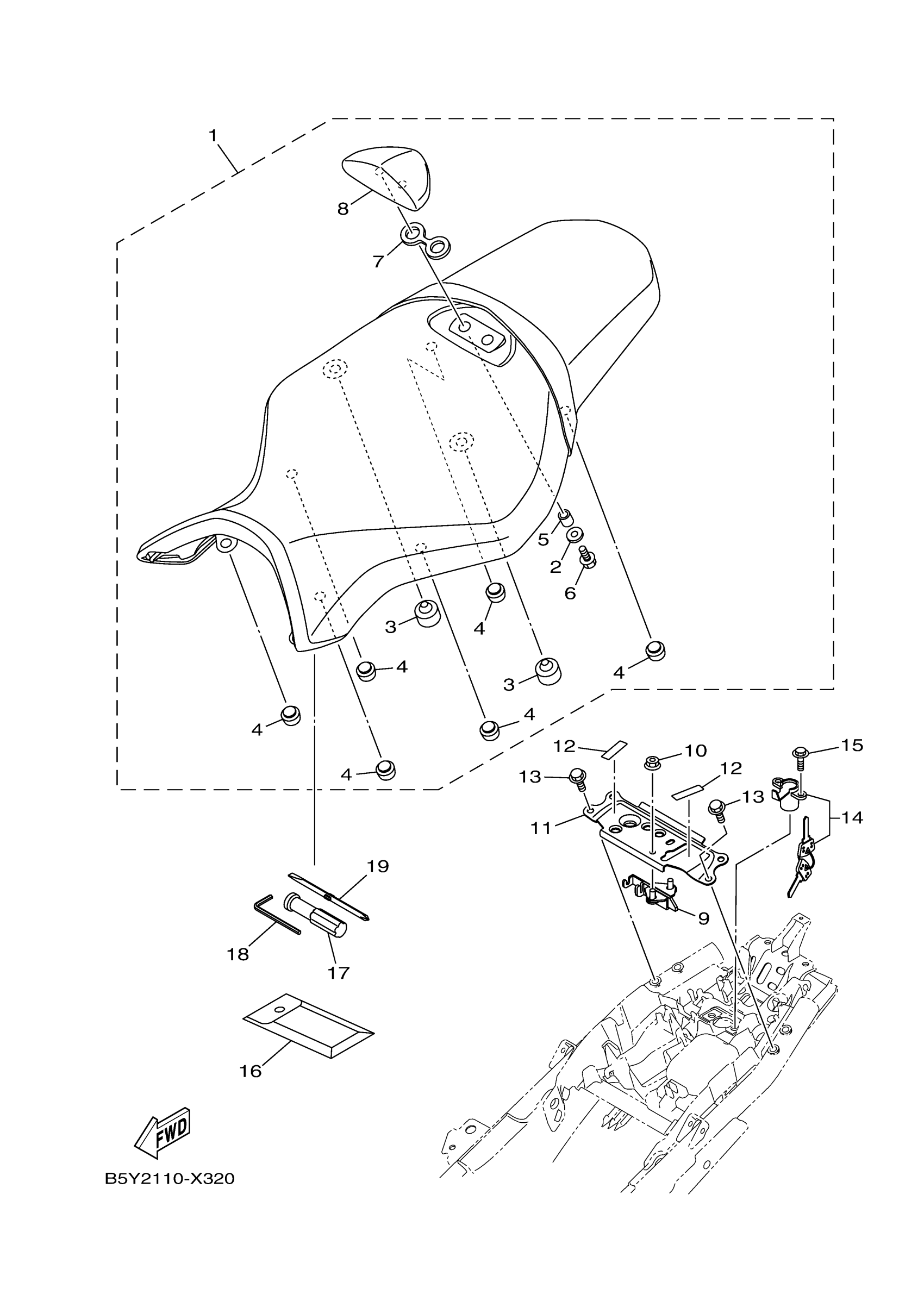

Yamaha MT10NGY (MT10) B5Y20 2022 SEAT Diagram

#

Description
Price

1

DOUBLE SEAT ASSY

B5Y-24730-00-00

$335.99

2

WASHER, PLATE

90201-06085-00

$3.02

3

STOPPER, MAIN STAND

4GL-27114-00-00

Unavailable

4

STOPPER, MAIN STAND

157-27114-00-00

$9.99

5

COLLAR

90387-067V1-00

Unavailable

6

BOLT, FLANGE

95817-06020-00

$3.81

7

SEAL 2

B67-28429-00-00

$1.96

8

SEAT BACK ASSY

BW8-24790-01-00

$76.99

9

SEAT LOCK ASSY

4BP-24780-00-00

$97.99

10

NUT, FLANGE

95702-06500-00

$2.39

11

BRACKET, SEAT LOCK

B67-2478X-00-00

$34.99

12

SEAL 2

3P6-28228-00-00

$9.99

13

BOLT, FLANGE

95022-06016-00

$3.62

14

ROTOR SET

1RC-W2470-00-00

$73.99

15

BOLT, FLANGE DEEP RECESS

95E32-06014-00

$0.43

16

TOOL KIT

B67-28100-01-00

Unavailable

17

GRIP, DRIVER

2H7-28151-00-00

Unavailable

18

WRENCH, HEXAGON 8

23P-28164-00-00

Unavailable

19

DRIVER

137-28152-00-00

Unavailable
