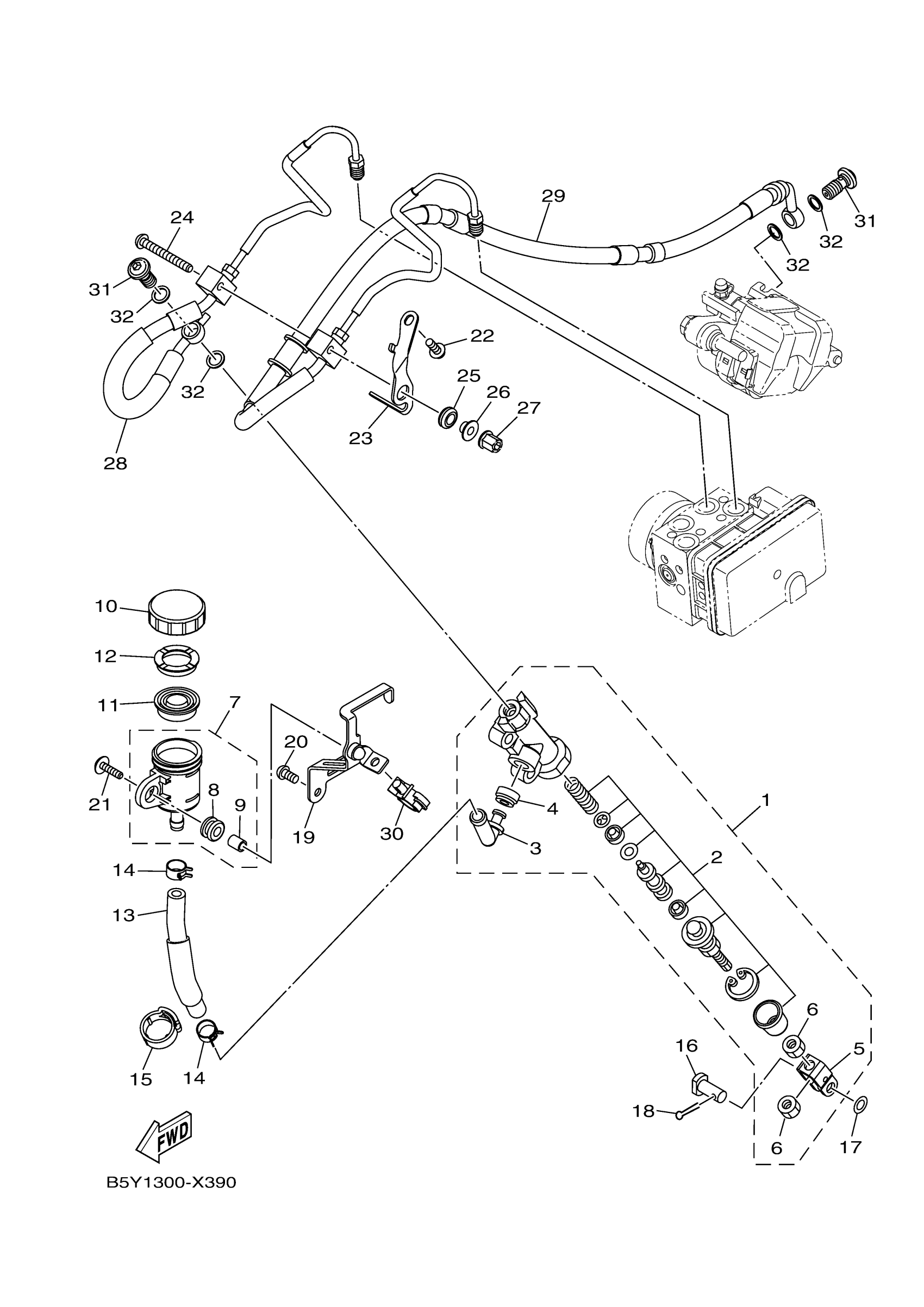

Yamaha MT10NGY (MT10) B5Y20 2022 REAR MASTER CYLINDER Diagram

#

Description
Price

1

RR. MASTER CYLINDE

56P-2583V-01-00

Unavailable

2

CYLINDER KIT, MASTER

56P-25808-50-00

$103.99

3

JOINT

2D1-2582A-01-00

$5.49

4

O-RING

4BP-2585F-01-00

Unavailable

5

JOINT

4BP-27222-02-00

$29.99

6

NUT

90170-08010-00

$8.49

7

TANK, RESERVOIR

B5Y-25894-00-00

$62.99

8

GROMMET

5SL-26326-00-00

Unavailable

9

COLLAR

5SL-26277-00-00

Unavailable

10

CAP, RESERVOIR

B5Y-25852-00-00

$9.49

11

DIAPHRAGM, RESERVOIR

B5Y-25854-00-00

$19.99

12

BUSH,DIAPHRAGM

B5Y-25855-00-00

$35.99

13

HOSE, RESERVOIR

B67-25895-00-00

Unavailable

14

CLIP

90467-120A3-00

$7.49

15

CLAMP

90464-16001-00

$2.39

16

PIN, CLEVIS

90240-08005-00

Unavailable

17

WASHER, PLATE

90201-08066-00

Unavailable

18

PIN, COTTER (648)

91490-20015-00

Unavailable

19

BRACKET, RESERVE TANK

B5Y-21228-00-00

Unavailable

20

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

21

BOLT,HEX. SOCKET BUTTON

90111-05026-00

Unavailable

22

BOLT, BUTTON HEAD

92017-06016-00

Unavailable

23

STAY 1

B5Y-2122A-00-00

Unavailable

24

BOLT

90109-06N29-00

Unavailable

25

GROMMET

90480-12024-00

Unavailable

26

COLLAR

90387-06142-00

Unavailable

27

NUT

90179-06033-00

Unavailable

28

HOSE, BRAKE 4

B5Y-2581J-00-00

Unavailable

29

HOSE, BRAKE 5

B5Y-2581K-00-00

Unavailable

30

CLAMP

90464-14013-00

Unavailable

31

BOLT, UNION

90401-10172-00

Unavailable

32

GASKET

90430-10005-00

Unavailable
