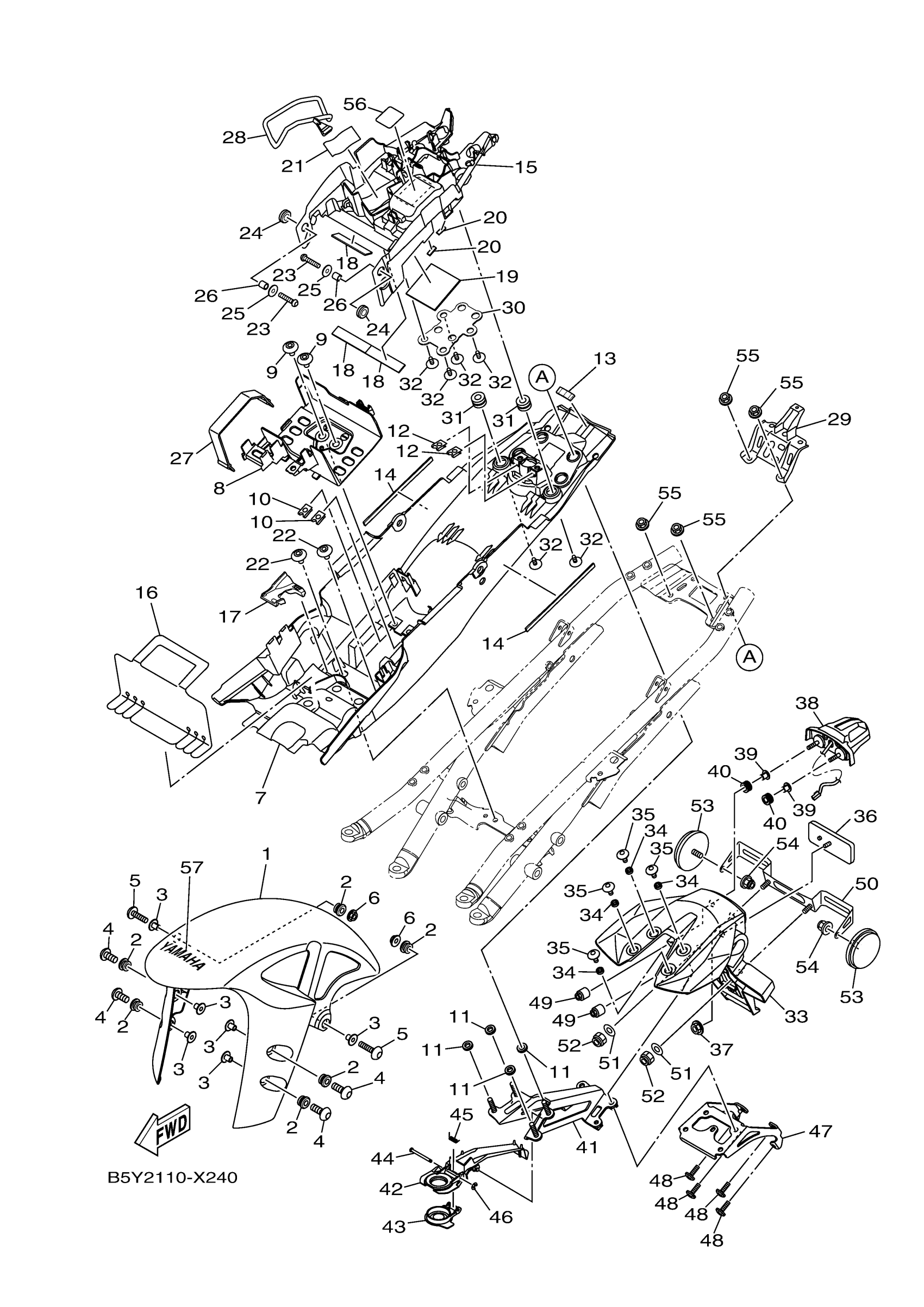

Yamaha MT10NGY (MT10) B5Y20 2022 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

14B-21511-00-P9

$205.99

2

GROMMET(53Y)

90480-12072-00

$8.49

3

COLLAR

90387-06159-00

$8.49

4

BOLT

90111-06043-00

$4.46

5

BOLT

90111-06030-00

$4.41

6

NUT, FLANGE

95702-06500-00

$2.39

7

BOX, BATTERY 1

B5Y-8212B-00-00

Unavailable

8

BOX, BATTERY 2

B5Y-8212C-00-00

Unavailable

9

BOLT

90109-06285-00

$3.61

10

NUT, SPRING(4ES)

90183-06069-00

Unavailable

11

SPACER(2GV)

90560-08326-00

Unavailable

12

NUT, SPRING(4ES)

90183-06069-00

Unavailable

13

DAMPER 1

7TG-2214F-00-00

Unavailable

14

DAMPER 3

1B7-2834E-00-00

Unavailable

15

PLATE 1

B5Y-2162G-00-00

$29.99

16

PROTECTOR

B5Y-21652-00-00

Unavailable

17

COVER

B5Y-2135F-00-00

Unavailable

18

DAMPER 2

B5Y-21486-00-00

Unavailable

19

DAMPER

B5Y-21488-00-00

Unavailable

20

DAMPER 2

B5Y-21639-00-00

Unavailable

21

DAMPER

5H0-8235Y-M0-00

Unavailable

22

BOLT

90109-06285-00

$3.61

23

BOLT, BUTTON HEAD

92012-06030-00

Unavailable

24

GROMMET

90480-13032-00

Unavailable

25

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

26

COLLAR

90387-06108-00

Unavailable

27

BAND, BATTERY

133-82131-00-00

Unavailable

28

BAND, TOOL

3YX-21376-00-00

Unavailable

29

BRACKET, TAILLIGHT

B5Y-2117E-00-00

Unavailable

30

COVER, REAR FENDER 1

B5Y-2163A-00-00

Unavailable

31

GROMET (3X3)

90480-14229-00

Unavailable

32

SCREW, TAPPING

90164-05001-00

Unavailable

33

GUARD, MUD

1RC-21629-01-00

Unavailable

34

COLLAR

90387-06106-00

Unavailable

35

BOLT

90111-06061-00

Unavailable

36

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

37

NUT, S/L FLANGE

95607-05200-00

Unavailable

38

LICENCE LIGHT UNIT ASSY

B67-84745-00-00

Unavailable

39

COLLAR

90387-05042-00

Unavailable

40

GROMMET

90480-11009-00

Unavailable

41

STAY 1

B67-2164F-00-00

Unavailable

42

COVER, REAR FENDER

B67-2163E-01-00

Unavailable

43

CAP, ROTOR

1RC-2465B-01-00

Unavailable

44

PIN

90249-03002-00

Unavailable

45

SPRING, TORSION

90508-09007-00

Unavailable

46

CIRCLIP (604)

93430-02001-00

Unavailable

47

STAY, PLATE

1RC-21682-00-00

Unavailable

48

SCREW, ROUND TAPPING

90160-05012-00

Unavailable

49

WEIGHT

1RC-2622H-00-00

Unavailable

50

BRACKET, LICENSE

1RC-84751-00-00

Unavailable

51

WASHER, PLAIN (646)

92990-06600-00

Unavailable

52

NUT, SELF-LOCKING

95617-06100-00

Unavailable

53

REFLECTOR, REAR 1

449-85131-02-00

Unavailable

54

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

55

NUT, U FLANGE

95604-06200-00

Unavailable

56

LABEL, NOTICE 1

B5Y-2815P-10-00

Unavailable

57

EMBLEM, YAMAHA

99247-00080-00

Unavailable
