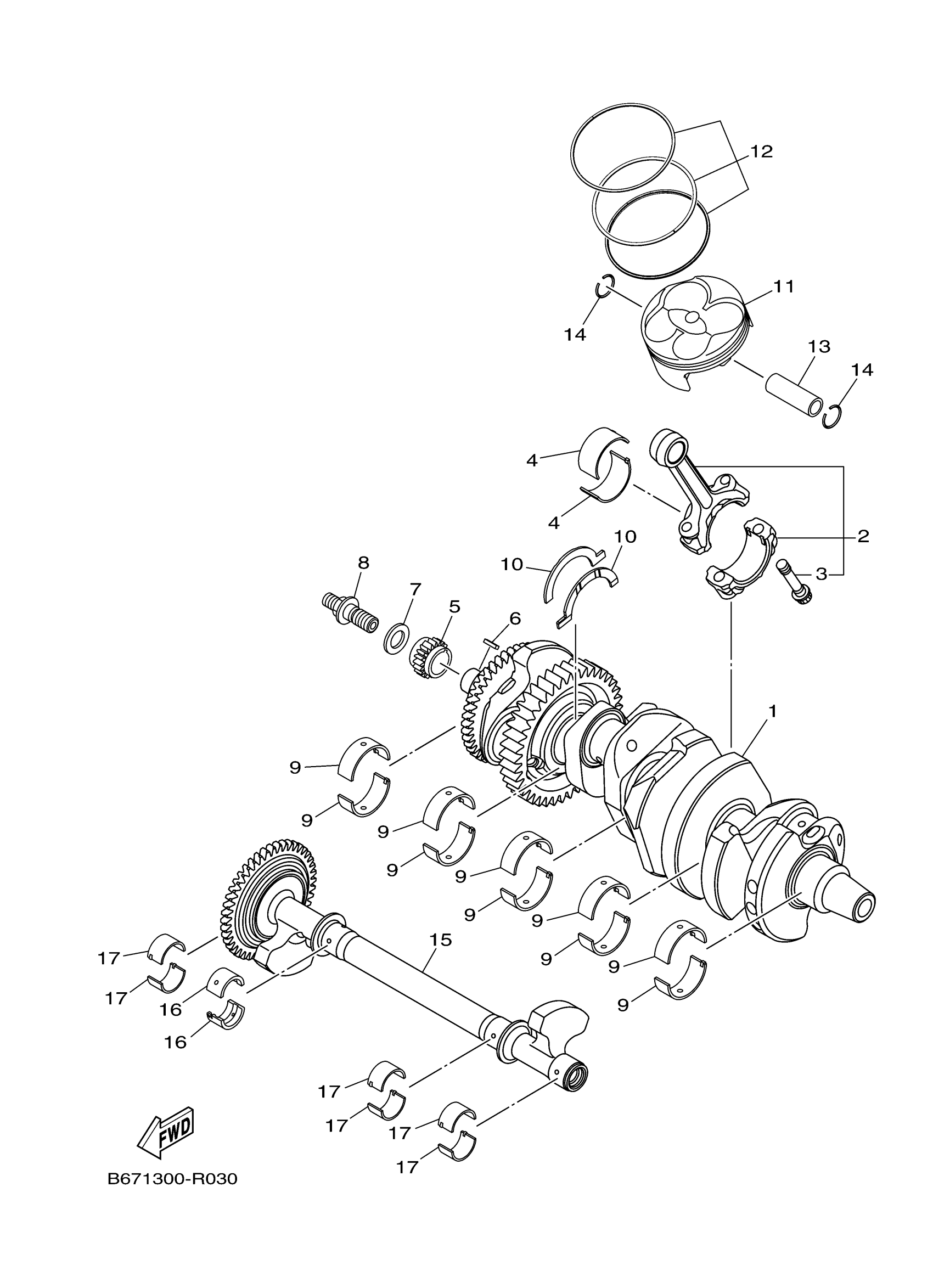

Yamaha MT10NGY (MT10) B5Y20 2022 CRANKSHAFT & PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

B67-11400-00-00

$904.99

2

CONNECTING ROD ASSY

B60-11650-00-00

$182.99

3

BOLT, CONNECTING ROD

5VY-11654-01-00

$16.49

4

PLANE BEARING, CONNECTING ROD

2CR-11656-10-00

$14.49

4

PLANE BEARING, CONNECTING ROD

2CR-11656-20-00

$15.49

4

PLANE BEARING, CONNECTING ROD

2CR-11656-30-00

$15.49

4

PLANE BEARING, CONNECTING ROD

2CR-11656-40-00

$15.49

4

PLANE BEARING, CONNECTING ROD

2CR-11656-50-00

$15.49

5

SPROCKET, CAM CHAI

2CR-11549-00-00

Unavailable

6

KEY STRAIGHT 383124680000

90282-03012-00

$13.49

7

WASHER, PLATE

90201-13021-00

$3.61

8

BOLT

2CR-12157-00-00

$19.99

9

PLANE BEARING, CRA

2CR-11416-00-00

$14.49

9

PLANE BEARING, CRA

2CR-11416-10-00

$14.49

9

PLANE BEARING, CRA

2CR-11416-20-00

$14.49

9

PLANE BEARING, CRA

2CR-11416-30-00

Unavailable

9

PLANE BEARING, CRA

2CR-11416-40-00

Unavailable

9

PLANE BEARING, CRA

2CR-11416-50-00

Unavailable

9

PLANE BEARING, CRA

2CR-11416-60-00

Unavailable

10

BEARING, THRUST 1

BW8-11426-00-00

Unavailable

11

PISTON (STD)

B67-11631-00-00

Unavailable

12

PISTON RING SET (STD)

2CR-11603-11-00

Unavailable

13

PIN, PISTON

4C8-11633-00-00

Unavailable

14

CIRCLIP

93450-18170-00

Unavailable

15

BALANCER ASSY

2CR-11500-01-00

Unavailable

16

METAL, BALANCE WEI

2CR-11413-00-00

Unavailable

16

METAL, BALANCE WEI

2CR-11413-10-00

Unavailable

16

METAL, BALANCE WEI

2CR-11413-20-00

Unavailable

16

METAL, BALANCE WEI

2CR-11413-30-00

Unavailable

16

METAL, BALANCE WEI

2CR-11413-40-00

Unavailable

16

METAL, BALANCE WEI

2CR-11413-50-00

Unavailable

16

METAL, BALANCE WEI

2CR-11413-A0-00

Unavailable

17

METAL, BALANCE WEIGHT 2

2CR-11423-00-00

Unavailable

17

METAL, BALANCE WEIGHT 2

2CR-11423-10-00

Unavailable

17

METAL, BALANCE WEIGHT 2

2CR-11423-20-00

Unavailable

17

METAL, BALANCE WEIGHT 2

2CR-11423-30-00

Unavailable

17

METAL, BALANCE WEIGHT 2

2CR-11423-40-00

Unavailable

17

METAL, BALANCE WEIGHT 2

2CR-11423-50-00

Unavailable

17

METAL, BALANCE WEIGHT 2

2CR-11423-A0-00

Unavailable
