2021 Yamaha MT10 (MT10ML) Radiator Hose Diagram

← All diagrams

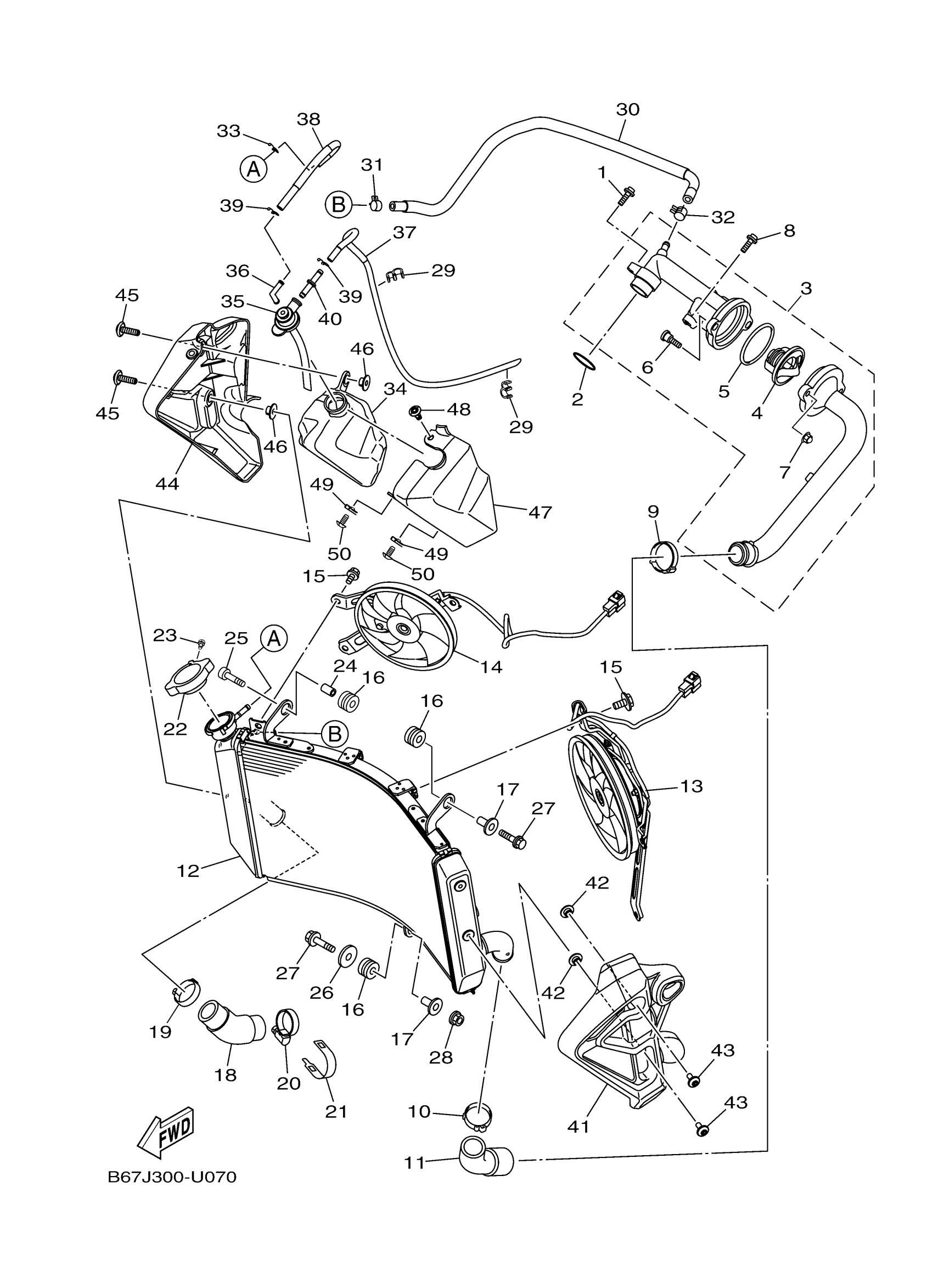

Find the part on the Radiator Hose diagram for your 2021 Yamaha MT10 (MT10ML), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Yamaha MT10 (MT10ML) Radiator Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

1
Out of stock

2

O-RING

93210-26006-00

1
Out of stock

3

THERMOSTAT ASSY

2CR-12410-02-00

1
Out of stock

4

THERMOSTAT ASSY

4FM-12410-01-00

1
Out of stock

5

O-RING (70E)

93210-54534-00

1
Out of stock

6

BOLT

2CR-12615-00-00

—
Out of stock

7

NUT, CROWN

90176-06017-00

1
Out of stock

8

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

1
Out of stock

9

CLIP

90467-350A0-00

1
Out of stock

10

CLIP

90467-320A0-00

1
Out of stock

11

HOSE 3

2CR-12578-00-00

—
Out of stock

12

RADIATOR COMP

B67-12461-00-00

1
Out of stock

13

BLOWER ASSY

B67-12405-00-00

—
Out of stock

14

BLOWER ASSY

B67-12405-10-00

—
Out of stock

15

BOLT, BLOWER HOLDING

5GJ-12675-00-00

1
Out of stock

16

GROMMET (29L)

90480-15363-00

—
Out of stock

17

COLLAR

90387-0614M-00

—
Out of stock

18

HOSE 7

2CR-12551-00-00

—
Out of stock

19

CLIP

90467-320A0-00

1
Out of stock

20

HOSE CLAMP ASSY

90450-35001-00

—
Out of stock

21

COVER 2

5GV-1246E-00-00

—
Out of stock

22

CAP, RADIATOR

B67-12462-11-00

—
Out of stock

23

BOLT, SOCKET

91317-03006-00

—
Out of stock

24

COLLAR

90387-06M19-00

1
Out of stock

25

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

—
Out of stock

26

WASHER, PLATE(36Y)

90201-063J2-00

—
Out of stock

27

BOLT, FLANGE

95817-06030-00

—
Out of stock

28

NUT,SELF-LOCKING

95607-06200-00

—
Out of stock

29

CLAMP(6R8)

90464-10M38-00

—
Out of stock

30

HOSE 8

2CR-12552-00-00

—
Out of stock

31

CLIP(3BM)

90467-10135-00

—
Out of stock

32

CLIP (7K7)

90467-11044-00

—
Out of stock

33

CLIP (16G)

90467-08021-00

—
Out of stock

34

TANK, RECOVERY

B67-21871-00-00

—
Out of stock

35

CAP

3P6-21875-00-00

—
Out of stock

36

ELBOW

26H-21828-00-00

—
Out of stock

37

PIPE, BREATHER

B67-21826-00-00

—
Out of stock

38

PIPE 1

B67-21816-00-00

—
Out of stock

39

CLIP (16G)

90467-08021-00

—
Out of stock

40

JOINT

4XY-14568-00-00

—
Out of stock

41

COVER 1

B67-1246A-00-00

—
Out of stock

42

COLLAR

90387-06170-00

—
Out of stock

43

BOLT,HEX. SOCKET BUTTON

90111-06127-00

—
Out of stock

44

COVER 2

B67-1246E-00-00

—
Out of stock

45

SCREW(4DN)

90149-06302-00

—
Out of stock

46

COLLAR (838-84757-00)

90387-06024-00

—
Out of stock

47

COVER 3

B67-1246F-00-00

—
Out of stock

48

RIVET

90269-06019-00

—
Out of stock

49

NUT, SPRING(1YT)

90183-05042-00

—
Out of stock

50

SCREW, TAPPING

90167-05079-00

—
Out of stock
