2021 Yamaha MT10 (MT10ML) Cylinder Head Diagram

← All diagrams

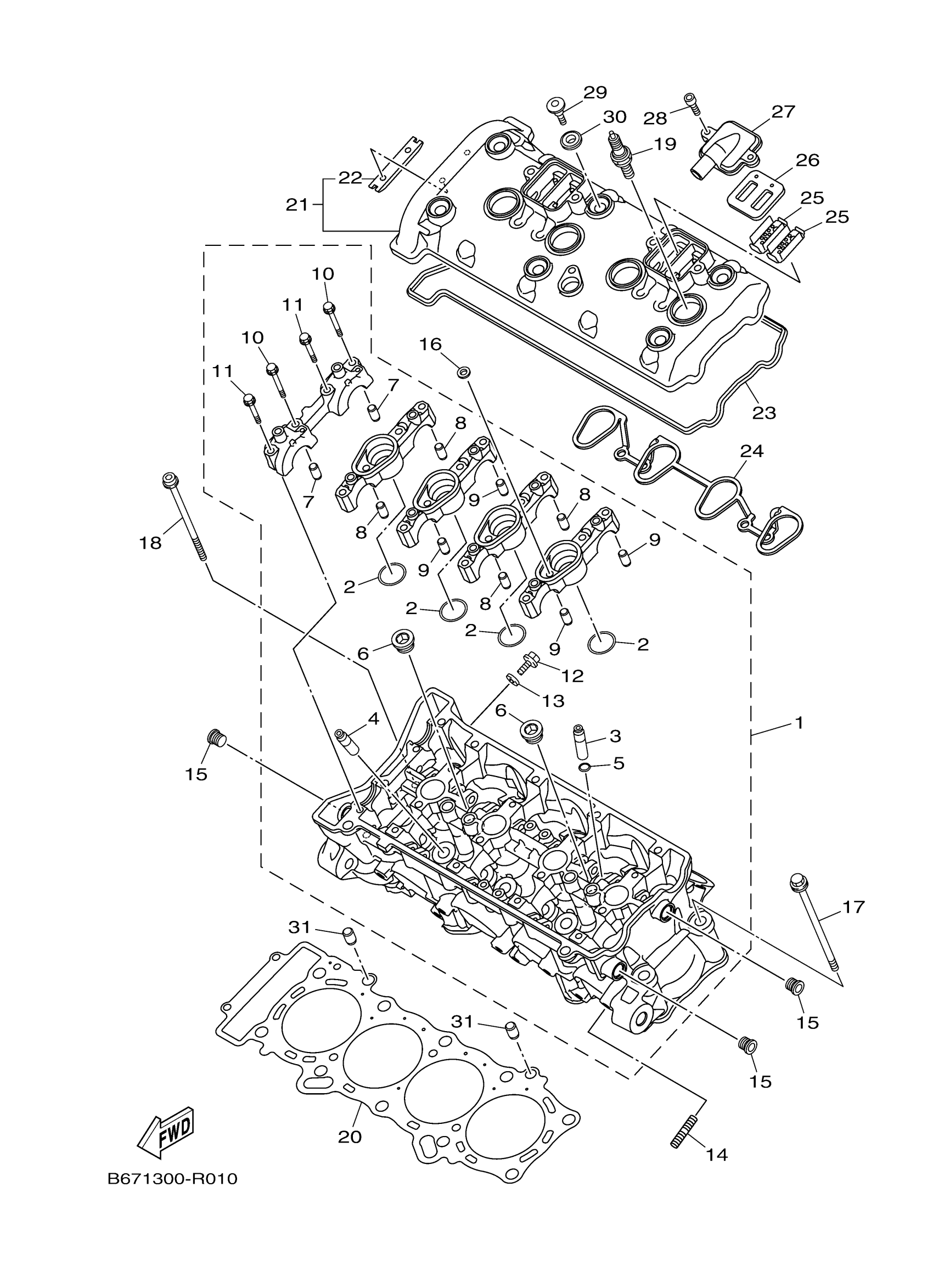

Find the part on the Cylinder Head diagram for your 2021 Yamaha MT10 (MT10ML), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Yamaha MT10 (MT10ML) Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER HEAD ASSY

B67-W1101-08-00

—
Out of stock

2

O-RING(36Y)

93210-26658-00

1
Out of stock

3

GUIDE, VALVE 1

2CR-11133-10-00

1
Out of stock

4

GUIDE, VALVE 2

2CR-11134-10-00

1
Out of stock

5

CIRCLIP(1WG)

93440-10153-00

1
Out of stock

6

PLUG, STRAIGHT SCREW

90340-18002-00

1
Out of stock

7

PIN, DOWEL(3XW)

91808-16023-00

1
Out of stock

8

PIN, DOWEL(3XW)

91808-16023-00

1
Out of stock

9

PIN, DOWEL(3XW)

91808-16023-00

1
Out of stock

10

BOLT, WASHER BASED

90105-06027-00

1
Out of stock

11

BOLT, FLANGE

90105-06209-00

1
Out of stock

12

BOLT, FLANGE

95022-06012-00

1
Out of stock

13

GASKET 256113960000

90430-06014-00

—
Out of stock

14

BOLT, STUD

95612-08615-00

—
Out of stock

15

PLUG, STRAIGHT SCREW

90340-12014-00

1
Out of stock

16

GASKET (4V2)

90430-06166-00

—
Out of stock

17

BOLT, WITH WASHER

90119-09016-00

—
Out of stock

18

BOLT, HEXAGON SOCKET HEAD

90110-06315-00

—
Out of stock

19

PLUG, SPARK (NGK LMAR9E-J)

LMA-R9EJ0-00-00

1
Out of stock

20

GASKET, CYLINDER H

2CR-11181-00-00

—
Out of stock

21

COVER, CYLINDER HEAD 1

B67-11191-01-00

—
Out of stock

22

GUIDE, STOPPER 2

5BE-12241-01-00

—
Out of stock

23

GASKET, HEAD COVER

2CR-11193-00-00

—
Out of stock

24

GASKET, HEAD COVER

2CR-11194-00-00

—
Out of stock

25

PLATE

5VY-1482K-00-00

—
Out of stock

26

REED VALVE ASSY

5SL-14890-10-00

—
Out of stock

27

CAP, CASE

14B-14899-01-00

—
Out of stock

28

BOLT,SOCKET HEAD

91314-06020-00

—
Out of stock

29

BOLT(4BP)

90109-066F0-00

—
Out of stock

30

RUBBER, MOUNT 1

5VY-1111G-00-00

—
Out of stock

31

PIN, DOWEL(3VD)

99530-10114-00

—
Out of stock
