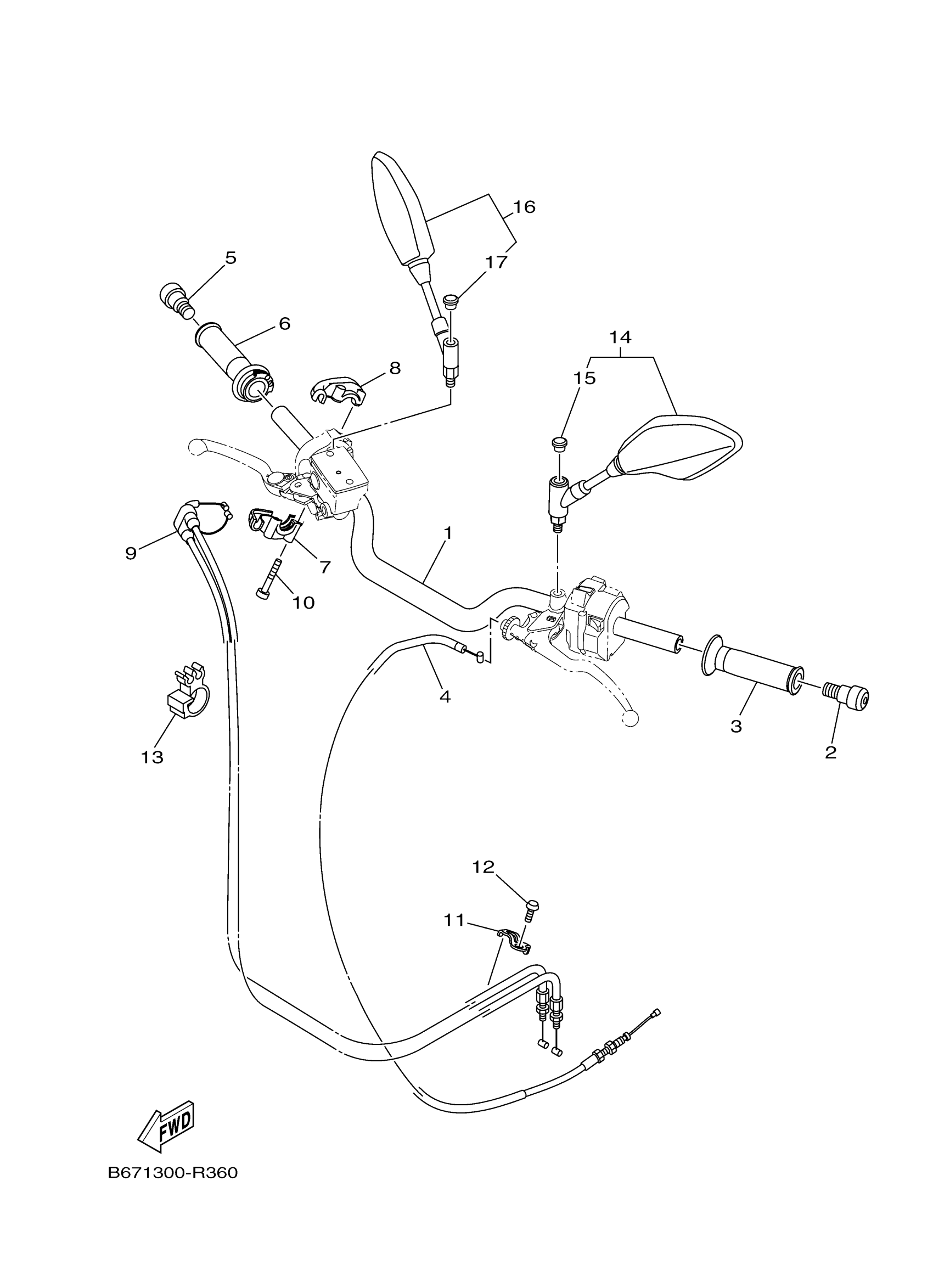

Yamaha MT10LGY (MT10) B67T 2020 STEERING HANDLE & CABLE Diagram

#

Description
Price

1

HANDLEBAR

B67-26111-00-00

$288.17

2

END, GRIP

5GJ-26246-00-00

$21.94

3

GRIP

4YR-26241-03-00

$8.66

4

WIRE, CLUTCH

B67-26335-01-00

Unavailable

5

END, GRIP

5GJ-26246-00-00

$21.94

6

GRIP ASSY

4YR-26240-03-00

$23.62

7

CAP, GRIP UPPER

1WS-26281-00-00

$9.70

8

CAP, GRIP UNDER

1WS-26282-00-00

$11.48

9

THROTTLE CABLE ASSY

B67-26302-00-00

Unavailable

10

BOLT, SOCKET

91317-05040-00

$1.82

11

CLAMP, WIRE

2CR-2627E-00-00

$5.33

12

BOLT, BUTTON HEAD(3JP)

92014-06012-00

$2.31

13

CLAMP

90464-16023-00

$2.82

14

REAR VIEW MIRROR ASSY (LEFT)

B67-26280-01-00

$73.32

15

CAP

5PS-26133-20-00

$5.00

16

REAR VIEW MIRROR ASSY (RIGHT)

B67-26290-01-00

Unavailable

17

CAP

5PS-26133-20-00

$5.00
