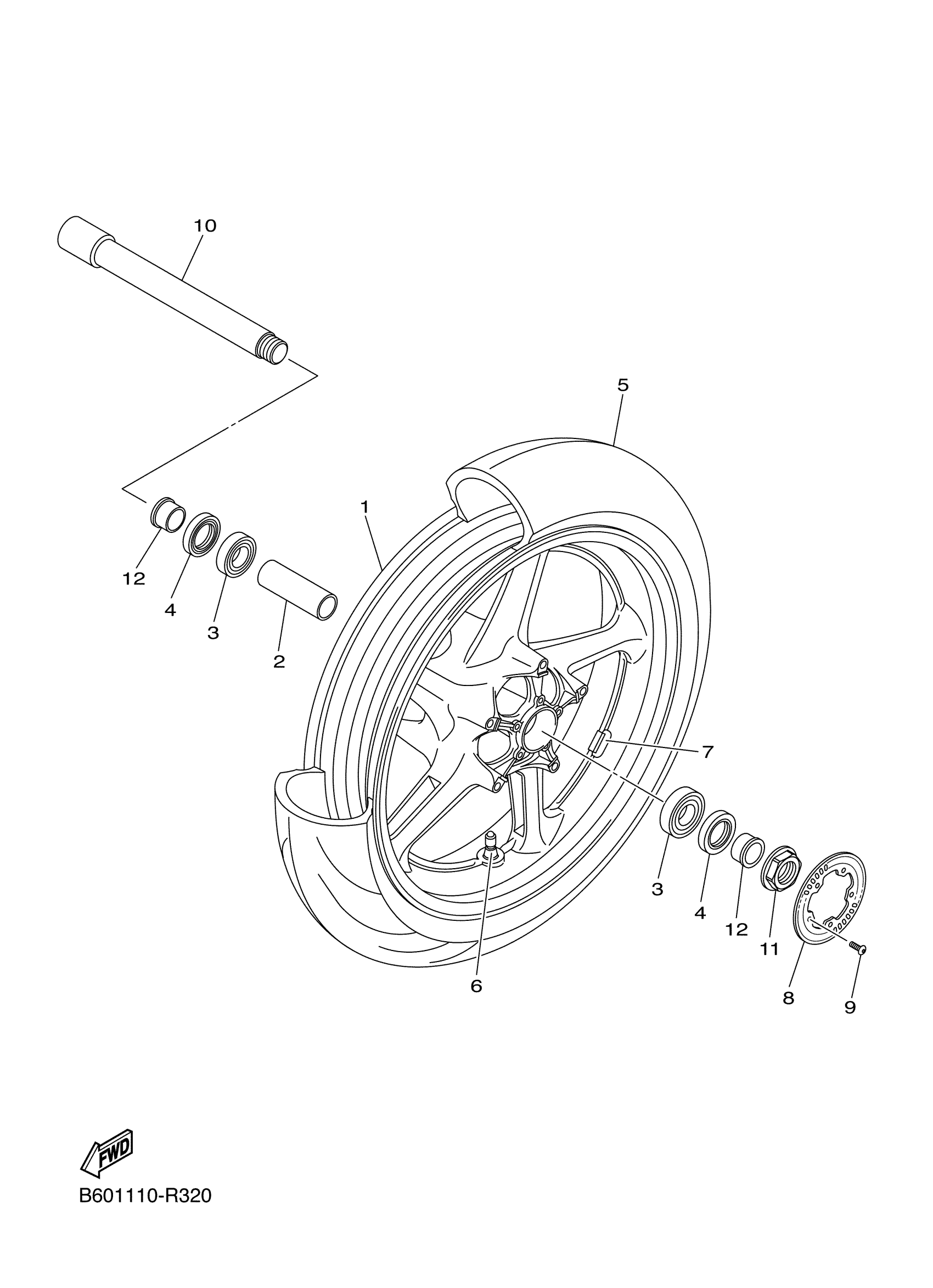

Yamaha MT10LGY (MT10) B67T 2020 FRONT WHEEL Diagram

#

Description
Price

1

CAST WHEEL, FRONT

B60-25168-00-98

$480.16

2

SPACER, BEARING

B60-25117-00-00

$32.35

3

BRG,R-B 6005 47MM 85G KY

93306-00507-00

$34.68

4

OIL SEAL

93106-31001-00

$5.50

5

TIRE (120/70ZR17M/C 58W)

94112-17137-00

Unavailable

6

VALVE, RIM(2GH)

93900-00030-00

$13.50

7

BALANCER, WHEEL

5MT-25398-00-00

$14.51

7

BALANCER, WHEEL

5MT-25398-10-00

$14.35

7

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

8

ROTOR, SENSOR

1SD-2517G-00-00

Unavailable

9

SCREW

90149-05030-00

$1.99

10

AXLE, WHEEL

2CR-25181-00-00

$71.87

11

NUT

90179-24004-00

$21.57

12

COLLAR

90387-25032-00

$15.68
