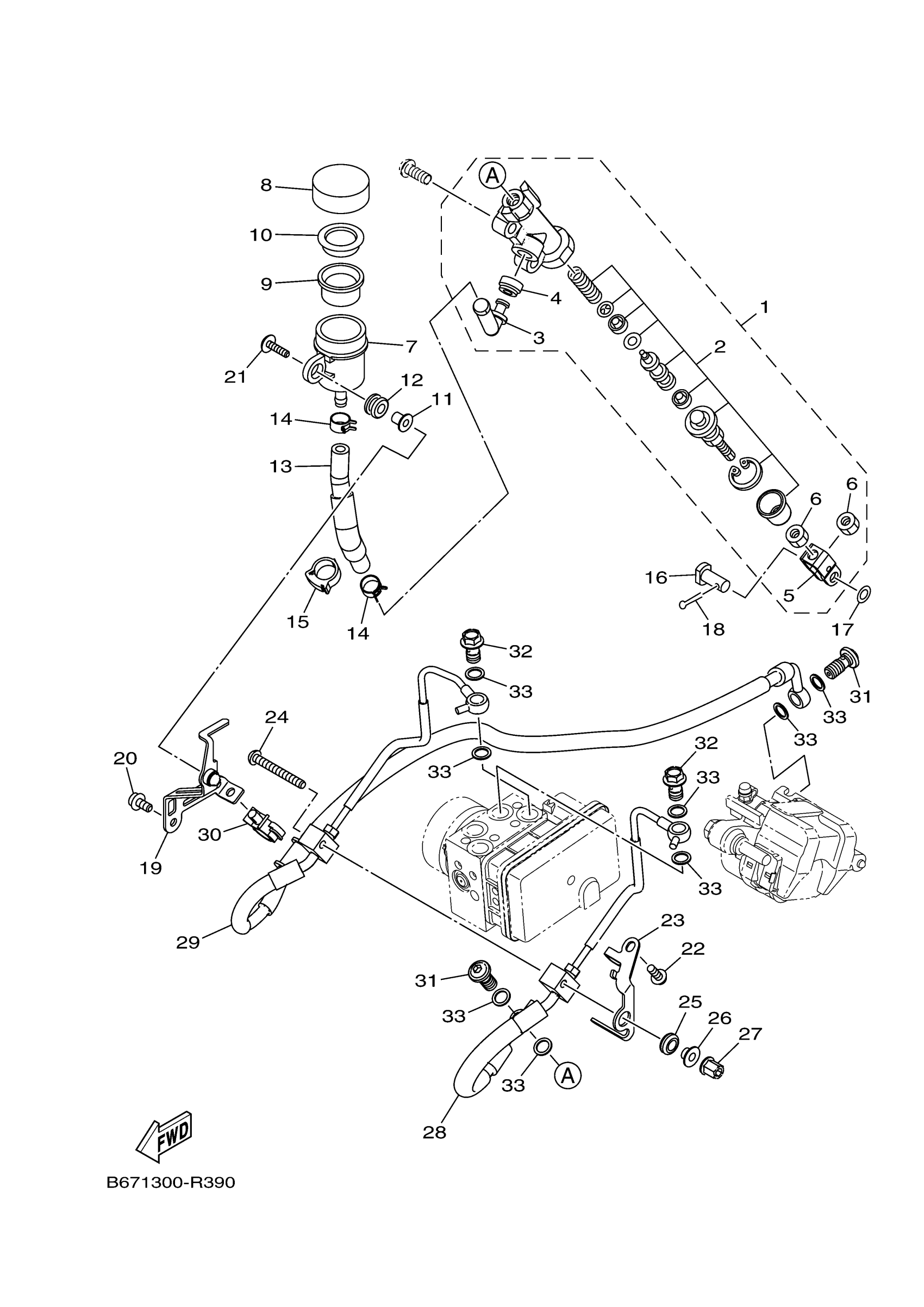

Yamaha MT10LGY (MT10) B67T 2020 REAR MASTER CYLINDER Diagram

#

Description
Price

1

RR. MASTER CYLINDE

56P-2583V-01-00

Unavailable

2

CYLINDER KIT, MASTER

56P-25808-50-00

$103.99

3

JOINT

2D1-2582A-01-00

$5.49

4

O-RING

4BP-2585F-01-00

Unavailable

5

JOINT

4BP-27222-02-00

$29.99

6

NUT

90170-08010-00

$8.49

7

TANK, RESERVOIR

2C0-25894-00-00

$29.99

8

CAP, RESERVOIR

2C0-25852-00-00

$7.99

9

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

$24.99

10

BUSH,DIAPHRAGM

2VN-25855-00-00

$10.99

11

COLLAR

90387-05028-00

$5.60

12

GROMMET

2C0-26326-00-00

$6.99

13

HOSE, RESERVOIR

B67-25895-00-00

Unavailable

14

CLIP

90467-120A3-00

$7.49

15

CLAMP

90464-16001-00

$2.39

16

PIN, CLEVIS

90240-08005-00

Unavailable

17

WASHER, PLATE

90201-08066-00

Unavailable

18

PIN, COTTER (648)

91490-20015-00

Unavailable

19

BRACKET, RESERVE TANK

B67-21228-00-00

Unavailable

20

BOLT(1KT)

90109-060E9-00

Unavailable

21

BOLT,HEX. SOCKET BUTTON

90111-05026-00

Unavailable

22

BOLT, BUTTON HEAD

92017-06016-00

Unavailable

23

STAY 1

B67-2122A-00-00

Unavailable

24

BOLT

90109-06N29-00

Unavailable

25

GROMMET

90480-12024-00

Unavailable

26

COLLAR

90387-06142-00

Unavailable

27

NUT

90179-06033-00

Unavailable

28

HOSE, BRAKE 4

B67-2581J-00-00

Unavailable

29

HOSE, BRAKE 5

B67-2581K-01-00

Unavailable

30

CLAMP

90464-14013-00

Unavailable

31

BOLT, UNION

90401-10172-00

Unavailable

32

BOLT, UNION

90401-10049-00

Unavailable

33

GASKET

90430-10005-00

Unavailable
