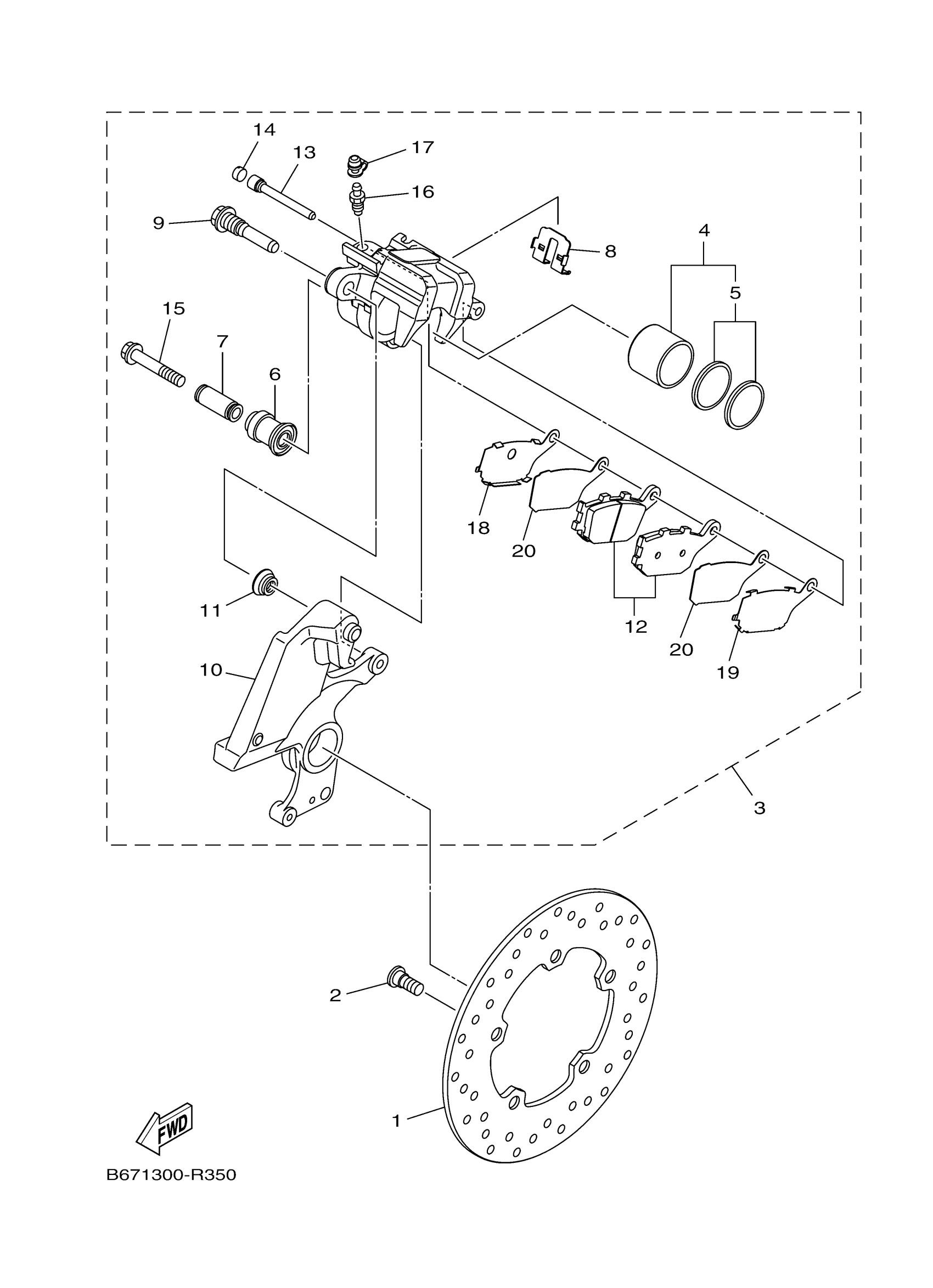

Yamaha MT10LGY (MT10) B67T 2020 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISC, REAR BRAKE 2

5SL-2582W-00-00

$259.99

2

SCREW

90149-08010-00

$8.49

3

CALIPER ASSY, REAR 2

B67-2580W-00-00

$347.99

4

PISTON ASSY, CALIPER

5VY-W0057-00-00

Unavailable

5

CALIPER SEAL KIT

5SL-25803-00-00

$19.99

6

BOOT, CALIPER

5SL-25917-00-00

$15.49

7

SLEEVE, CALIPER

5SL-25838-00-00

$13.49

8

SUPPORT, PAD

5SL-25919-00-00

$6.99

9

PIN, SLIDE

5SL-25914-00-00

$18.49

10

BRACKET, SUPPORT

B67-25921-50-00

Unavailable

11

BOOT, CALIPER

3JD-25917-00-00

$8.99

12

BRAKE PAD KIT 2

5VX-25806-00-00

$53.99

13

PIN, PAD

8CR-25924-00-00

$14.49

14

PLUG

5DH-25916-00-00

$9.99

15

BOLT

5SL-25926-00-00

Unavailable

16

BLEED SCREW KIT

36Y-W0048-00-00

Unavailable

17

BLEED SCREW KIT

36Y-W0048-00-00

Unavailable

18

SHIM, CALIPER

5SL-25827-00-00

Unavailable

19

SHIM, CALIPER

5SL-25827-10-00

Unavailable

20

SHIM, CALIPER

5SL-25828-01-00

Unavailable
