- MT10LGY (MT10) B67T 2020
RADIATOR & HOSE

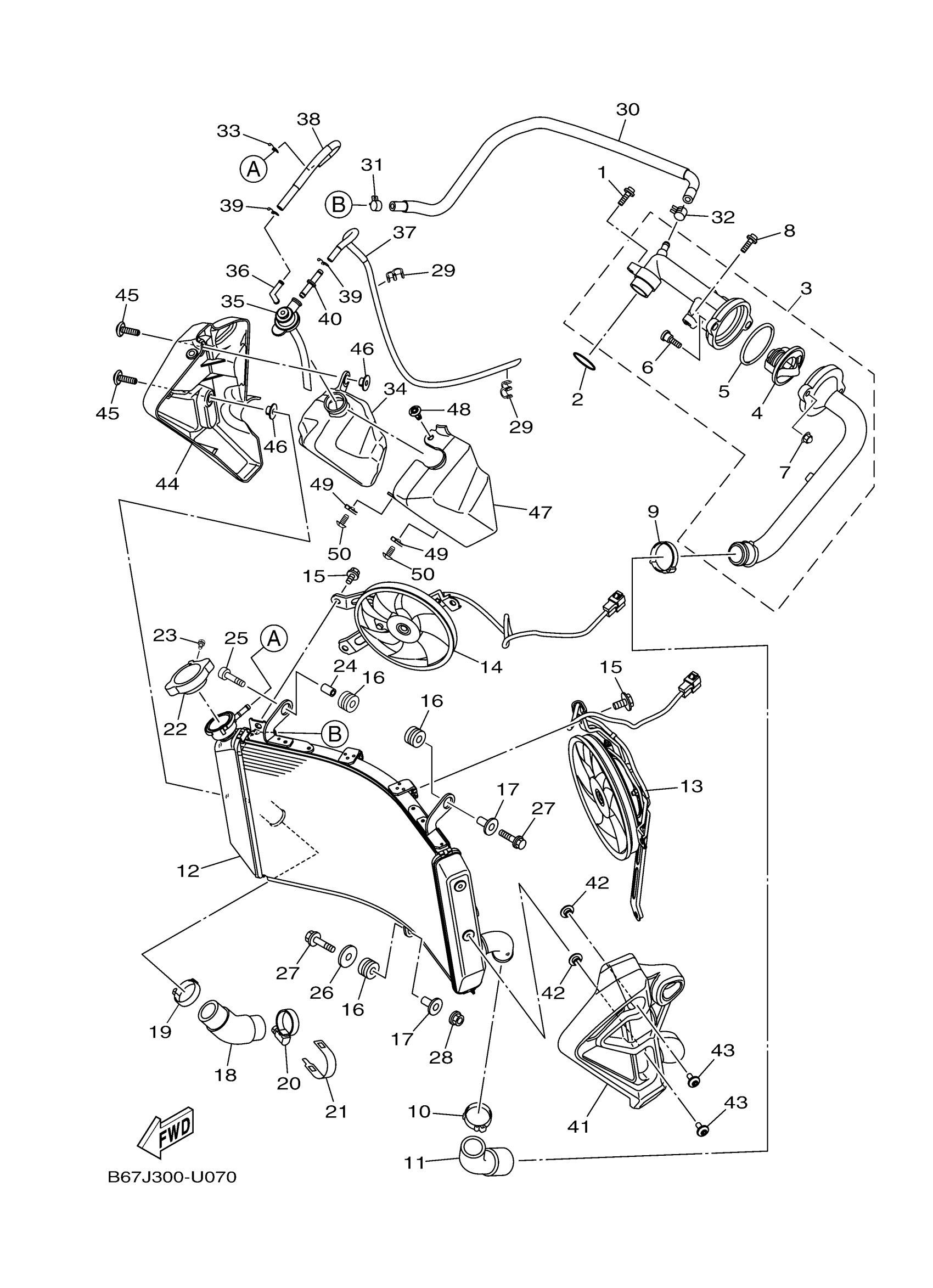

Yamaha MT10LGY (MT10) B67T 2020 RADIATOR & HOSE Diagram
#
5
O-RING (70E)
93210-54534-00
Unavailable
6
BOLT
2CR-12615-00-00
Unavailable
11
HOSE 3
2CR-12578-00-00
Unavailable
13
BLOWER ASSY
B67-12405-00-00
Unavailable
14
BLOWER ASSY
B67-12405-10-00
Unavailable
16
GROMMET (29L)
90480-15363-00
Unavailable
17
COLLAR
90387-0614M-00
Unavailable
18
HOSE 7
2CR-12551-00-00
Unavailable
20
HOSE CLAMP ASSY
90450-35001-00
Unavailable
21
COVER 2
5GV-1246E-00-00
Unavailable
22
CAP, RADIATOR
B67-12462-11-00
Unavailable
23
BOLT, SOCKET
91317-03006-00
Unavailable
24
COLLAR
90387-06M19-00
Unavailable
25
BOLT, HEXAGON SOCKET HEAD(1VJ)
90110-06138-00
Unavailable
26
WASHER, PLATE(36Y)
90201-063J2-00
Unavailable
27
BOLT, FLANGE
95817-06030-00
Unavailable
28
NUT,SELF-LOCKING
95607-06200-00
Unavailable
29
CLAMP(6R8)
90464-10M38-00
Unavailable
30
HOSE 8
2CR-12552-00-00
Unavailable
31
CLIP(3BM)
90467-10135-00
Unavailable
32
CLIP (7K7)
90467-11044-00
Unavailable
33
CLIP (16G)
90467-08021-00
Unavailable
34
TANK, RECOVERY
B67-21871-00-00
Unavailable
35
CAP
3P6-21875-00-00
Unavailable
36
ELBOW
26H-21828-00-00
Unavailable
37
PIPE, BREATHER
B67-21826-00-00
Unavailable
38
PIPE 1
B67-21816-00-00
Unavailable
39
CLIP (16G)
90467-08021-00
Unavailable
40
JOINT
4XY-14568-00-00
Unavailable
41
COVER 1
B67-1246A-00-00
Unavailable
42
COLLAR
90387-06170-00
Unavailable
43
BOLT,HEX. SOCKET BUTTON
90111-06127-00
Unavailable
44
COVER 2
B67-1246E-00-00
Unavailable
45
SCREW(4DN)
90149-06302-00
Unavailable
46
COLLAR (838-84757-00)
90387-06024-00
Unavailable
47
COVER 3
B67-1246F-00-00
Unavailable
48
RIVET
90269-06019-00
Unavailable
49
NUT, SPRING(1YT)
90183-05042-00
Unavailable
50
SCREW, TAPPING
90167-05079-00
Unavailable
