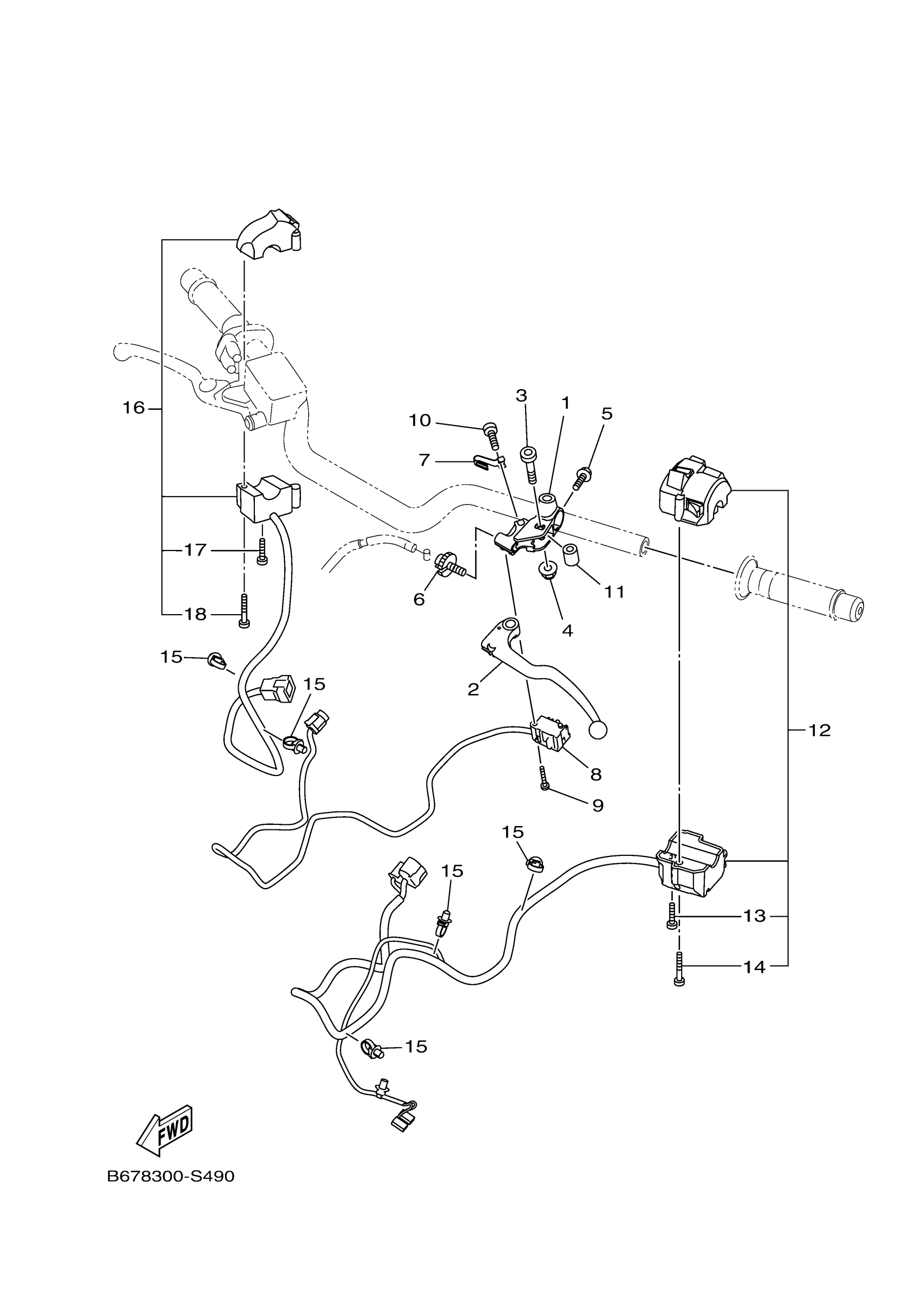

Yamaha MT10LGY (MT10) B67T 2020 HANDLE SWITCH & LEVER Diagram

#

Description
Price

1

HOLDER, LEVER 1

B67-82911-00-00

$52.99

2

LEVER 1

B5U-83912-00-00

$47.99

3

BOLT, LEVER

2C0-83945-00-00

Unavailable

4

NUT,SELF-LOCKING

95607-06200-00

$12.49

5

. BOLT, FLANGE

95027-06020-00

Unavailable

6

BOLT, CABLE ADJUSTING

5LV-83951-00-00

$58.99

7

PLATE, SPRING

4XV-83929-00-00

$11.99

8

SWITCH

B67-82917-01-00

$142.99

9

SCREW, PAN HEAD WITH WASHER

97602-04230-00

Unavailable

10

SCREW, PAN HEAD(6G8)

98507-04010-00

$3.50

11

COLLAR, LEVER 1

5JJ-83913-00-00

$8.99

12

SWITCH, HANDLE 7

B67-83954-01-00

$294.99

13

SCREW, PAN

98507-05040-00

$8.49

14

SCREW, PAN HEAD

98507-05055-00

Unavailable

15

CLAMP

90464-30010-00

$2.17

16

SWITCH, HANDLE 3

B67-83963-00-00

Unavailable

17

SCREW, PAN

98507-05035-00

Unavailable

18

SCREW, PAN

98507-05045-00

Unavailable
