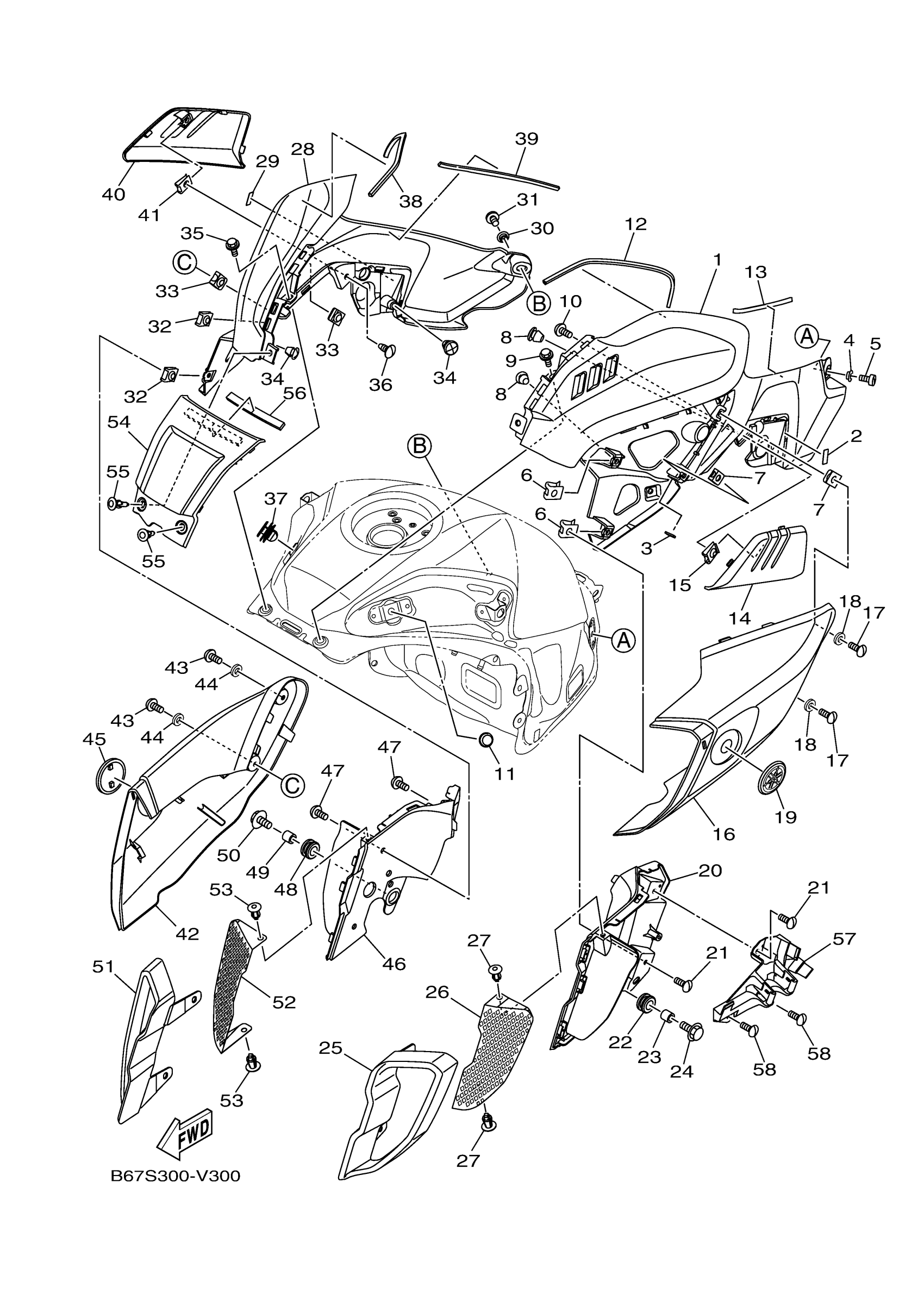

Yamaha MT10LGY (MT10) B67T 2020 FUEL TANK 2 Diagram

#

Description
Price

1

COVER, SIDE 1

B67-24129-00-P4

Unavailable

2

PROTECTOR 1

1S4-2476U-00-00

$2.29

3

DAMPER, PLATE

90520-01001-00

$8.49

4

COLLAR

90387-05035-00

$7.49

5

SCREW, BIND

98902-05008-00

$1.70

6

NUT, SPRING(1YT)

90183-05042-00

$5.60

7

NUT, SPRING

90183-050A6-00

$8.49

8

PLUG(1NL)

90338-07180-00

$7.49

9

BOLT, HEXAGON SOCKET HEAD

90110-05014-00

$8.49

10

SCREW, TRUSS TAP.

97707-50012-00

$4.63

11

RIVET

90269-09006-00

$2.17

12

DAMPER

4C8-21746-00-00

$2.29

13

DAMPER, LOCATING 4

5YU-2177N-00-00

$2.13

14

MOLE 1

B67-28345-00-00

$11.49

15

NUT, SPRING(1YT)

90183-05042-00

$5.60

16

SCOOP, AIR 1

B67-2137W-00-P1

Unavailable

17

BOLT,HEX. SOCKET BUTTON

90111-05021-00

Unavailable

18

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

19

EMBLEM

1RC-2413B-02-00

Unavailable

20

STAY, SIDE COVER 1

B67-2172E-00-P1

Unavailable

21

SCREW, TRUSS TAP.

97707-50014-00

Unavailable

22

GROMMET

90480-14003-00

Unavailable

23

COLLAR

90387-06260-00

Unavailable

24

BOLT, FLANGE

95817-06016-00

Unavailable

25

CAP 1

B67-27475-00-P2

Unavailable

26

GRILL, AIR INTAKE 1

B67-2837N-00-00

Unavailable

27

RIVET

90269-06019-00

Unavailable

28

COVER, SIDE 2

B67-24139-00-P4

Unavailable

29

PROTECTOR 1

1S4-2476U-00-00

$2.29

30

COLLAR

90387-05035-00

$7.49

31

SCREW, BIND

98902-05008-00

$1.70

32

NUT, SPRING(1YT)

90183-05042-00

$5.60

33

NUT, SPRING

90183-050A6-00

$8.49

34

PLUG(1NL)

90338-07180-00

$7.49

35

BOLT, HEXAGON SOCKET HEAD

90110-05014-00

$8.49

36

SCREW, TRUSS TAP.

97707-50012-00

$4.63

37

RIVET

90269-09006-00

$2.17

38

DAMPER

4C8-21746-00-00

$2.29

39

DAMPER, LOCATING 4

5YU-2177N-00-00

$2.13

40

MOLE 2

B67-28346-00-00

Unavailable

41

NUT, SPRING(1YT)

90183-05042-00

$5.60

42

SCOOP, AIR 2

B67-2137X-00-P1

Unavailable

43

BOLT,HEX. SOCKET BUTTON

90111-05021-00

Unavailable

44

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

45

EMBLEM

1RC-2413B-02-00

Unavailable

46

STAY, SIDE COVER 2

B67-2174E-00-P1

Unavailable

47

SCREW, TRUSS TAP.

97707-50014-00

Unavailable

48

GROMMET

90480-14003-00

Unavailable

49

COLLAR

90387-06260-00

Unavailable

50

BOLT, FLANGE

95817-06016-00

Unavailable

51

CAP 2

B67-27476-00-P2

Unavailable

52

GRILL, AIR INTAKE 2

B67-2837R-00-00

Unavailable

53

RIVET

90269-06019-00

Unavailable

54

COVER, TANK

B67-241B1-00-P4

Unavailable

55

RIVET

90269-06008-00

Unavailable

56

DAMPER

4B5-2174X-00-00

Unavailable

57

BRACKET 3

B67-2172M-01-00

Unavailable

58

SCREW, TRUSS TAP.

97707-50014-00

Unavailable
