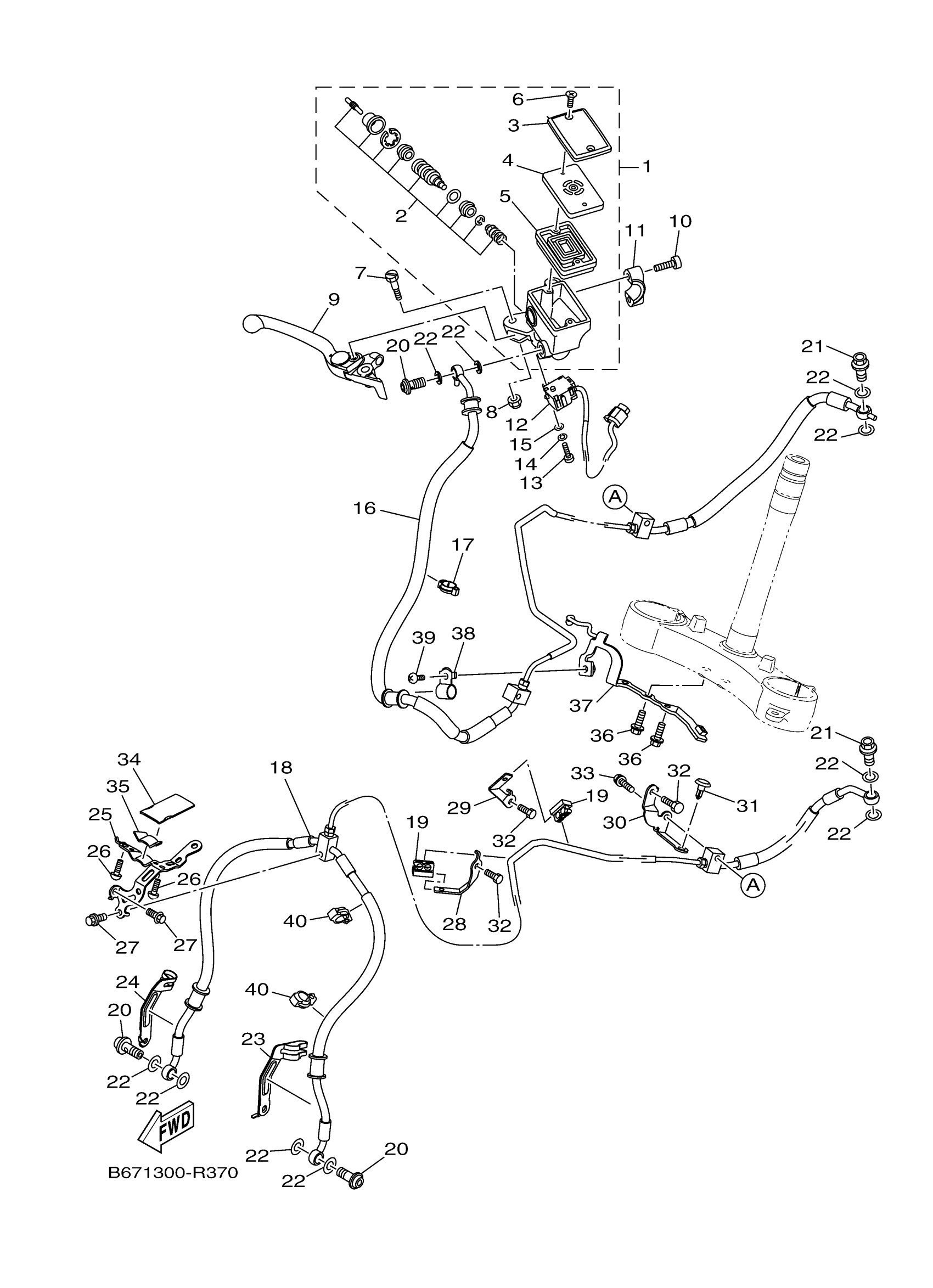

Yamaha MT10LGY (MT10) B67T 2020 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY 2

1XB-2580A-00-00

$252.99

2

CYLINDER KIT, MAST

1WS-25807-00-00

$31.99

3

CAP, RESERVOIR

5VS-25852-00-00

Unavailable

4

BUSH,DIAPHRAGM

5VS-25855-00-00

$16.49

5

GASKET, DIAPHRAGM

20S-25854-00-00

$28.99

6

SCREW

5VS-2589H-00-00

$4.11

7

BOLT, LEVER

5VS-2589F-00-00

$14.49

8

NUT, SELF-LOCKING

95617-06100-00

$8.49

9

LEVER 2

5VS-83922-00-00

$85.99

10

BOLT

5VS-26332-00-00

$4.42

11

BRACKET, MASTER CYLINDER

5VS-25867-00-00

$36.99

12

FRONT STOP SWITCH ASSY

B67-83980-02-00

$134.99

13

SCREW, PAN HEAD

98511-04012-00

Unavailable

14

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

15

WASHER, PLAIN (646)

92990-04600-00

$5.99

16

BRAKE HOSE ASSY

B67-2584A-00-00

Unavailable

17

CLAMP

90464-14003-00

Unavailable

18

HOSE, BRAKE

B67-2584B-00-00

Unavailable

19

CLAMP

90464-07014-00

Unavailable

20

BOLT, UNION

90401-10172-00

Unavailable

21

BOLT, UNION

90401-10049-00

Unavailable

22

GASKET

90430-10005-00

Unavailable

23

HOLDER, BRAKE HOSE

2CR-25875-00-00

Unavailable

24

HOLDER, BRAKE HOSE

2CR-25876-00-00

Unavailable

25

BRACKET

B67-2612E-00-00

Unavailable

26

BOLT, BUTTON HEAD

92017-06016-00

Unavailable

27

BOLT, FLANGE(4DU)

95027-06014-00

Unavailable

28

BRKT 2

2CR-2612K-00-00

Unavailable

29

BRACKET 3

2CR-2612L-00-00

Unavailable

30

BRACKET 4

B67-2612M-00-00

Unavailable

31

RIVET

90269-08005-00

Unavailable

32

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

33

BOLT, FLANGE

95022-06030-00

Unavailable

34

DAMPER

5H0-8235Y-M0-00

Unavailable

35

DAMPER, LOCATING 1

2CR-2622F-00-00

Unavailable

36

BOLT, HEXAGON SOCKET HEAD

90110-06219-00

Unavailable

37

BRACKET, HORN

B67-23377-00-00

Unavailable

38

CLAMP 1

90461-08031-00

Unavailable

39

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

40

CLAMP

90464-12013-00

Unavailable
