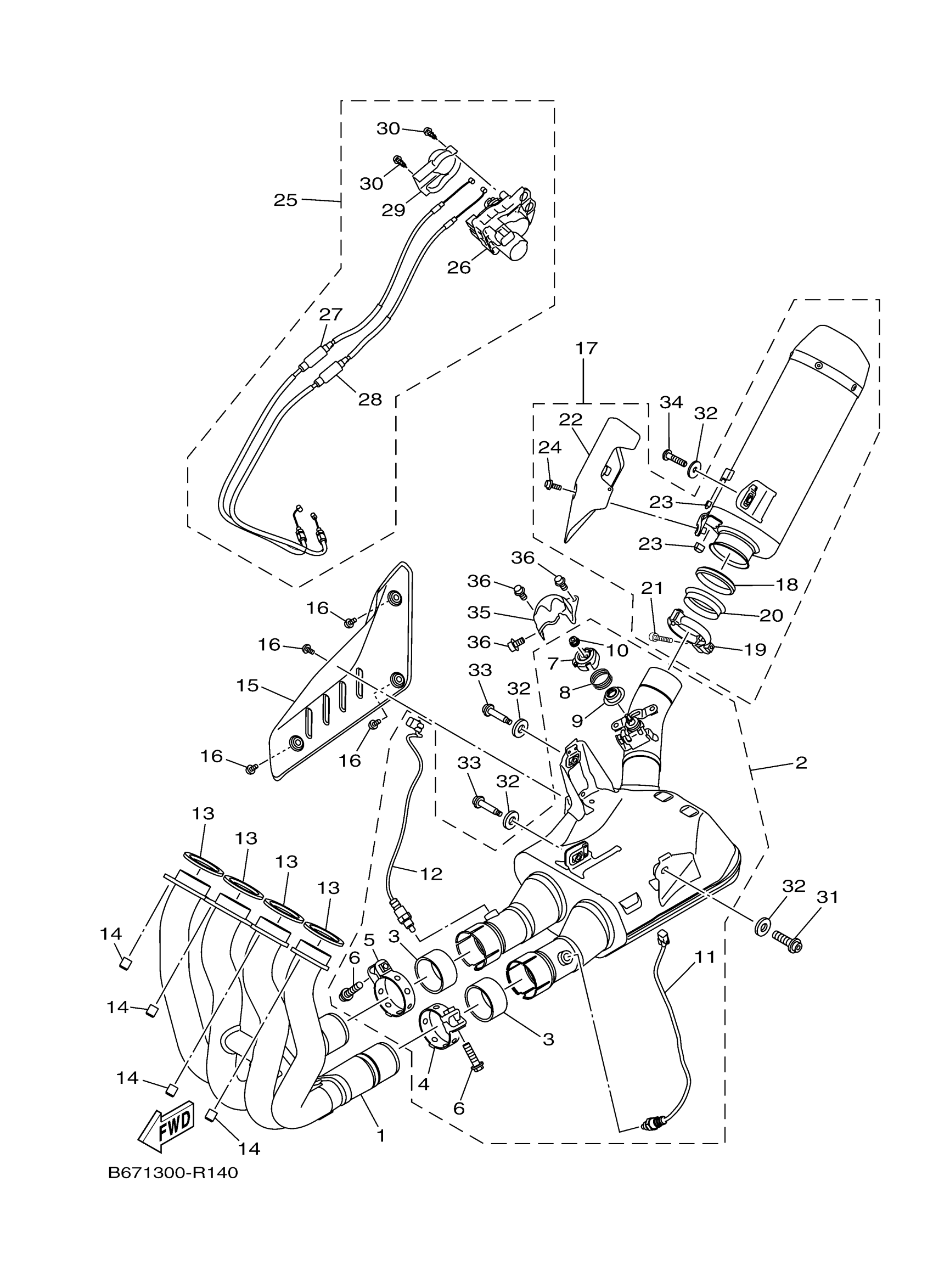

Yamaha MT10LGY (MT10) B67T 2020 EXHAUST Diagram
#
Description
Price
1
EXHAUST PIPE COMP.
B60-14602-00-00
Unavailable
8
SPRING
2C0-14856-00-00
Unavailable
9
SEAT, SPRING
2D1-14843-00-00
Unavailable
10
NUT
90179-06063-00
Unavailable
11
SENSOR, OXYGEN
BW8-8592A-10-00
Unavailable
15
PROTECTOR, MUFFLER 1
B67-14718-00-00
Unavailable
16
BOLT,HEX. SOCKET BUTTON
90111-06164-00
Unavailable
17
SILENCER ASSY
B67-14750-00-00
Unavailable
18
GASKET, EXHAUST PI
2CR-14623-00-00
Unavailable
19
BAND, MUFFLER
2CR-14725-00-00
Unavailable
20
RING, STOPPER
2CR-14618-00-00
Unavailable
21
BOLT, HEXAGON SOCKET HEAD
90110-06343-00
Unavailable
22
PROTECTOR, MUFFLER 2
B67-14728-00-00
Unavailable
23
DAMPER, MUFFLER
5S7-14737-00-00
Unavailable
24
BOLT
B67-14777-00-00
Unavailable
25
SERVO MOTOR COMP
B67-4616A-00-00
Unavailable
26
SERVO MOTOR ASSY
2CR-85820-00-00
Unavailable
27
CABLE, PULLEY 1
B67-1133E-00-00
Unavailable
28
CABLE, PULLEY 2
B67-1133F-00-00
Unavailable
29
COVER, SERVO MOTOR
5VY-85829-01-00
Unavailable
30
SCREW, PANHEAD TAPPING (682)
97780-50514-00
Unavailable
31
BOLT, HEXAGON SOCKET HEAD
90110-08099-00
Unavailable
32
WASHER, PLATE(3DM)
90201-087G2-00
Unavailable
33
BOLT
90109-08238-00
Unavailable
34
BOLT, HEXAGON SOCKET HEAD(38V)
90110-08071-00
Unavailable
35
PROTECTOR, EXHAUST
B67-14826-00-00
Unavailable
36
BOLT, WITH WASHER(1FK)
90119-06115-00
Unavailable
