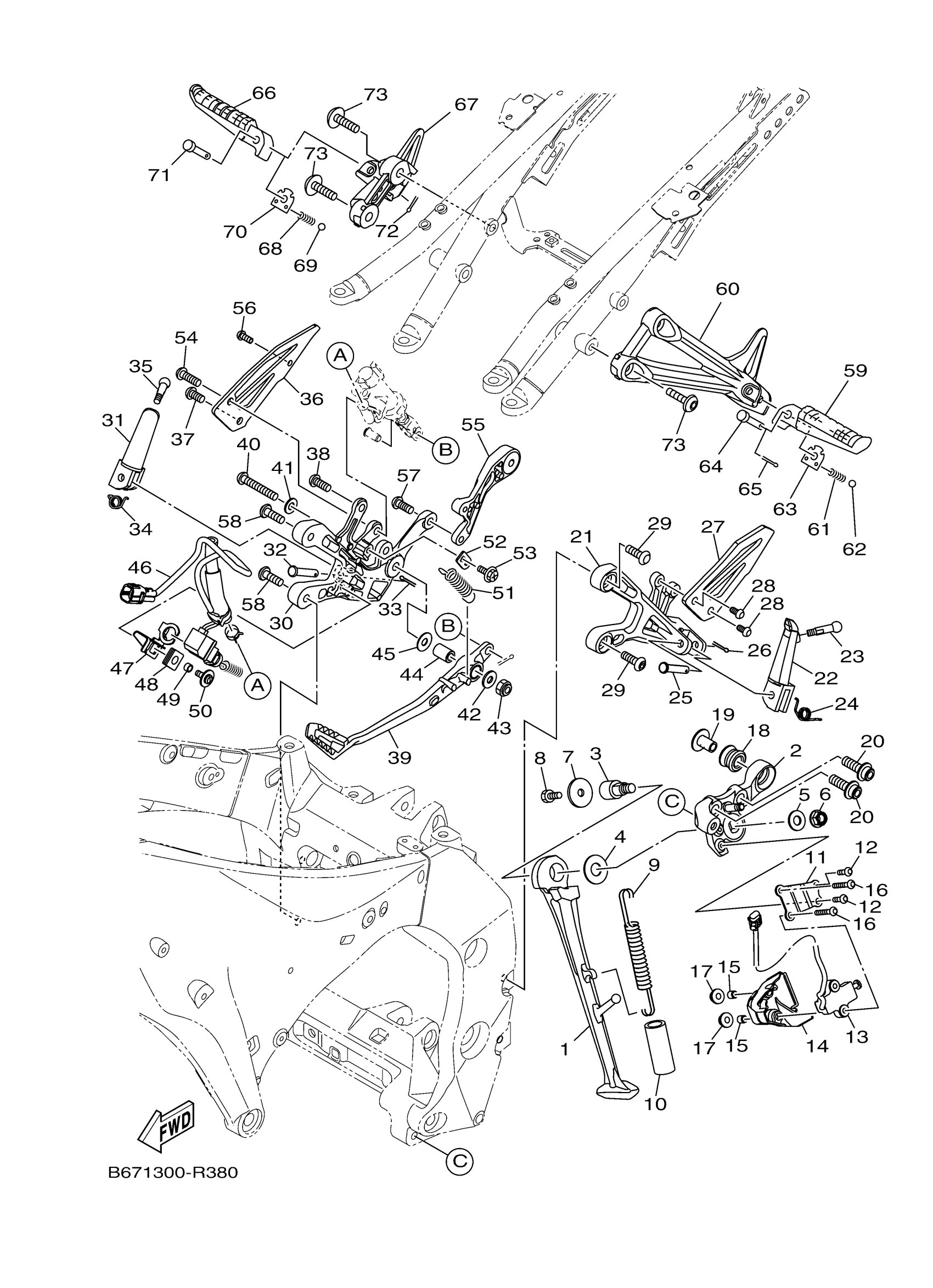

Yamaha MT10KGY (MT10) B67K0 2019 STAND FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

B67-27311-00-00

Unavailable

2

BRACKET, SIDE STAND

B67-27321-00-00

Unavailable

3

GUIDE, SIDE STAND

2C0-27351-00-00

$63.99

4

WASHER, PLATE (22F)

90201-146F9-00

$7.49

5

WASHER, PLATE

90201-10035-00

$4.19

6

NUT, S/L FLANGE

95602-10200-00

$4.82

7

WASHER, PLATE

90201-08050-00

$5.60

8

BOLT, HEXAGON

97017-08020-00

$9.49

9

SPRING, TENSION

90506-20032-00

Unavailable

10

HOSE (L60)

90445-197J2-00

$4.61

11

BRACKET, SENSOR 1

14B-27961-00-00

Unavailable

12

BOLT, BUTTON HEAD

92012-05016-00

$8.49

13

SWITCH, SIDE STAND

2CR-82566-00-00

$81.99

14

COVER ASSY

2CR-27406-00-00

Unavailable

15

COLLAR

90387-05025-00

$7.49

16

BOLT, BUTTON HEAD

92012-05030-00

Unavailable

17

NUT, S/L FLANGE

95607-05200-00

Unavailable

18

DAMPER, MUFFLER

5VY-14747-00-00

Unavailable

19

COLLAR

90387-08021-00

Unavailable

20

BOLT, HEXAGON SOCKET HEAD

90110-10026-00

Unavailable

21

BRACKET 2

B67-27442-00-00

Unavailable

22

FOOTREST

3XV-27451-02-00

Unavailable

23

BOLT

90109-08202-00

Unavailable

24

SPRING, TORSION

90508-18134-00

Unavailable

25

PIN, CLEVIS

91702-08040-00

Unavailable

26

PIN, COTTER

91490-25020-00

Unavailable

27

PLATE 1

B67-27445-00-00

Unavailable

28

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

29

BOLT

90109-085G6-00

Unavailable

30

BRACKET 3

B67-27443-00-00

Unavailable

31

FOOTREST

3XV-27461-02-00

Unavailable

32

PIN, CLEVIS

91702-08040-00

Unavailable

33

PIN, COTTER

91490-25020-00

Unavailable

34

SPRING, TORSION

90508-18135-00

Unavailable

35

BOLT

90109-08202-00

Unavailable

36

PLATE 2

B67-27446-00-00

Unavailable

37

BOLT, BUTTON HEAD

92012-08016-00

Unavailable

38

BOLT, BUTTON HEAD

92012-08020-00

Unavailable

39

PEDAL, BRAKE

B67-27211-00-00

Unavailable

40

BOLT, BUTTON HEAD

92012-08050-00

Unavailable

41

. WASHER

92902-08200-00

Unavailable

42

WASHER, PLATE

90201-08048-00

Unavailable

43

NUT, SELF-LOCKING (3Y2)

90185-08089-00

Unavailable

44

COLLAR

90387-08102-00

Unavailable

45

WASHER 6154275100

90201-08103-00

Unavailable

46

STOP SWITCH ASSY

B67-82530-00-00

Unavailable

47

STAY, STOP SWITCH

B67-2144G-00-00

Unavailable

48

GROMMET(4SV)

90480-12607-00

Unavailable

49

COLLAR

90387-06M16-00

Unavailable

50

SCREW, PANHEAD W/WASHER (22F)

90159-06082-00

Unavailable

51

SPRING, TENSION

90506-23008-00

Unavailable

52

BRACKET 1

B67-27432-00-00

Unavailable

53

BOLT, FLANGE

95812-06010-00

Unavailable

54

BOLT, BUTTON HEAD

92012-08025-00

Unavailable

55

STAY, MUFFLER 3

B67-21487-00-00

Unavailable

56

BOLT, BUTTON HEAD

92012-06014-00

Unavailable

57

BOLT, BUTTON HEAD

92012-08020-00

Unavailable

58

BOLT

90109-085G6-00

Unavailable

59

FOOTREST, REAR 1

3VR-27431-02-00

Unavailable

60

BRACKET 4

1RC-2741L-02-00

Unavailable

61

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

62

BALL

93501-04011-00

Unavailable

63

WASHER, SPECIAL

5VX-27437-00-00

Unavailable

64

PIN, CLEVIS

91702-08040-00

Unavailable

65

PIN, COTTER

91490-25020-00

Unavailable

66

FOOTREST, REAR 2

3VR-27441-02-00

Unavailable

67

BRACKET 5

B67-2742L-01-00

Unavailable

68

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

69

BALL

93501-04011-00

Unavailable

70

WASHER, SPECIAL

5VX-27437-00-00

Unavailable

71

PIN, CLEVIS

91702-08040-00

Unavailable

72

PIN, COTTER

91490-25020-00

Unavailable

73

BOLT, BUTTON

92017-08020-00

Unavailable
