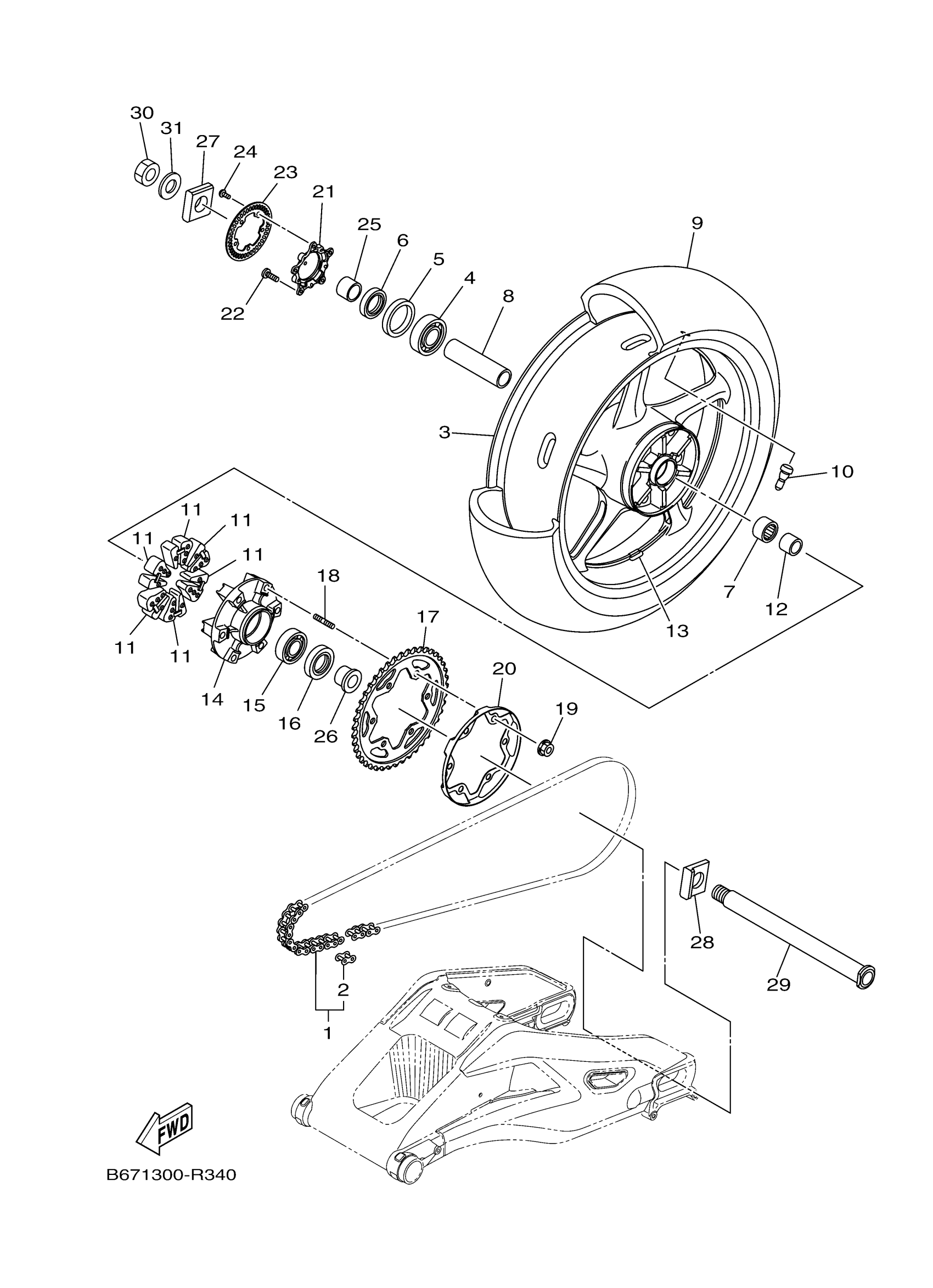

Yamaha MT10KGY (MT10) B67K0 2019 REAR WHEEL Diagram

#

Description
Price

1

SET, CHAIN

94A40-15114-00

$181.99

2

JOINT, CHAIN

94682-5502R-00

$10.49

3

CAST WHEEL, REAR

B60-25338-00-98

Unavailable

4

BEARING

93306-27802-00

$71.99

5

NUT, ADJUSTING

2CR-2538E-00-00

Unavailable

6

OIL SEAL

93106-40001-00

$12.49

7

BEARING

93317-43580-00

$73.99

8

SPACER, BEARING

5PW-25317-00-00

$57.99

9

TIRE (190/55ZR17M/C 75W)

94119-17077-00

Unavailable

10

VALVE, RIM(2GH)

93900-00030-00

$16.99

11

DAMPER

B67-25364-00-00

$15.99

12

COLLAR

90387-28025-00

Unavailable

13

BALANCER, WHEEL

5MT-25398-00-00

$17.49

13

BALANCER, WHEEL

5MT-25398-10-00

$17.49

13

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

14

CLUTCH, HUB

B60-25366-00-00

Unavailable

15

BEARING(3JN)

93306-20531-00

Unavailable

16

OIL SEAL

93106-40013-00

Unavailable

17

SPROCKET, DRIVEN (43T)

B67-25443-00-00

Unavailable

18

BOLT, STUD

90116-10048-00

Unavailable

19

NUT, SELF-LOCKING

90185-10011-00

Unavailable

20

BRACKET 1

B67-2537W-00-00

Unavailable

21

RING, WHEEL RR. 1

B60-2534C-00-00

Unavailable

22

SCREW

90149-05030-00

Unavailable

23

ROTOR, SENSOR

1SD-2517G-00-00

Unavailable

24

SCREW

90149-05030-00

Unavailable

25

COLLAR

90387-28023-00

Unavailable

26

COLLAR

90387-28024-00

Unavailable

27

PULLER, CHAIN 1

5VY-25388-00-00

Unavailable

28

PULLER, CHAIN 2

B67-25389-00-00

Unavailable

29

AXLE, WHEEL

2CR-25381-00-00

Unavailable

30

NUT, SELF-LOCKING

90185-24007-00

Unavailable

31

WASHER, PLATE

90201-25020-00

Unavailable
